Laotie Sr10 Electric Scooter User Manual

User Manual
SR10 Electric Scooter

Product Introduction

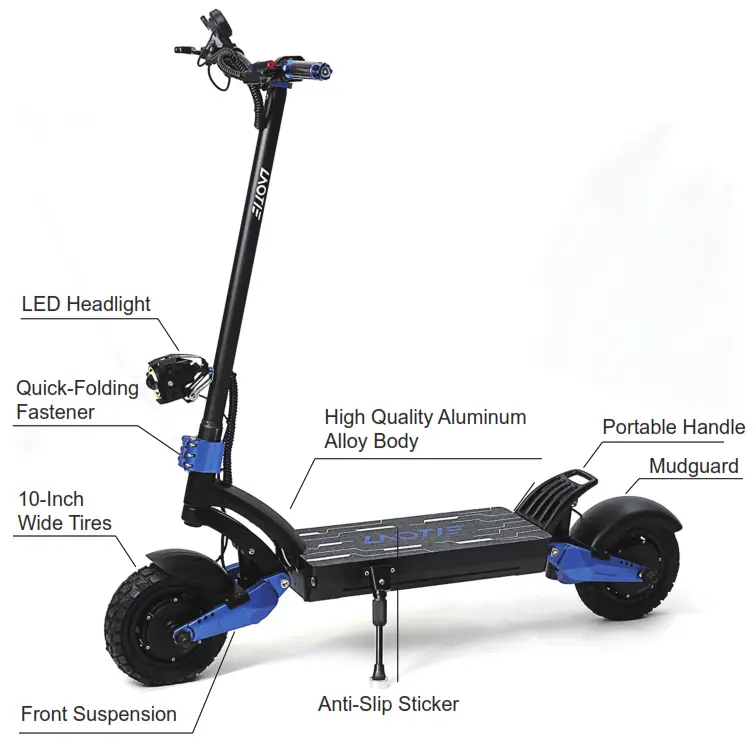

Product Overview

Main Part Introduction

1. Front light button
2. Horn button
3. LCD display (with USB port)
4. Accelerator
5. Speed limit button
6. Single / Dual engine button

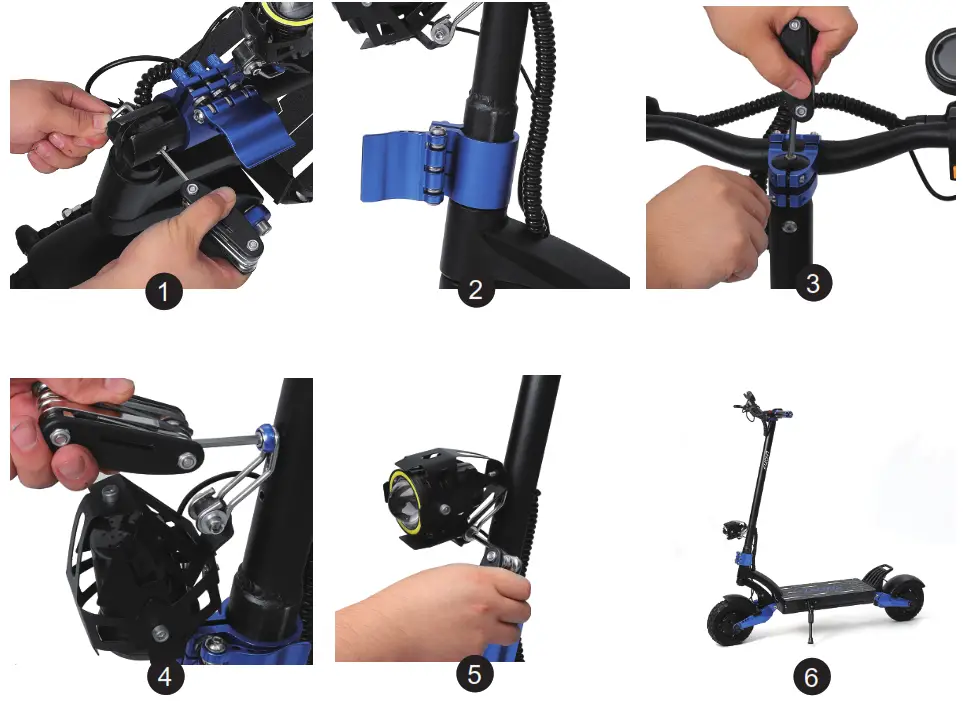

Installation Instructions

1. Install the front pole, insert the fixed shaft and tighten the screw
2. Lower and lock the fastener
3. Install the handlebar and tighten the screws
4. Install the headlight
5. Tighten the screw
6. Done

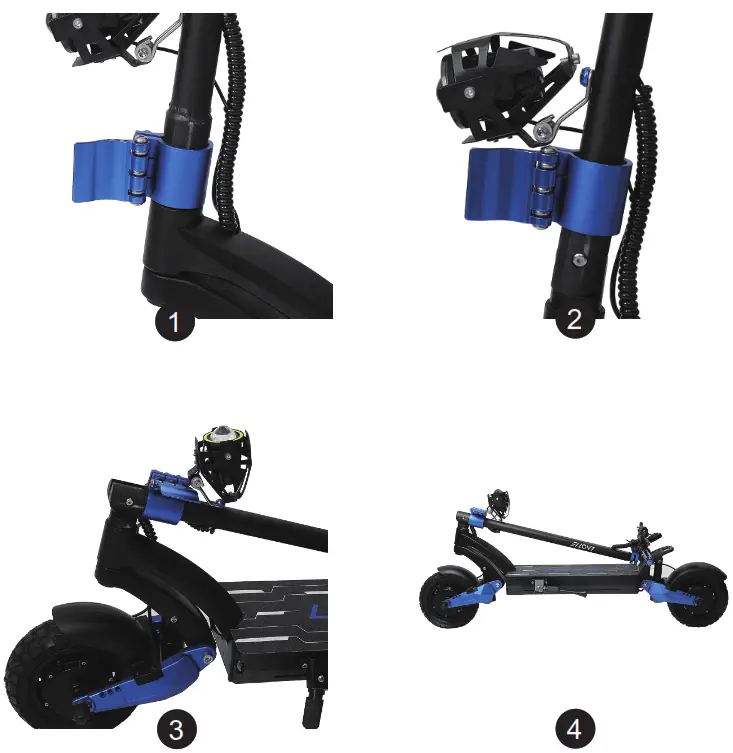

Folding Instructions

1. Unlock the fastener
2. Lift the fastener
3. Fold the pole
4. Done

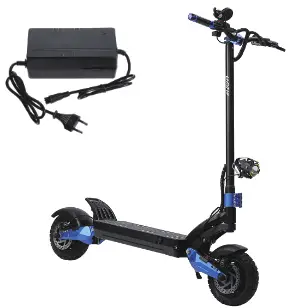

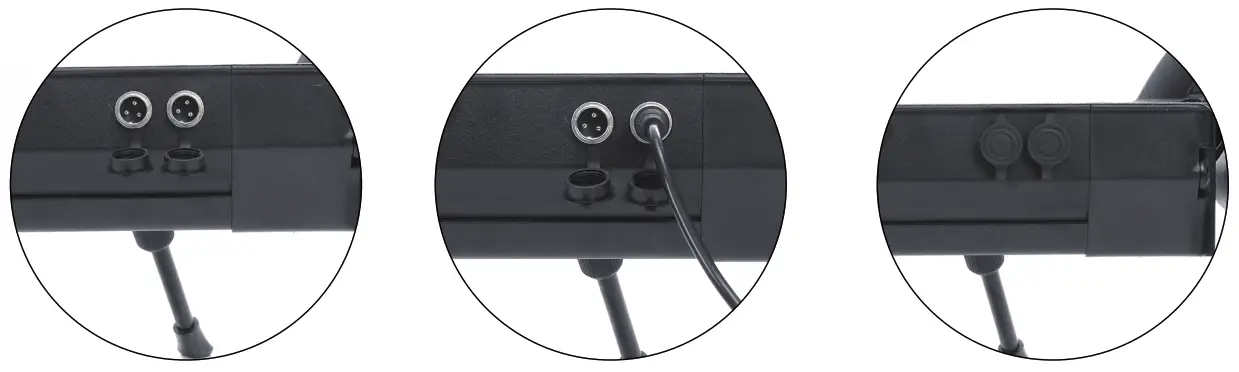

Charge Your Scooter

Open the rubber flap	Plug the power adapter into the charging port	When charging is completed, put back the rubber flap

Safety Instructions

This manual has been created to help you understand the safe use and maintenance of the LAOTIE SR10 electric scooter.

• Persons without excellent vision, balance, coordination, reflex, muscle and bone strength, and good decision-making capabilities should not use this product.
• The user of this product assumes ALL risks associated with its use.
  To minimize these RISKS, the user must wear a safety helmet, goggles, gloves, elbow and kneepads, and appropriate footwear.
• Riding the electric scooter can be a hazardous activity. Certain conditions may cause the equipment to fail without the fault of the manufacturer. Like other electric products, the scooter can and is intended to move and it is, therefore, possible to lose control, fall off and/or get into dangerous situations that no amount of care, instruction or expertise can eliminate. If such things occur you can be seriously injured or die, even when using safety equipment and other precautions. RIDE AT YOUR OWN RISK AND USE COMMON SENSE.
• This manual contains important safety information. It is your responsibility to review this information and make sure that all riders understand all warnings, cautions, instructions and safety. We’re not liable for incidental damages or consequential damages due directly or indirectly to the use of this product.

Always follow the local laws and regulations.

• Understand your local laws permitting the use of electric scooters.
• Never ride your scooter in conditions of poor visibility.
• Do not do stunts, wheelies or jumps. They will increase your chances of injury and damage your LAOTIE SR10.
• Never carry passengers.

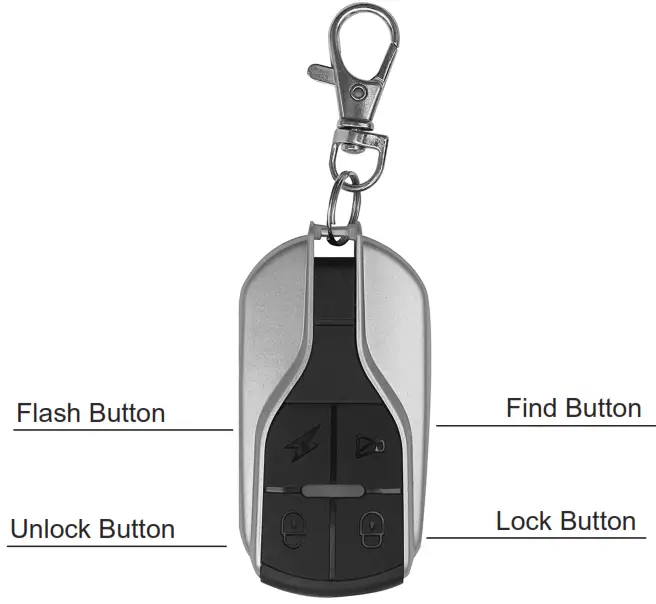

Remote Control Instructions

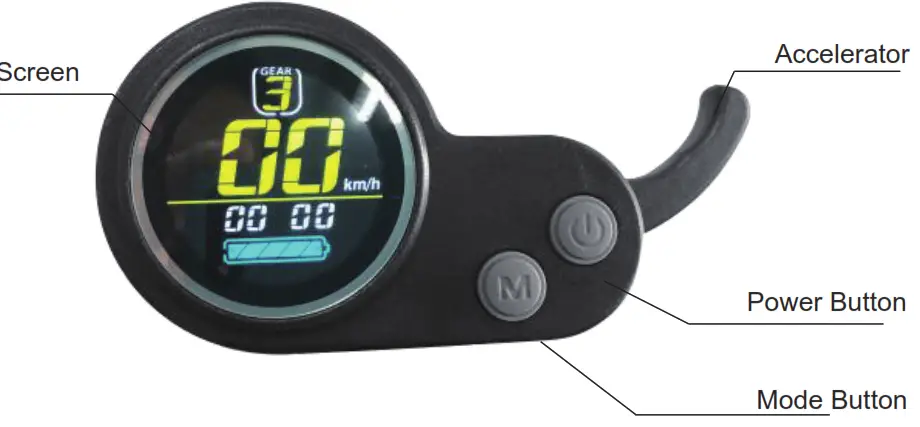

Display Manual

ON/OFF:
Long press the “Power” button for 3 seconds to start or shut down the scooter.
Auto OFF: After five minutes of non-using any function, the scooter will be automatically powered off.
Display content switch:
In power-on condition, short press the “Power” Button to switch TRIP/ODO/VOL on the LCD display.
Note: TRIP is Single mileage, ODO is cumulative mileage, VOL is battery voltage.
Speed Mode Switch: In power-on condition, short press the “Mode” Button to switch speed mode.

Parameters Settings

Enter/Exit Settings Interface: Long press the Mode Button & Power Button together for 3 seconds.
P00-P09 Switch: Short press the Mode Button to switch code number.
Value Adjustment: Short press the Mode Button or Power Button to adjust.

Specification

Maintenance

Cleaning and storage
If you see stains on the scooter’s body, wipe them off with a damp cloth. If the stains won’t scrub off, put on some toothpaste, and brush them with a toothbrush, then wipe them off with a damp cloth. If you see scratches on plastic parts, use sandpaper or other abrasive materials to polish them. Notes: do not clean the scooter with alcohol,  asoline, kerosene or other corrosive and volatile chemical solvents to prevent dire damage. Do not wash the scooter with a high-pressure water spray. During cleaning, make sure that the scooter’s turned off, the charging cable is unplugged, and the rubber flap is closed as water leakage may result in electric shock or other major problems. When the scooter’s not in use, keep it indoors where it is dry and cool. Do not put it outdoors for a long time. Excessive sunlight, overheating and overcooling accelerate tire aging and compromise the scooter and the battery pack’s lifespan.

Battery maintenance

1. Use original battery packs, use of other models or brands may bring about safety issues;
2. Do not touch the contacts. Do not dismantle or puncture the casing. Keep the contacts away from metal objects to prevent short circuits which may result in battery damage or even injuries and deaths;
3. Use original power adapter to avoid potential damage or fire;
4. Mishandling of used batteries may do tremendous harm to the environment. To protect the natural environment, please follow local regulations to properly dispose used batteries.
5. After every use, fully charge the battery to prolong its lifespan. Do not place the battery in an environment where the ambient temperature is higher than 50°C or lower than -20°C (e.g., do not leave the scooter or the battery pack in a car under direct sunlight for an extended time). Do not throw the battery pack into fire as it may lead to battery failure, battery overheating, and even another fire. If the scooter is expected to be left idle for more than 30 days, please fully charge the battery and place it in a dry and cool place. Keep in mind to recharge it every 60 days to protect the battery from potential damage which is beyond a limited warranty.
6. Always charge before exhausting the battery to prolong the battery’s lifespan. The battery pack performs better at normal temperature, and poor when it is below 0°C. For instance, when it is below -20°C, the riding range is only half or less at normal state. When the temperature rises, the riding range restores. Note: Fully charged SR10 Electric Scooter will last for 120-180 days. The built-in intelligent chip will keep a log of its charging and discharging records. The damage caused by prolonged no charge is irreversible and is beyond a limited warranty. Once the damage is done, the battery can not be recharged (Non-professionals are forbidden to dismantle the battery pack, as it may cause electric shock, short circuit or even major safety accidents).

Contact Us

Technical Support Team: [email protected]
If you have any inquires, please feel free to contact us, we will reply within 24 hours.
