Laotie N10 36v10.4ah Electric Scooter User Manual

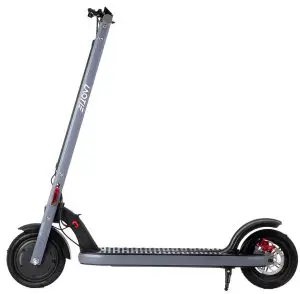

LAOTIE N10 36V10.4Ah Electric Scooter User Manual

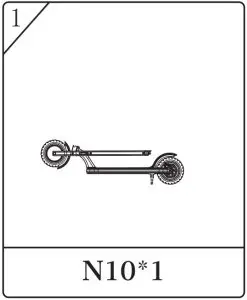

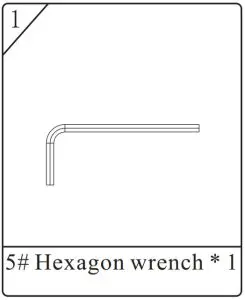

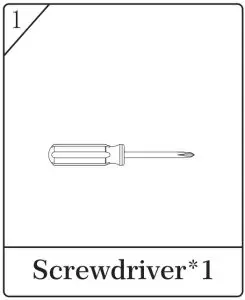

Pakage Contains

Assembly instructions

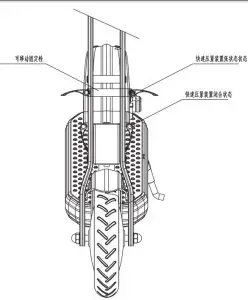

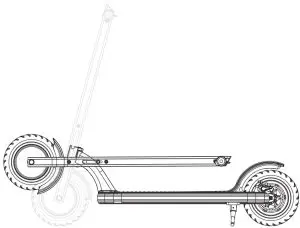

Step 1 Products unfolds and folds

When the rapid pressing device is open, the positioning shaft can move freely and when the mouth is pulled up The vertical position is in a free folding state, and the product starts to unfold normally when the mouth is pulled down.

Note: Remember that the compaction device is closed when the product is deployed

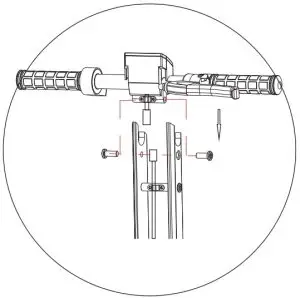

Step 2 Installation of handlebars

As shown : mount the instrument assembly on the handle and screw it tight

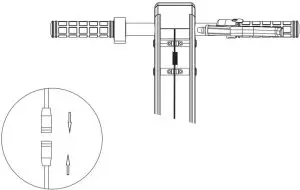

Step 3 Connection of communication lines

As shown: Connect instrument communication lines

Step 4 Installation check

Examine the tire pressure is sufficient（general front 2.0 back 2.2. The factory to protect the tire pressure is not enough，examine that the brakes are available

Operating instructions

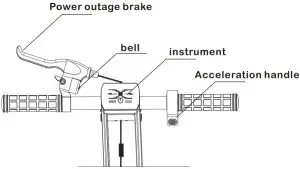

1. Product function as shown below

2. Function details
   1. When pressing the power off brake, cut off the power supply, the rear disc brake holding brake function is effective
   2. Press the bell, handle the bell.
   3. In the state of electrification, turn the accelerator handle counterclockwise and the car starts. The bigger the angle, the faster.
      Warmtip: Please speedup slowly when starting

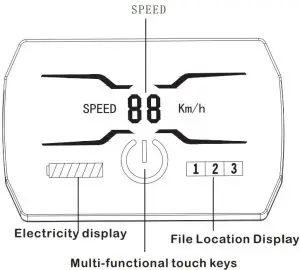

   4. Display screen: Turn on, Display screen, function asshown below:


A: File position highlight refers to the file position at the time
B: When the instrument is dormant, the button displays red light, and the screen activates the display.
C: Key function

1. Click to change gear(loop)
2. Press twice to light the headlights and taillights
3. The car automatically enters hibernation after resting for 5 minutes

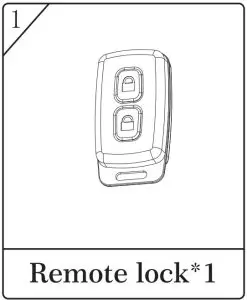

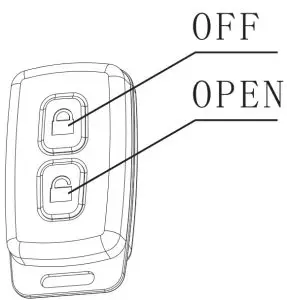

Use of remote locks

Technical Parameters

Repair and maintenance

Maintenance determines the service life, you need to understand the following common sense

1. Check the tire pressure before using , Standard pressure 280Kpa
2. Fully charged without working, makre sure charge and discharge a power every 2 months
3. fullfil the powder after riding
4. Do not use high-pressure water gun cleaning, to avoid damage of the internal n electronic components。

Regular maintenance

1. Check the screw
2. Check the tire
3. Check the brake
