TI40 PRO
ELECTRIC SCOOTER
User Manual
Dear Customer:
Thank you for choosing our company-designed lithium battery e-scooter In life with lithium battery e-scooter you will feel a great function and excellent performance and high quality of our e-scooter which will bring you a pleasant trip.
OUR STORY
LAOTIE means building a strong and dose relationship with customers in the East by using quality products as a bridge. The brand is centered on intelligent and environmentally friendly outings, providing professional electronic cycling products for people who pursue the limit and love outdoor sports.
LAOTIE provides customers with 100% power and fun, specializing in electric scooters, electric bikes & electric skateboards. Every product we sell is thoroughly tested internally and externally to meet the most stringent quality and safety standards.
OUR FACTORY
Our factory has more than 9,000 square meters, with an annual production capacity of 80,000 units. It has many R&D engineers with more than 10 years of experience, which specializes in OEM customization, and ODM development. design, production, and processing of various models. Our products have obtained many certifications, such as European CE, RoHS, MSDS, UN38.3, and so on. Furthermore, our factory established three global overseas warehouses: an EDA warehouse in Poland, a Golden Eagle warehouse in Germany, and self-built warehouses in New York and strategically deployed overseas markets for independent sales.
Never Stop, Go Ahead!
Our future will move towards a more intelligent and modular era. LAOTIE will continue to provide better products for customers who love off-road or competition. Follow your heart and thank you for choosing LAOTIE.
PRODUCT INTRODUCTION

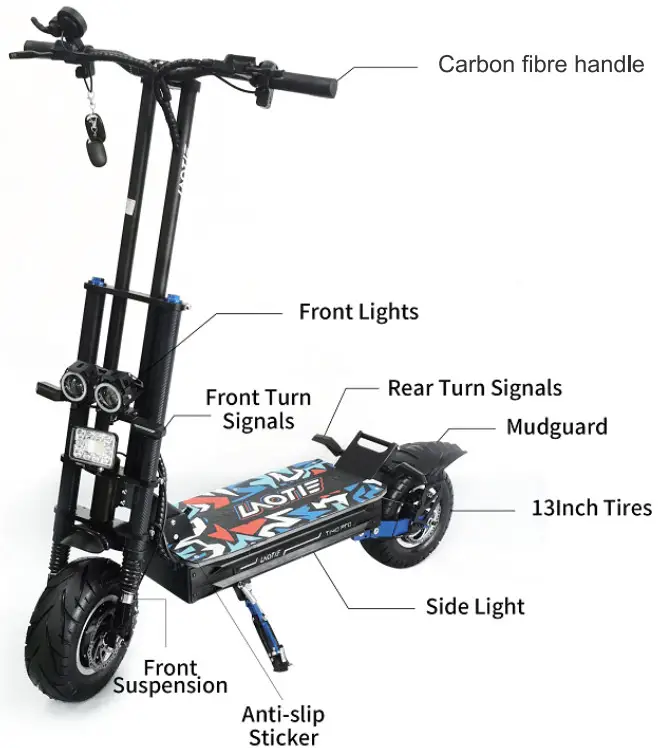

Product Overview

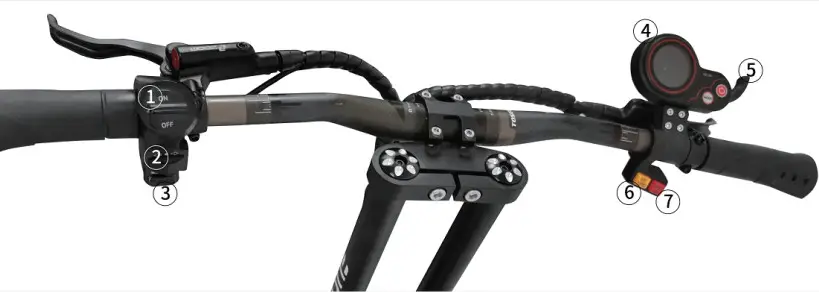

MAIN PART INTRODUCTION
- Front Light Bunton
- Turn Light button
- Horn Button
- LCD Display
- Accelerate
- ECO/ TURDO Switch button
- Single/ Dal Motor Switch Baton
ELECTRIC SCOOTER PACKING LIST
| E-scooter | 1Pc |
| Charger | 1PC |
| Manual | 1pc |
| Remote Control | 2PCS |
| Lamp of Remote Control | 1P |
| Screws & Wrench | 1sET |
Please contact us with no hesitate there is any breakage or missing when you open the package. We will replace it for you as soon as possible. Have a nice day!

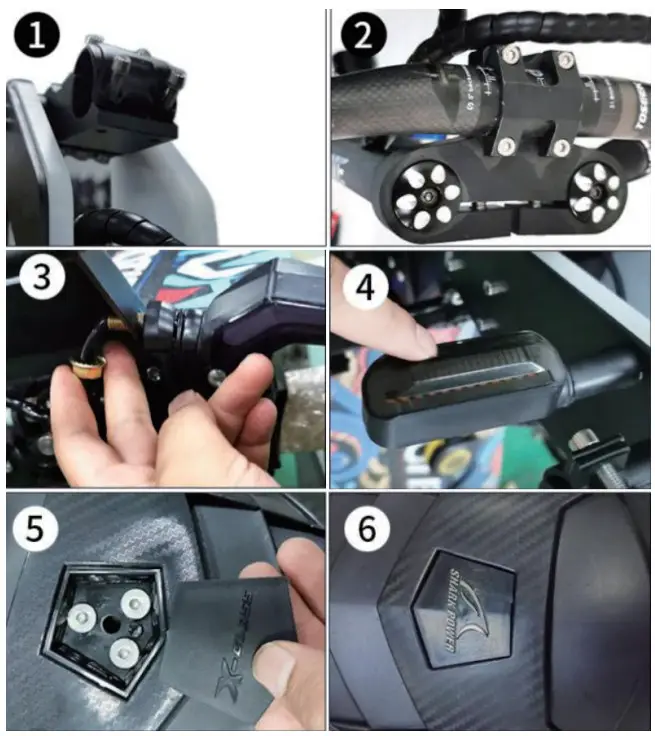

ASSEMBLY INSTRUCTIONS
- Loosen the handlebar screws, secure the handlebars, and tighten the screws
- Handlebar installation complete
- Tighten the turn signal screw
- Turn signal installation completed
- Press the cover on the rear fender
- Rear fender installed

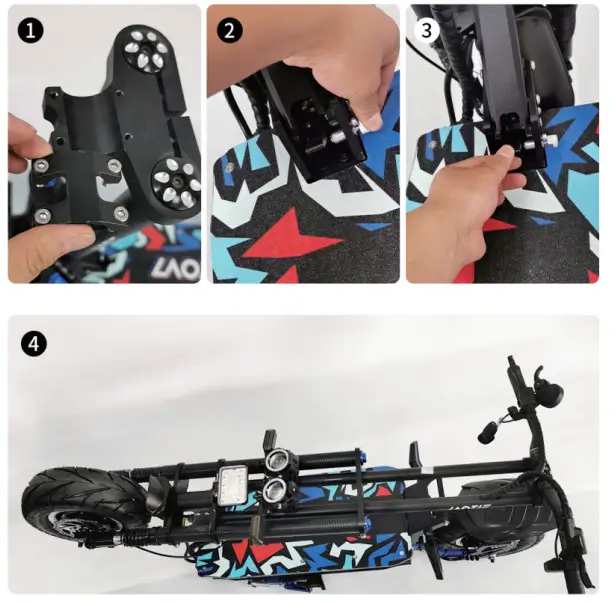

FOLDING INSTRUCTIONS
- Loose the4crews to dismantle the handle
- Pull the silver screw to the night to unlock the safety lock
- Press the black button down to fold the scoot
- Done
CHARGE YOUR SCOOTER

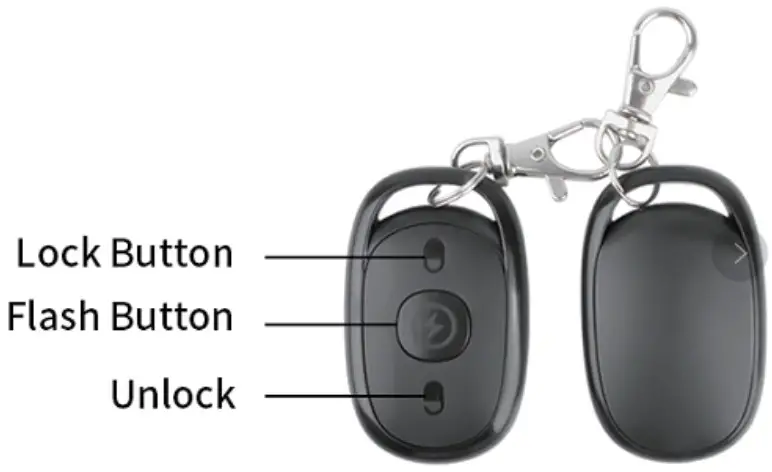

REMOTE CONTROL INSTRUCTIONS
| Lock Your Scooter | Press the “Lock” button 1 time to lock the scooter. when hearing a “beep” sound, the scooter will be on alert. Press the “unlock” button to remove the alert. |
| Unlock Your Scooter | Press the “Flash” button 2 times. When hearing “beep” sounds 2 times, the Scooter will be unlocked. |
DISPLAY MANUAL
ON/OFF:
Long press the “Power” Button for 3 seconds to start or shut down the scooter.
Auto OFF: After five minutes of non-using any function, the scooter will be automatically powered off.
Display content switch:
In power on condition, short press the “Power” Button to switch TRIP/ODO/VOL on the LCD display.
Note: TRIP is Single mileage, ODO is cumulative mileage, and VOL is battery voltage.
Speed Mode Switch: In power on condition, short press the “Mode” Button to switch speed mode.
Parameters Settings: Enter/Exit Settings Interface: Long press the “Mode” & “Power” Buttons together for 3 seconds.
P01-P20 Switch: Short press the “Mode” button to switch the code number. Value Adjustment: Short press the “Mode” or “Power” Button to adjust.
| Code Number | Meaning | Detail |
| P01 | Backlight brightness | 1: Darkest 3: Brightest |
| P02 | Mileage unit | 0: KM 1: MILE |
| P03 | Voltage level | Default: 72V |
| PO4 | Sleep time | 0: no sleep Other numbers are sleep time, Range: 1-60 (minute) |
| P05 | Invalid | / |
| P06 | Wheel diameter | Default: 13 |
| P07 | Number of speed measuring magnets | Range: 0-255 (Default: 27) |
| P08 | Speed limit | Range 0-100km/h (Default: 25), 100: Cancel the speed limit. |
| P09 | Zero starts, non-zero start setting | 0: zero start; 1: non-zero start |
| P10 | Invalid | / |
| P11 | ABS switch choose | The range is 04 (Default: 0). 0: weakest. 4: hardest |
| P12 | Soft and hard start strength | The range is 1-5 (Default: 3). 1: Softest 5: Hardest |
| P13 | Invalid | / |
| P14 | Invalid | / |
| P15 | Controller under-voltage value | Default: 63V |
| P16 | ODO reset setting | Press and hold red request ft3; spring for |
| P17 | Automatic cruise optional | 0: disable cruise 1: enable cruise |
| P18 | Invalid | / |
| P19 | Invalid | / |
| P20 | Invalid | / |
SPECIFICATION
| Items | Specifications |
| Brand | LAOTIAN |
| Model | TI40 Pro |
| Motor | Dual 4000W (peek power) Motors |
| Battery | 72V43.2Ah Lithium Battery |
| Tire | 13 Inches |
| Controller | 50A Controller * 2 |
| Brake | Front and Rear ZOOM Oil Brake & ABS |
| Max Speed | 110 km/h |
| Max Range | Dual Motor 70-80 km I Single Motor 150 km |
| Climbing Angle | 50° |
| Max Load | 200KG |
| Gross Weight | 69.6KG |
| Body Size | 145x30x132m |
| Folding Size | 153x30x53cm |
| Package Size | 156x36x59cm |

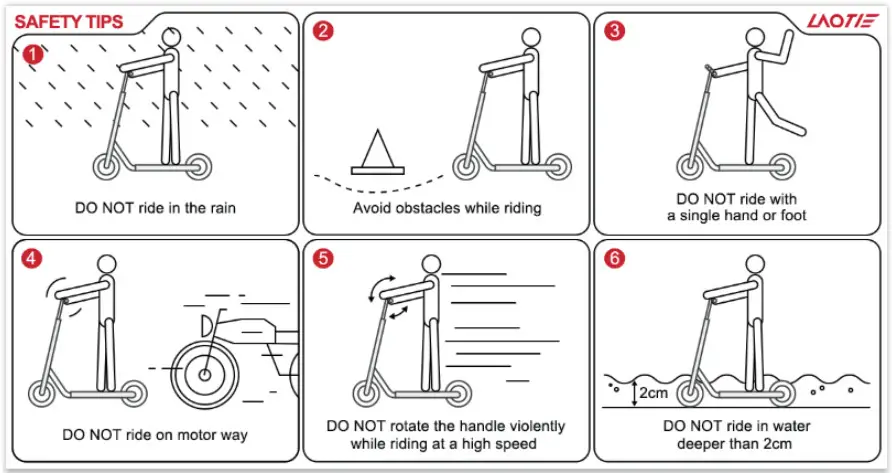

SAFETY INSTRUCTIONS
This manual has been created to help you understand the safe use and maintenance of the LAOTIE Ti40 Pro electric scooter.
- Please make sure the screw of the wheel is tightened well and the braking system works well before driving the scooter.
- Persons without excellent vision, balance, coordination, reflex, muscle and bone strength, and good decision-making capabilities should not use this product.
- The user of this product assumes ALL risks associated with its use. To minimize these RISKS, the user must wear a safety helmet, goggles, gloves, elbow and knee pads, and appropriate footwear.
- This manual contains important safety information. It is your responsibility to review this information and make sure that all riders understand all warnings, cautions, instructions, and safety. We’re not liable for incidental damages or consequential damages due directly or indirectly to the use of this product.
- Riding an electric scooter can be a hazardous activity. Certain conditions may cause the equipment to fail without the fault of the manufacturer. Like other electric products, the scooter can and is intended to move and it is, therefore, possible to lose control, fall off and/or get into dangerous situations that no amount of care, instruction, or expertise can eliminate. If such things occur you can be seriously injured or die, even when using safety equipment and other precautions. RIDE AT YOUR OWN RISK AND USE COMMON SENSE.
ALWAYS FOLLOW THE LOCAL LAWS AND REGULATIONS.
- Understand your local laws permitting the use of Electric scootersNever ride
- your scooter in conditions of poor visibility.
- Do not do stunts, wheelies, or jumps. They will increase your chances of injury and damage your LAOTIE Es40 Pro.
- Never carry passengers
MAINTENANCE
Cleaning and storage
- If you see stains on the scooter’s body, wipe them off with a damp cloth.
- If the stains won’t scrub off, put on some toothpaste, and brush them with a toothbrush, then wipe them off with a damp cloth.
- If you see scratches on plastic parts, use sandpaper or other abrasive materials to polish them.
Notes: do not clean the scooter with alcohol, gasoline, kerosene, or other corrosive and volatile chemical solvents to prevent dire damage. Do not wash the scooter with a high-pressure water spray.
- During cleaning, make sure that the scooter’s turned off, the charging cable is unplugged, and the rubber flap is closed as water leakage may result in electric shock or other major problems.
- When the scooter’s not in use, keep it indoors where it is dry and cool. Do not put it outdoors for a long time. Excessive sunlight, overheating, and over-cooling accelerate tire aging and compromise the scooter and the battery pack’s lifespan.
- Note: fully charged Es40Pro Electric Scooter will last for 120-180 days. The built-in intelligent chip will keep a log of its charging and discharging records. The damage caused by prolonged no charge is irreversible and is beyond limited warranty. Once the damage is done, the battery can not be recharged (non-professionals are forbidden to dismantle the battery pack, as it may cause electric shock, short circuits, or even major safety accidents).
CONTACT US
Technical support Team: [email protected]
If you have any inquiries please feel free to contact us, and we will reply within 24 hours.
Official Store
https://www.laotie.zone/
Scan the 0ode to discover the latest information from LA0TIE
