Euro Appliances Ep52ums Range Hoods User Guide

EP52UMS Range Hoods
User GuideCODE: EP52UMS

NOTICE

1. Thank you for choosing our cooker hood. Please read the instruction manual carefully before use.
2. The installation work must be undertaken by a qualified and competent fitter.
3. The manufacturer disclaims all liability for any damage or injury caused as a result of not following instructions for installation contained in the following text.
   The cooker hood is used on 220/240v, 50Hz.

INSTALLATION

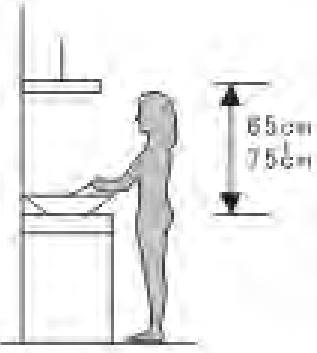

1. The cooker hood should be placed at a distance of 6575cm (26-30inch) from the cooking surface for the best effect.

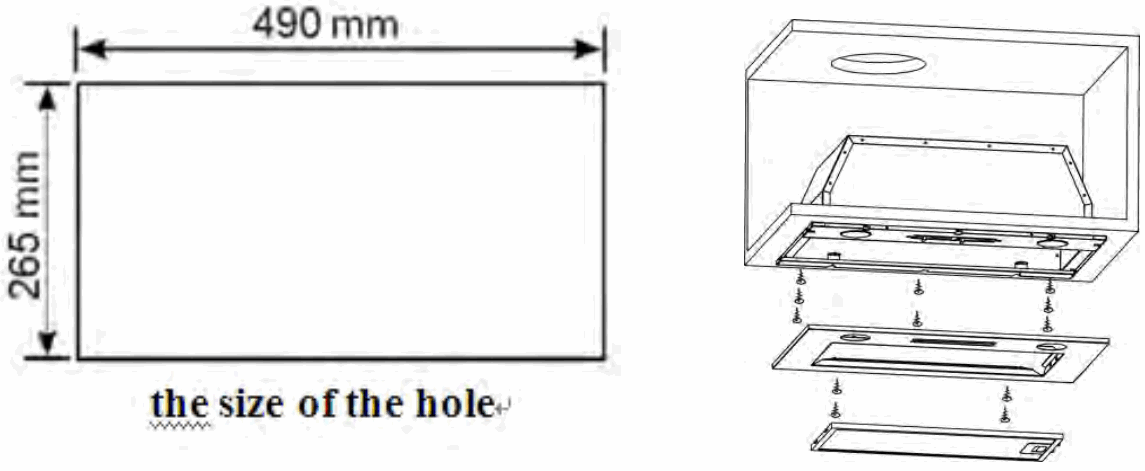

2. Drill a hole in the cupboard, with hole wide 490*265 (mm). Make sure it’s at least 35mm from the edge of the hole to the cupboard edge.
3. Take down the filter and remove the four screws on the panel.
4. Use random accessory tighten screws fix the hood into cabinet.
5. Use 4 screws fix the panel into body and equip the filter.
6. Install one-way valve: put the one-way valve into air outlet,
   Put on the one-way valve with air outlet.

USE

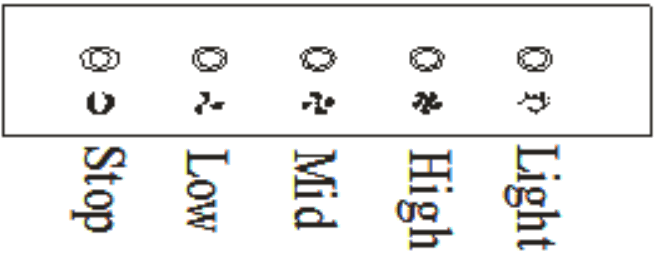

1. Push stop button, and the motor will stop.
2. Push the Low button, the motor runs at low speed.
3. Push the Mid button, the motor runs at mid speed.
4. Push the High button, the motor runs at high speed.
5. Push the light button and the two lights will come on. Push it again and the light will turn off.

NOTICE OF INSTALLATION

1. Before installation, please ensure the area is clean to avoid suction of the remaining bits of broken wood and dust.
2. It cannot share the same air ventilation tube with other appliance such as gas tube, warmer tube, and hot wind tube.
3. The bending of ventilation tube should be≥120°, parallel or above the start point and should be connected to the external wall.
4. After installation, make sure that the extractor is level to avoid grease collection at one end.

SAFETY WARNING

1. Never let the children operate the machine
2. The cooker hood is for home use only, not suitable for barbecue, Roast shop and other commercial purpose.
3. Please ask the technical person to do the assembling.
4. The cooker hood and its filter mesh should be clean regularly in order to keep in good working order.
5. Before cleaning, please switch the power off at the main supply.
6. Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.
7. If there is any fault with the appliance, please call the service department to arrange a service engineer.

MAINTENANCE

1. The cooker hood and its filter mesh should be cleaned regularly in order to keep in good working order. Because the grease filters are made of metal, do not clean the filters with detergents that will corrode metal products.
2. Clean the filters as below:
   a) Method one: Put the filter in the water(40℃-50℃), pour in some greaseloosening detergent, soak it for about 2-3 minutes and then clean it with a soft brush. Do not brush too hard, in case to damage the filter.
   b) Method tow:
   User can put the filter into a dishwasher with detergent for cleaning.
   Set the temperature at around 60℃.
3. To protect the main body from corrosion over a long period of time, the cooker hood should be cleaned with hot water plus soap or non corrosive detergent once a week. Do not use grinding detergent, or it will damage the body.
4. Keep the motor and other spare parts free from water, as this will cause damage to the appliance.
5. Disassembly and assembly the filter:

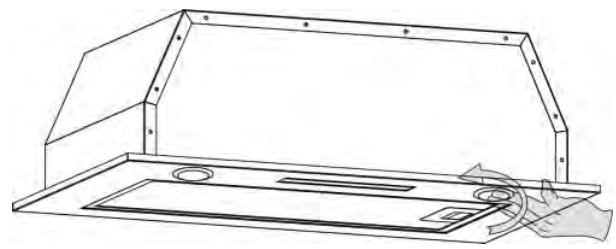

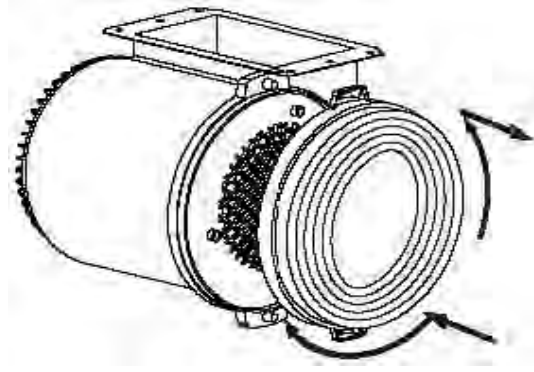

6. Activated carbon filter can be used to trap odors. In order to install the activated carbon filter, user have to unscrew and take down the front panel. Then plug the  activated carbon filter into the unit and turn it in anti-clockwise direction. Repeat the same on the other side.NOTE:
   Make sure the filter is securely locked. Otherwise, it could loosen and cause damage to the unit.When activated carbon filter attached, the suction power will be lowered.
7.  To change the bulb, press the lamp cup, take out the bulb in the counter-clockwise.

ABNORMITY AND SOLUTION

Euro style Group trading as Euro Appliances
Service Line: (08) 8165 1012
Fax: (08) 8165 1018
Email: [email protected]
Pronto Service + Support: 1800 440 335
Email: [email protected]
HEAD OFFICE
65 Glenburn Road, Glynda SA 5070
Ph: 08 8165 1012
www.euroappliances.com.au
