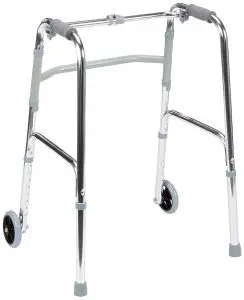

GIMA 43129 Walker With 2 Internal Wheels Instruction Manual
All serious accidents concerning the medical device supplied by us must be reported to the manufacturer and competent authority of the member state where your registered office is located.
INTRODUCTION
This manual provides the instructions for a correct use of our patient aid or an assistant / carer.
INTENDED USE
The walking frame is designed to be used inside buildings by patients with an impairment to legs.
The devices are intended to provide a support to the body. This aid allow patient mobility making it easy to walk. They must be used with two arms in order to
guarantee safe operation.
WARNING! The walking frame is built for indoor use and only on flat surfaces. If it is necessary to employ the devices outside we advise to follow the road rules like any pedestrian.
MAINTENANCE
The walking frame do not require special care for their ordinary maintenance. We advise to regularly perform the following checks:
- verify the reliability of different components
- check the correct fixing of screws and nuts
- test moving parts, apply lubricant if needed
- clean parts with mild detergents (do not use corrosive or harmful chemicals), put it in dry and ventilated environment.
WARNING!
Do not use the equipment in case it is damaged or any component is missing.
Do not use the patient aids for purposes not mentioned in this user manual.
Do not cross obstacles or use the patient aids on uneven surfaces, or wet and slippery. The use of the device is not recommended for people with poor functionality in the hands and arms.
Max load 100kg
ASSEMBLY

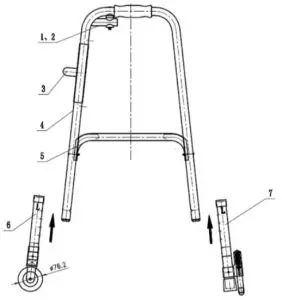

As shown on the figure, for assembly see direction of arrow. (note: casters have left side and right side).
| N° | Name | Specifications | Qty |
| 1 | Telescopic inter tube | Ø19 | 1 |
| 2 | Telescopic outer tube | Ø22 | 1 |
| 3 | H tube | 1 | |
| 4 | Handle tube | Ø25 | 2 |
| 5 | Squashed tube | Ø22 | 2 |
| 6 | Front caster assemblies | 2 | |
| 7 | Back assembly | 2 |
 | Manufacturer |  | Keep in a cool, dry place |
 | Consult instructions for use |  | Keep away from sunlight |
 | Product code |
| Medical Device compliant with Regulation (EU) 2017/745 |
 | Lot number |  | Caution: read instructions (warnings) carefully |
 | Medical Device |
GIMA WARRANTY TERMS
The Gima 12-month standard B2B warranty applies.
