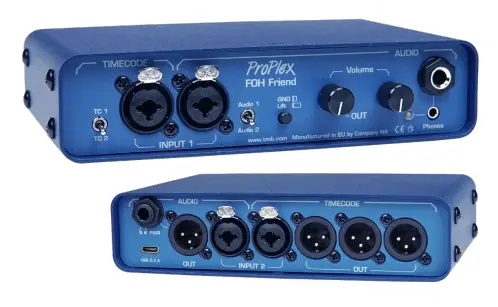

ProPlex PR-22.0005 FOH Friend Timecode Tool
Overview
The ProPlex FOH Friend is a timecode/audio switching device, allowing programmers to instantly switch between two timecode and two audio track sources. With all the outputs and controls needed for timecode and audio, the FOH Friend allows the programmer to make use of every minute of valuable programming time. Durable and compact, the FOH Friend goes anywhere. Just a few of the features include:
- Independent gain controls for XLR audio output + true headphone amp with 1/4” and 3.5mm jacks
- Three passive XLR timecode outputs, unaffected by power failure
- Two audio + two timecode inputs all with combination XLR/1/4” TRS connectors
- Selector switches for independent selection of audio + timecode inputs
- USB powered
- Will also function as a main/backup timecode or audio switch
- Optional Single and Dual Rack Mount Kits available

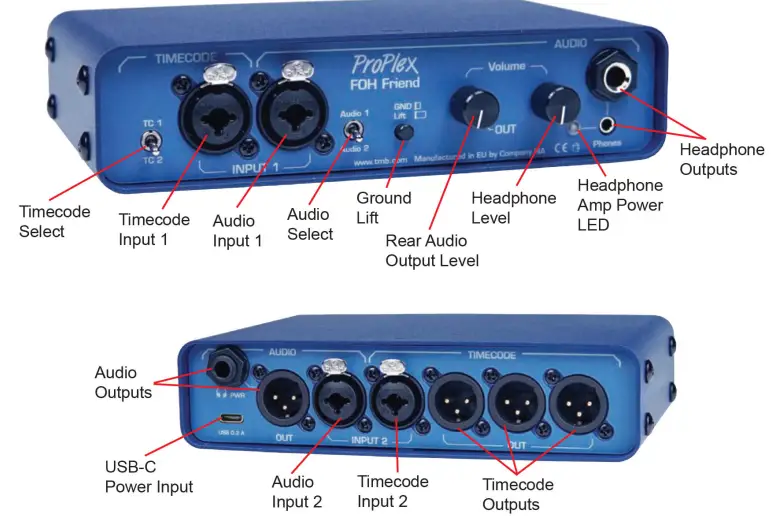

Front and Rear Panels
Tech Notes
- Timecode out[puts are separated with 600 Ohm transformers.
- There are two separate potentiometers for Headphone and Audio Outputs.
- USB-C power is required only for the headphones amplifier.
- Timecode Splitter Outputs work without USB Power
- There are separate selectors for Timecode and Audio Inputs.
- The Ground Lift button separates Output ground from Input Ground.
- USB Headphone power has an LED indicator.

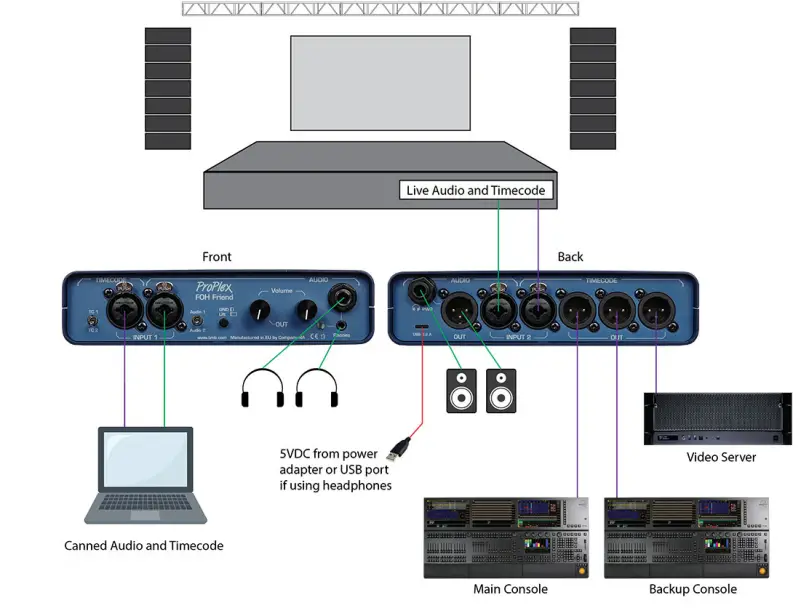

System Diagram
Appendix
Limited Warranty
ProPlex Data Distribution Devices are warranted by TMB against defective materials or workmanship for a period of two (2) years from the date of original sale by TMB. TMB’s warranty shall be restricted to the repair or replacement of any part that proves to be defective and for which a claim is submitted to TMB before the expiration of the applicable warranty periods. This Limited Warranty is void if the defects of the Product are the result of:
- Opening the casing, repair, or adjustment by anyone other than TMB or persons specifically authorized by TMB
- Accident, physical abuse, mishandling, or misapplication of the product.
- Damage due to lightning, earthquake, flood, terrorism, war, or act of God.
TMB will not assume responsibility for any labor expended, or materials used, to replace and/or repair the Product without TMB’s prior written authorization. Any repair of the Product in the field, and any associated labor charges, must be authorized in advance by TMB. Freight costs on warranty repairs are split 50/50: Customer pays to ship defective product to TMB; TMB pays to ship repaired product, ground freight, back to Customer.
This warranty does not cover consequential damages or costs of any kind. A Return Merchandise Authorization (RMA) Number must be obtained from TMB prior to return of any defective merchandise for warranty or non-warranty repair. For all repairs please contact TMB Tech Support Repair using the contact information below or email [email protected].
US
527 Park Ave.
San Fernando, CA 91340 Tel: +1 818.899.8818 Fax: +1 818.899.8813 [email protected] www.tmb.com
UK
21 Armstrong Way Southall, UB2 4SD England Tel: +44 (0)20.8574.9700 Fax: +44 (0)20.8574.9701 [email protected] www.tmb.com
Please send returned merchandise prepaid and in the original packing. Freight call tags will not be issued for shipping the product to TMB, but TMB will pay the freight for return to the customer. Clearly label package with a Return Merchandise Authorization Number (RMA #). Products returned without an RMA # will delay service. Please contact TMB and request an RMA # prior to shipping the unit. Be prepared to provide the model number, serial number, and a brief description of the cause for the return. Be sure to properly pack the unit; any shipping damage resulting from inadequate packaging is the customer’s responsibility. TMB reserves the right to use its own discretion to repair or replace
product(s). Proper UPS packing or double-boxing will better ensure product integrity when shipped.
Note: If you are given an RMA #, please include the following information on a piece of paper inside the box:
- Your name
- Your address
- Your phone number
- The RMA #
- A brief description of the symptoms
Specifications
| Part Number | PPFOHF743M |
| DC Power | 5 VDC only for headphone amplifier |
| Power Consumption | 0.1 A |
| Cooling | Passive |
| Power Connectors | USB-C |
| Timecode Input Connectors | 2x Neutrik XLR female with combination 1/4” TRS |
| Audio Input Connectoers | 2x Neutrik XLR female with combination 1/4” TRS |
| Timecode Output Connectors | 3x Neutrik XLR Male with 600 Ohm transformers |
| Audio Output Connectors | 1x Neutrik XLR Male, 1x 1/4” TRS |
| Headphone Output Connectors | 1x 1/4” TRS Headphone Jack, 1x 3.5 mm TRS Jack |
| Operating Temperature | -20 to +40 °C |
| Unit Dimensions (HxWxD) | 1.72 x 7.22 x 5.07” [43.7 x 183.5 x 128.7 mm] |
| Shipping Dimensions (HxWxD) | 4 x 8.5 x 5.5” [101.6 x 215.9 x 139.7 mm] |
| Unit Weight | 1.2 lb [0.54 kg] |
| Shipping Weight | 1.4 lb [0.64 kg] |
| Optional RackMount Kits | PP1RMKITSS – ProPlex 1U RackMount Kit, Small, Single |
| PP1RMKITSD – ProPlex 1U RackMount Kit, Small, Dual |

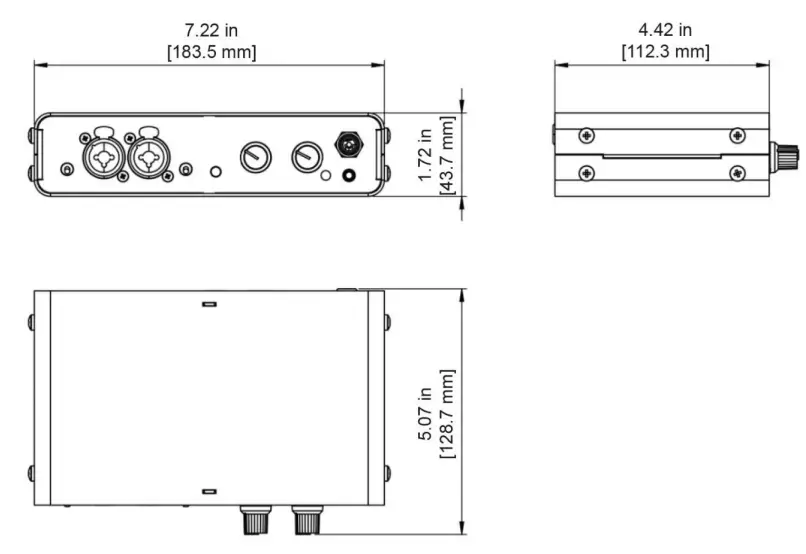

Dimensions

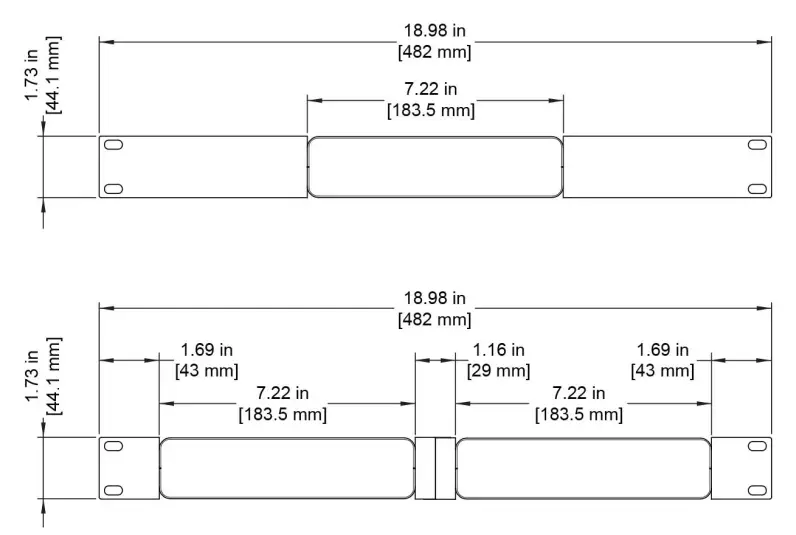

Rack Mount Kit
