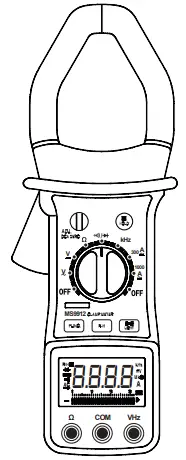

MASTECH M9912 AC/DC Clamp Meter
The special attention should be paid when using the test and measurement instrument because the improper usage may cause electric shock and damage the equipment.
- Use proper measurement category (CAT), voltage, and amperage rated probes, test leads, and adapters for the measurement.
- Do not use or store the device around explosive gas, vapor, or under high temperature and humidity.
- When handling the test probes and crocodile clips, keep your fingers behind the physical guard.
- Examine the measuring test leads (if present) before use. Any element of which the insulation is deteriorated
(even partially), replace them with proper functional test leads. - Connect the common test lead before the live test lead and remove the live test lead before the common test lead.
- Before measuring current, make sure the instrument fuses available and disconnect the power supply to the circuit test
- Remove the batteries if the device is not used for an extended period of time, or if stored in temperatures above 45 °C. If the batteries are not removed, battery leakage can damage the device.

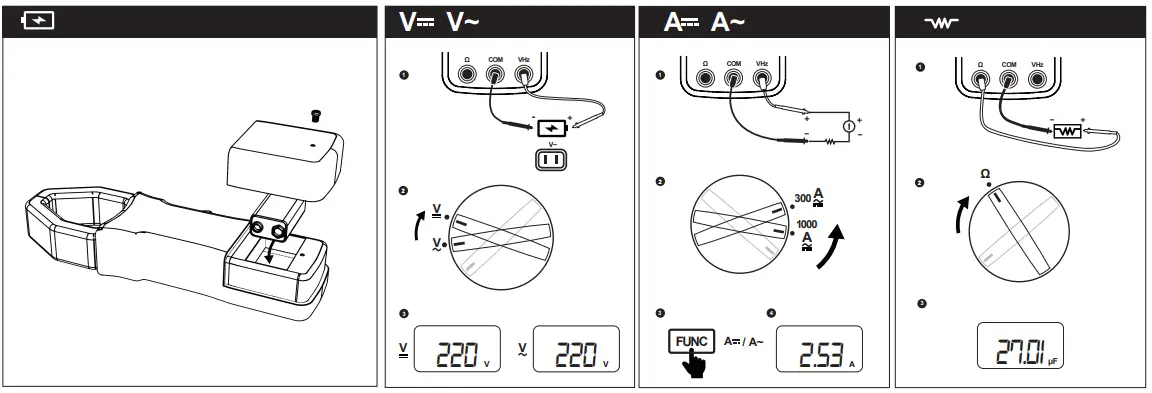

INSTALL
Contents
Specifications
| Specifications | |||
| Range | Resolution | Accuracy Exactitud
±(1.0%+5) ±(1.2%+5)
±(1.0%+5) ±(1.2%+5)
±(2.0%+10) ±(3.0%+10)
±(2.0%+5) ±(3.0%+5)
±(2.0%+10) ±(2.5%+10)
±(2.0%+10) | |
| Rango | Resolución | ||
| Intervalle | Résolution | ||
| Разрешение | |||
| Диапазон | |||
| V~ | 3V/30V/300V 750V | 1mV/10mV/100mV 1V | |
| V | 3V/30V/300V 750V | 1mV/10mV/0.1V 1V | |
| A~ | 300A 1000A | 0.1A 1A | |
| A | 300A 1000A | 0.1A 1A | |
| Ω | 300Ω/3kΩ/30kΩ/300kΩ/3MΩ 30MΩ | 0.1Ω/1Ω/10Ω/100Ω/1kΩ 10kΩ | |
| Hz | 30kHz | 10Hz | |
EMEA
MGL EUMAN S.L.
C/ Picu Castiellu, Parcelas i1-i4 33163, Argame Morcín, Asturias, Spain
Tel: +34 985-08-18-70
Email: [email protected]
USA
MGL AMERICA, INC.
2810 Coliseum Centre Drive,
Ste. 100 Charlotte,
North Carolina 28217 USA
Tel: +1 833-533-5899
Email: [email protected]
UNITED KINGDOM
MGL GROUP U.K. LIMITED
14 Weller St, London, SE1 1QU, UK Tel: +34 985-08-18-70
Email: [email protected]
MEXICO & LATAM
MGL LATAM S.A DE CV
Colonia Industrial Vallejo Del. Azcapotzalco 02300,
Mexico D.F
Tel: +1 833-533-5899
Email: [email protected]
SKU Number: MS9912CBGLO
