HG-HCXLST-6262 4 Light Black Vintage Farmhouse Style Adjustable Hanging Barn Light Pendant Light with Wood Shade
Installation Guide
INSTALLATION GUIDE
 | ||

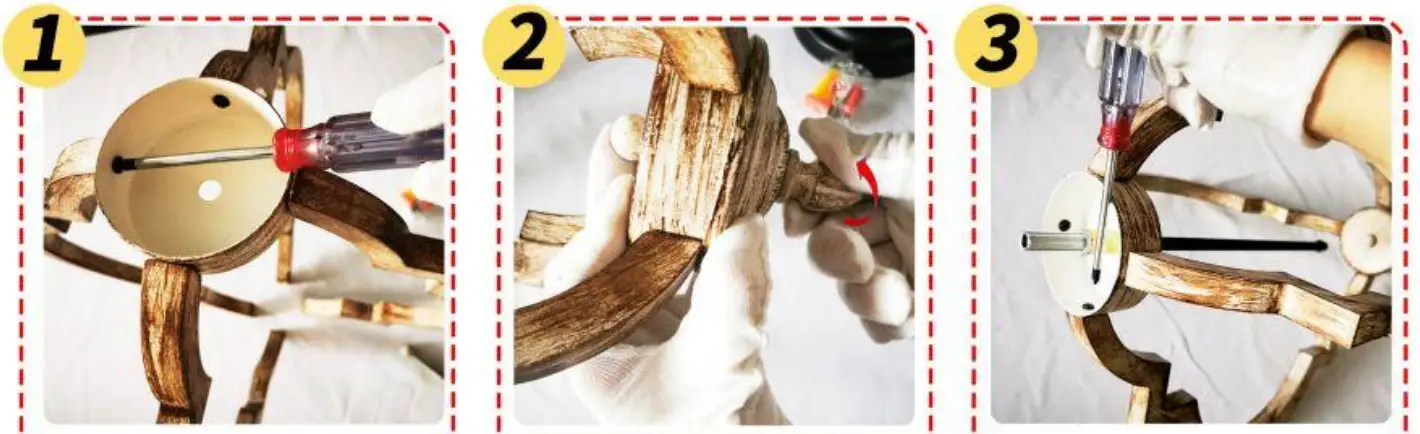

| Fixed the wooden lamp body onto the bottom housing by screws. | Screw the final to fix the bottom cover. | Fixed the other side of the wooden lamp body onto the top housing with screws |
 | ||

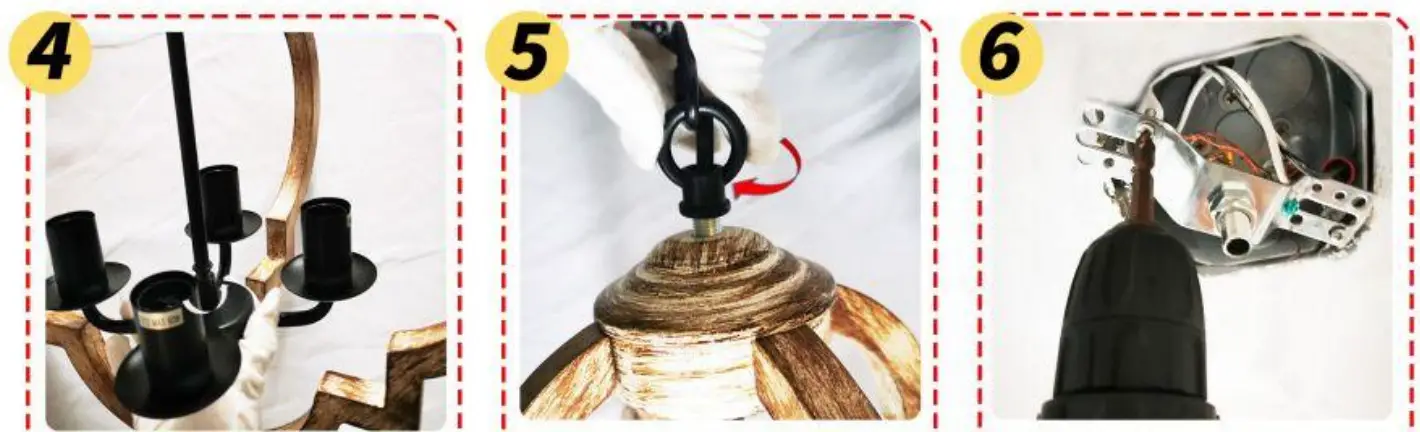

| Slowly pass wire go through the center tube, then screw bulb fixture body onto the tube. | Connect the loop and chain, then fix onto the top housing. | Fix the mounting bracket on the electrical box. |
 | ||
| Pass wire go through mounting bracket, then connect the wires. | Screw the collar for fixing the canopy. | Screw 4 E12 bulbs. The light the fixture is ready to use.(Bulbs are not included.) , |
GAUT1ON
- TO AVOID THE RISK OF FIRE OR SHOCK, FIXTURE MUST BE INSTALLED IN COMPLIANCE WITH ALL APPLICABLE NATIONAL AND LOCAL
ELECTRICAL/BUILDING CODES.
DISCONNECT POWER BEFORE REL AMPING OR WIRING THE FIXTURES.
tan existing future is being replaced, remove it and note to which of the wires in the outlet box the fixture was attach - DO NOT SEPARATE AND OTHER WIRES THAT WAY BE IN THE BOX. DO NOT DAMAGE THE INSULATION OF OLDER WIRING.
- in regular circumstances the Black wire will be the Hot”lead white and the WHITE wire will be the Neutral or common lead wire A GREEN or BARE COPPER wire is the Ground. In order buildings, it is always good practice to reconfirm the polarity of the wiring
NOTE.F for your safety be certain that the circuit breakers controlling outdoor lighting and equipment are GFl breakers.
