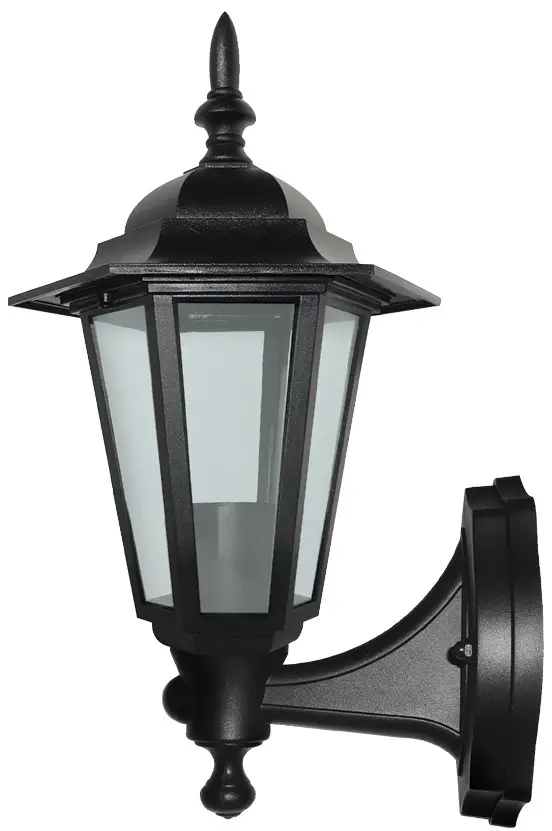

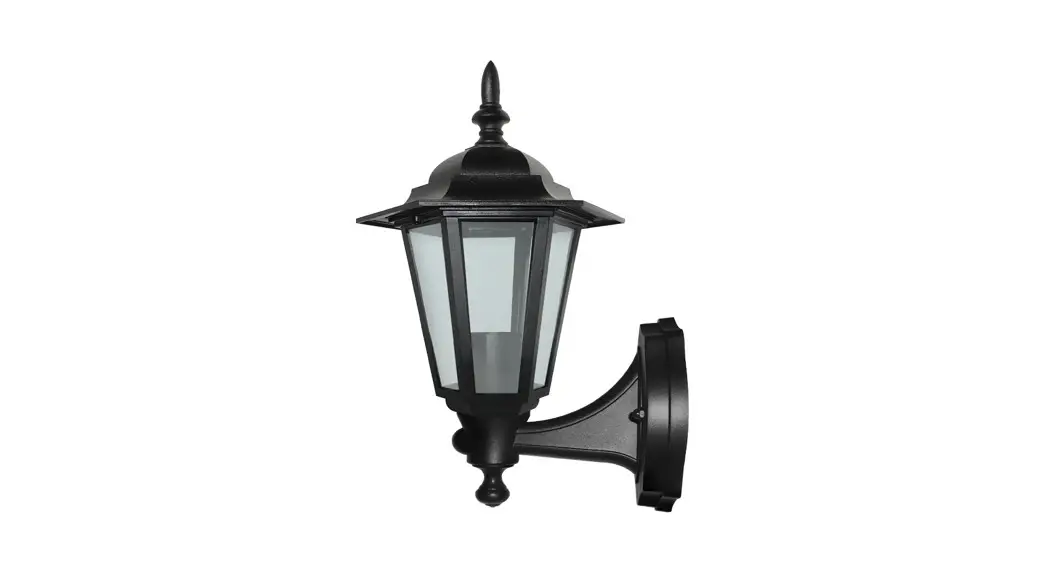

L60B Polycarbonate Full Lantern Wall Light
Instructions
L60B Polycarbonate Full Lantern Wall Light
 |  |

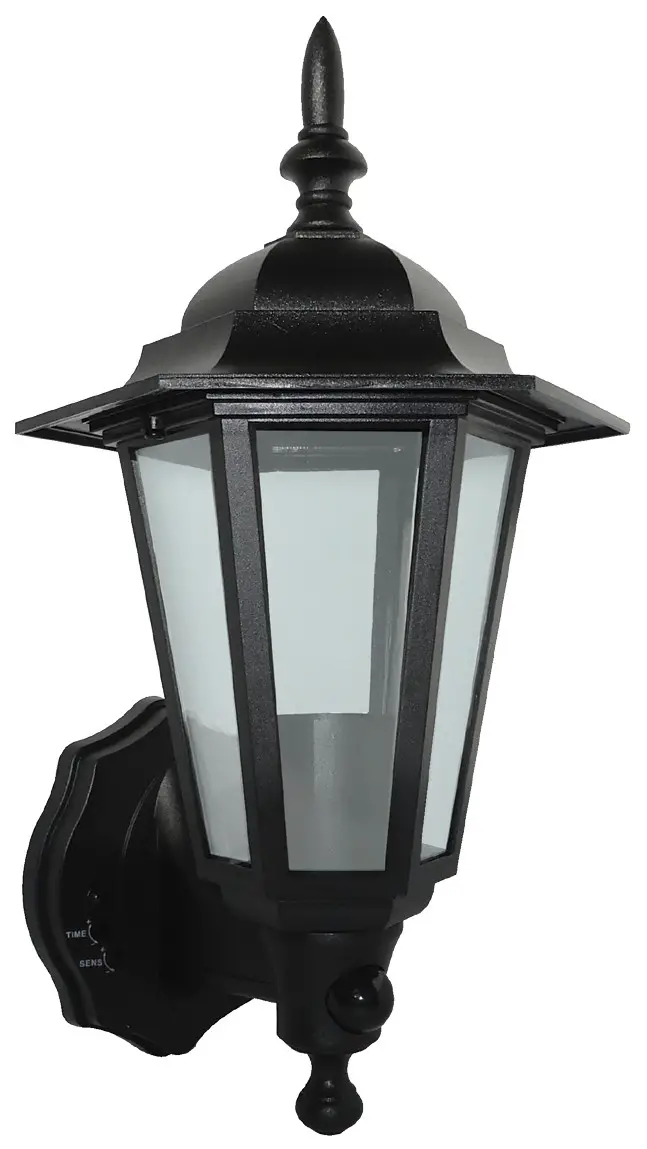

PIR version shown
POLYCARBONATE FULL LANTERNS
- Requires 1 x suitable ES lamp (not included). Fitting is rated at 60W max
- Gasketed mounting/wiring box
- Polycarbonate construction: corrosion resistant
- Hexagonal one-piece lens: easy assembly
PIR VERSION

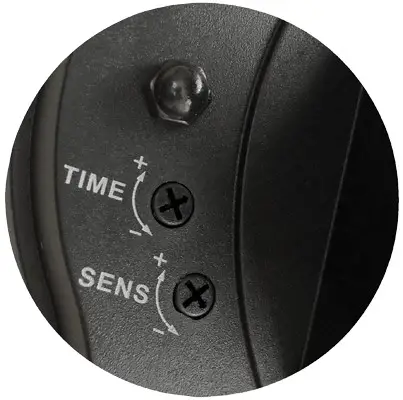

- 10-meter range with sensitivity adjustment control
- Time on adjustable (10±5) secs – (4±1) min
- 110° detection zone
- Factory preset PIR – no override facility
- Standard = M.O.M: 1 / O.P.Q: 12
- PIR Version = M.O.M: 1 / O.P.Q: 6
| Code | Version | Colour | Wattage | IP Rating |
| L60B | Standard | Black | 60W Max | IP44 |
| PIRL60BK | 110° PIR |
