User Guide
Download the GoPro Quik App
!PA

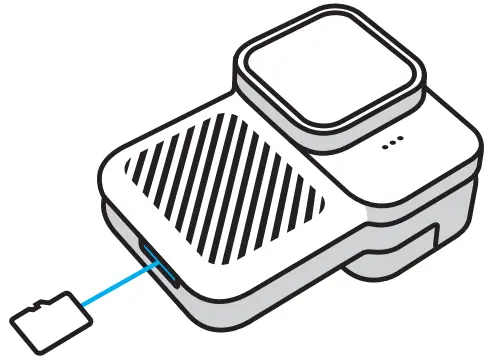

Insert SD Card

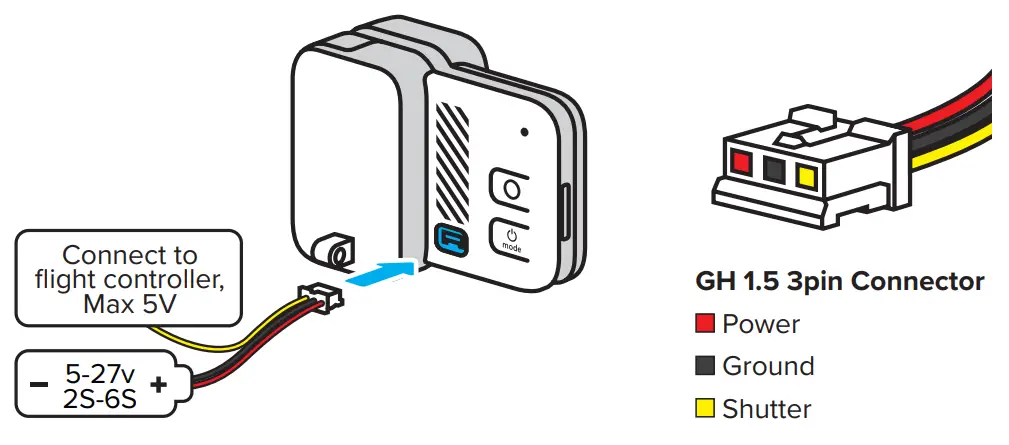

Connecting to Your Drone
Note: Please check polarity and wire configuration.
Incorrect wiring can permanently damage camera.

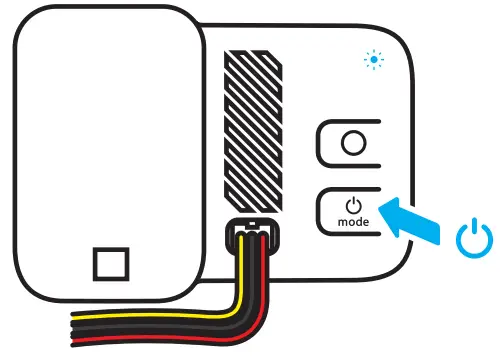

Powering On
Note: The LED will blink 3x after powering on.
Pairing with the App
!PA
Aim your GoPro camera lens at the QR code to begin pairing with the GoPro Quik app on your phone.
Note: The LED will blink 2x to confirm QR has been read.

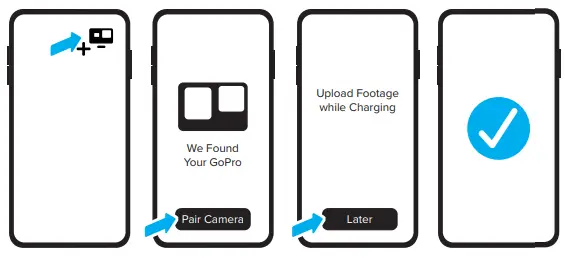

Finishing Pairing with the GoPro Quik App
The GoPro Quik app is the easiest way to switch modes, adjust settings and frame your shot.
Note: Your camera must be within 1 meter of your phone to pair with the GoPro Quik app. Auto Upload is not supported by HERO10 Black Bones.

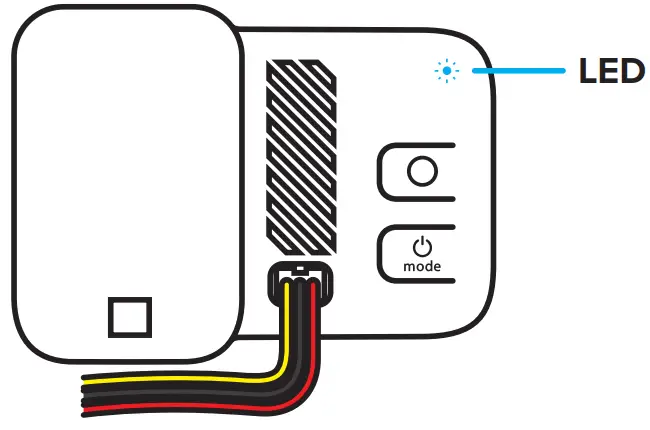

LED Status
| Camera Power On | 3 blinks |
| Camera Power Off | 7 blinks |
| App/Remote Pairing | 1 blink per 1s |
| QR Code Accepted | 2 blinks |
| Idle Video Mode | 1 blink per 5s |
| Idle Photo Mode | 2 blinks per 5s |
| Idle Time Lapse Mode | 3 blinks per 5s |
| Recording | 1 blink per 2s |
| Stop Recording | 3 blinks |

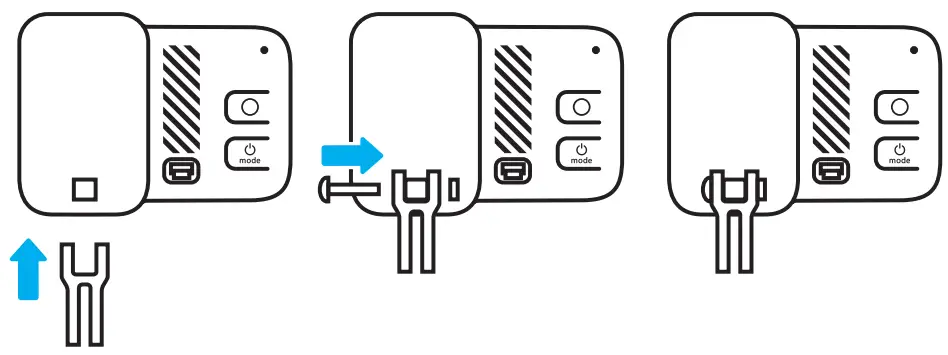

Use the included mounting fingers to use your camera with GoPro mounts.
mVr4Tp60fW0te0cFb1i16x-.5sM
Aim your GoPro camera lens at the QR code to set up your camera up with these settings:
| Video: 4K60 4:3 Lens: Wide ISO: Max 1600 HyperSmooth: Off | Color: Flat EV Comp: -0.5 Bit Rate: High Sharpness: Medium |
WARNING: HERO10 Black Bones is not waterproof.
For best performance, ensure there is enough airflow around your camera.
For more information and QR codes, go to gopro.com/bones
