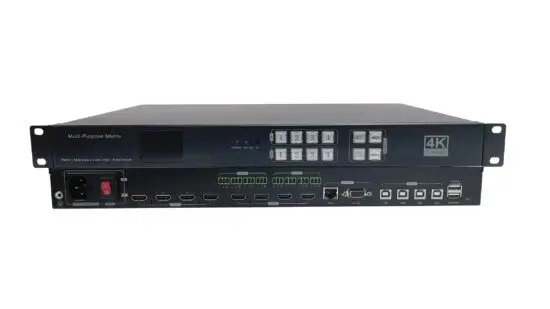

ANGUSTOS AMPD-0404K6G Seamless Matrix Switcher User Manual
V1.1
1. OVERVIEW
AMPD-0404K6G seamless UHD Matrix can connect 4 HDMI sources to 4 HDMI displays in various modes. Each source can be independently scaled and switched without delay or black screen. The product supports video resolution up to 4K60 4:4:4.
It also integrates functions of Multi-viewer, Video wall controller and KMV switcher.
2. FEATURES
- HDMI 2.0 and HDCP 2.2 compliant
- Support 18 Gbps video bandwidth
- Support video resolution up to 4K60 4:4:4
- Seamless switching without delay or black screen
- Support HDMI output audio de-embedding
- Support external L/R audio insert on HDMI
- Support EDID management
- Multiview, viewing multiple video sources in a display
- Video wall, select any input to be displayed on multiple displays as one.
- KVM switch, which can be used to switch operations between multiple PCs.
- Front panel push buttons control and Web Control
3. Front panel Operation
Description: After power on, the LCD screen shows LOGO status. Press any push button to enter the main page to operate it. If no operation within 15 seconds, it will back to LOGO status . The LCD screen menu information is shown below:
The left column indicates the current audio input format (HDMI is embedded audio, AUX is analogue audio) and the middle part indicates the input and output corresponding status. The right column indicates the current resolution of the corresponding output port.
INPUT/OUTPUT push buttons
Press INTPUT(1234) + OUTPUT(1234)+ Enter in sequence to switch the matrix routing.
To make a distinguish with other function selections, the OUTPUT 1234 are replaced by ABCD.

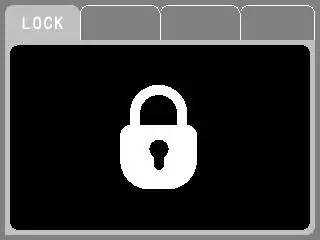

Press and hold the MENU button to enter or unlock the matrix. The MENU button indicator will light up when the matrix is locked.

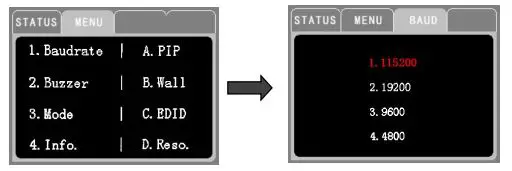

Press MENU+1+(1/2/3/4)+ Enter in sequence to adjust the device’s current baud rate as
115200 or 19200 or 9600 or 4800.

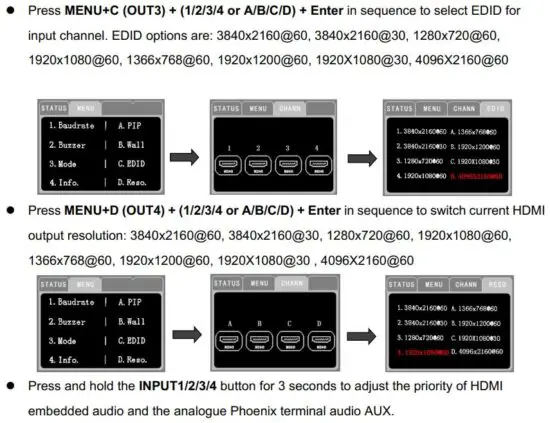

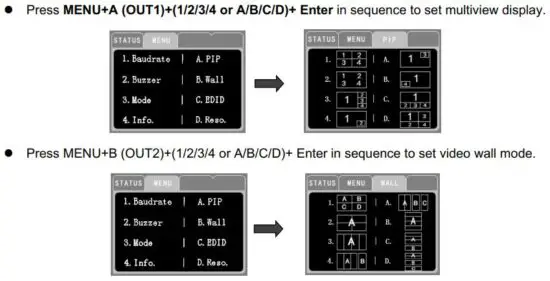

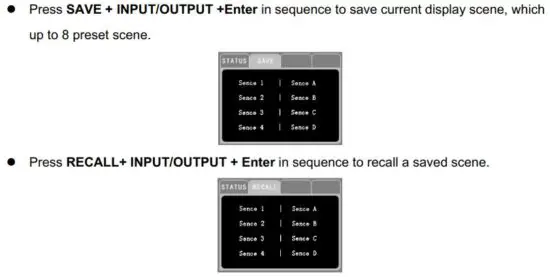

8 Video Wall Modes
