INSTRUCTION GUIDE
CAUTION: Sharp blades. Contact may result in injury. Keep out of reach of children.
Blade Replacement Instructions
- Close pipe cutter and secure with closing latch

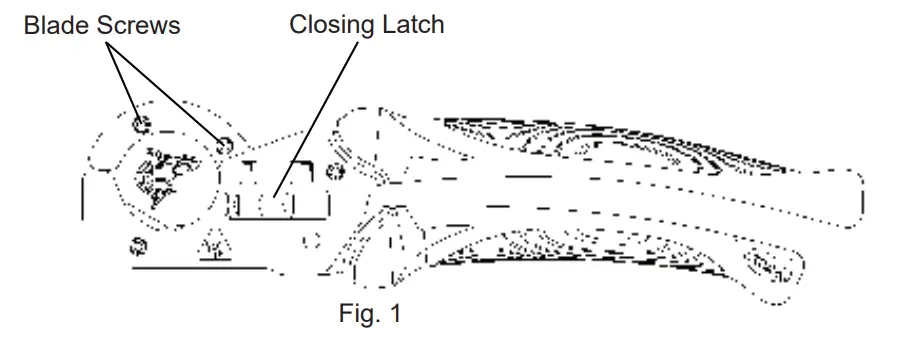

- Remove two blade screws using 3/32″ hex key (Allen wrench) see Fig. 1
- Open pipe cutter
- Replace blade
- Close pipe cutter and secure with closing latch
- Align blade holes with screw holes
- Replace screws using hex key
