HARMAN JBL CHARGE 2+ User Guide

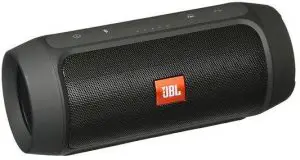

Product overview

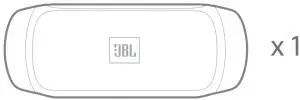

- What’s in the box

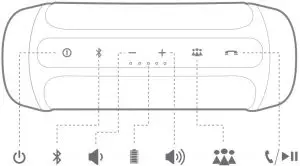

X1 - Buttons

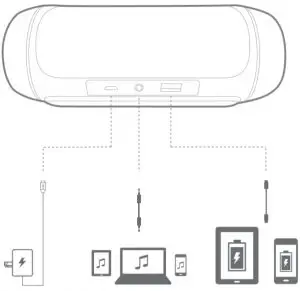

- Connections

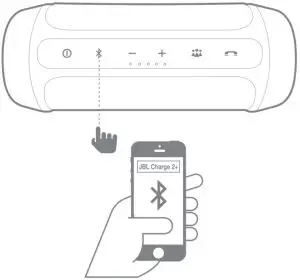

- Bluetooth
- Hands-free

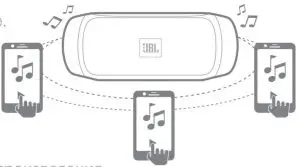

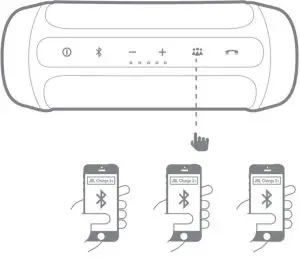

- Social mode
Can connect a maximum of 3 devices
press play to take control
- Led Behavior
Off Blinking ON
Product is OFF Standby Product is ON
Not connected Pairing mode connected Call not active Phone ringing Call active

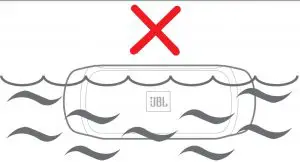

Social mode OFF NA Social mode ON - Warning
JBL Charge 2+ is splash proof; submerging it in water or other liquids may result in permanent damage to the speaker.
IMPORTANT: To ensure personal safety and successful charging, do not connect JBL Charge 2+ to any power source while the charging port is wet, and do not expose JBL Charge 2+ to dripping or splashing while charging, as doing so may result in permanent damage to the speaker or power source. Splash proof is defined as water splashing against the enclosure from any direction shall have no harmful effect to the unit.
- Bluetooth® version: 3.0
- Support: A2DP V1.3, AVRCP V1.5, HFP V1.6, HSP V1.2
- Transducer: 2 x 45mm
- Rated power: 2 x 7.5W
- Frequency response: 75Hz-20kHz
- Signal-to-noise ratio: >80dB
- Power supply: 5VDC, 2.3A USB Output: 5V, 2.1A (maximum)
- Battery type: Lithium-ion polymer (3.7V, 6000mAh)
- Battery charge time: 4hrs 1.8A
- Music playing time: up to 12 hours (varies by volume level and audio content)
- Bluetooth® transmitter power: 0-4dBm
- Bluetooth® transmitter frequency range: 2.402-2.480GHz
- Bluetooth® transmitter modulation: GFSK, n/4 DQPSK, 8DPSK
- Dimensions: (1) 79mm x 185.2mm
- Weight: 600g
Voice Logi
Voice Logic is a leading-edge voice-enhancement technology that significantly improves the clarity of voice communications by minimizing a wide variety of background noises.
