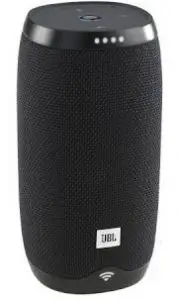

JBL Link 20 User Manual

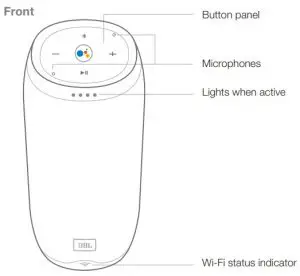

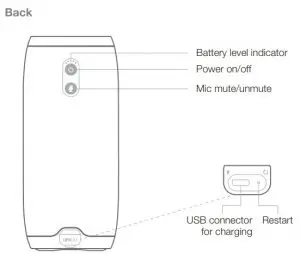

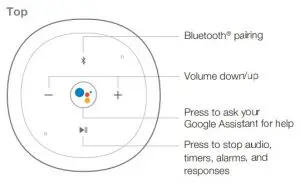

Product Tour Front
Get Started
1.
2.

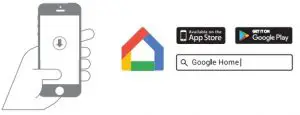

Download and run the Google Home app on a phone or tablet.
Set up your JBL Link 20 in the Google Home app.
IPX 7 Waterproof
JBL Link 20 is IPX7 waterproof. IPX7 waterproof is defined as the speaker can be immersed in water up to 1m for up to 30 minutes.

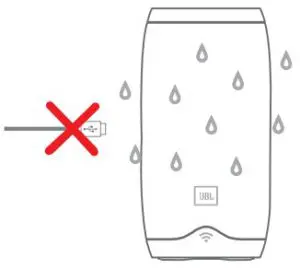

IMPORTANT: To ensure that the JBL Link 20 is waterproof, please remove all cable connections and tightly close the cap; exposing the JBL Link 20 to liquids without doing so may result in permanent damage to the speaker. And do not expose JBL Link 20 to water while charging, as doing so may result in permanent damage to the speaker or power source.
Specification
| Transducer | 2 x 50mm |
| Output power | 2 x 10W |
| Frequency response | 65Hz-20kHz |
| Signal-to-noise ratio | 80dB |
| Battery type | Lithium-ion Polymer (3.7V, 6000mAh) |
| Battery charge time | 4.5 hours @5V 2.3A |
| Music play time | up to 10 hours (varies by volume level and content) |
| Wireless network | 802.11b/g/n/ac (2.4/5GHz) |
| Bluetooth version | 4.2 |
| Bluetooth transmitter frequency range | 2402 − 2480MHz |
| Bluetooth transmitter power | 5dBm |
| Bluetooth transmitter modulation | GFSK, π/4 DQPSK, 8DPSK |
| 5G Wi-Fi transmitter frequency range | 5.150~5.350GHz, 5.470~5.725GHz, 5.725~5.825GHz |
| 5G Wi-Fi transmitter power | <20dBm (EIRP) |
| 5G Wi-Fi modulation | OFDM, BPSK, QPSK, 16QAM, 64QAM, 256QAM |
| 5G Wi-Fi network compatibility | IEEE 802.11 n/ac |
| 2.4G Wi-Fi transmitter frequency range | 2412 – 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 Channels) |
| 2.4G Wi-Fi transmitter power | <20dBm (EIRP) |
| 2.4G Wi-Fi modulation | OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM, 64QAM |
| 2.4G Wi-Fi network compatibility | IEEE 802.11b/g/n/ac |
| Supported audio formats | HE-AAC, LC-AAC, MP3, Vorbis, WAV (LPCM), FLAC, Opus |
| Dimensions (Dia x H) | 93 x 210 mm |
| Weight | 950g |
Google, Google Play, Chromecast, Chromecast built-in, Google Home and other related marks and logos are trademarks of Google Inc. Chromecast built-in may require subscription(s).
* Requires compatible device. Google Assistant requires an internet connection. Availability and performance of certain other features and services are service, device and network-dependent and may not be available in all areas; subscription(s) may be required, and additional terms, conditions and/or charges may apply. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners. The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance. This equipment complies with FCC/IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
For more product information, please visit www.jbl.com
