Jbl Charge Essential User Manual

Quick Start Guide

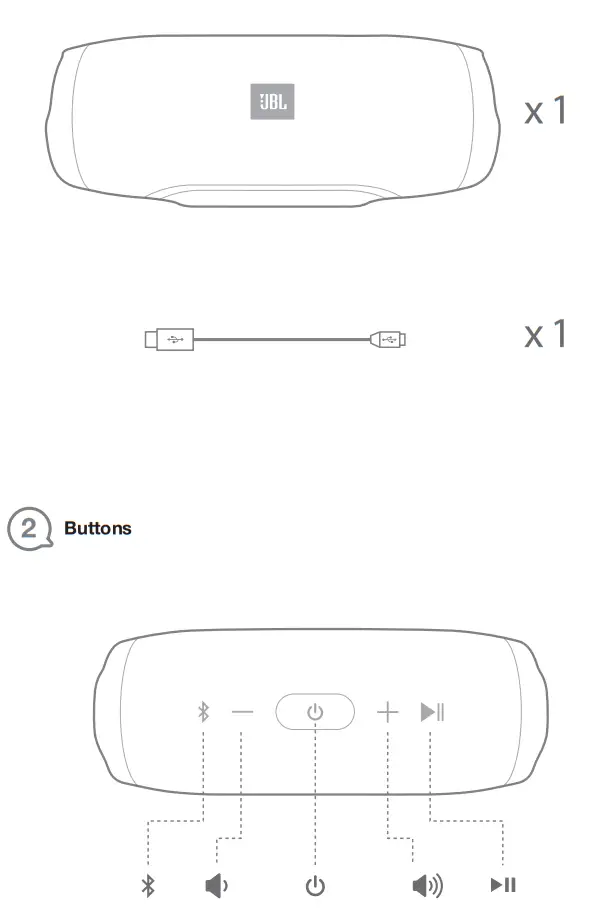

What’s in the box

JBL Charge Essential is IPX7 waterproof.

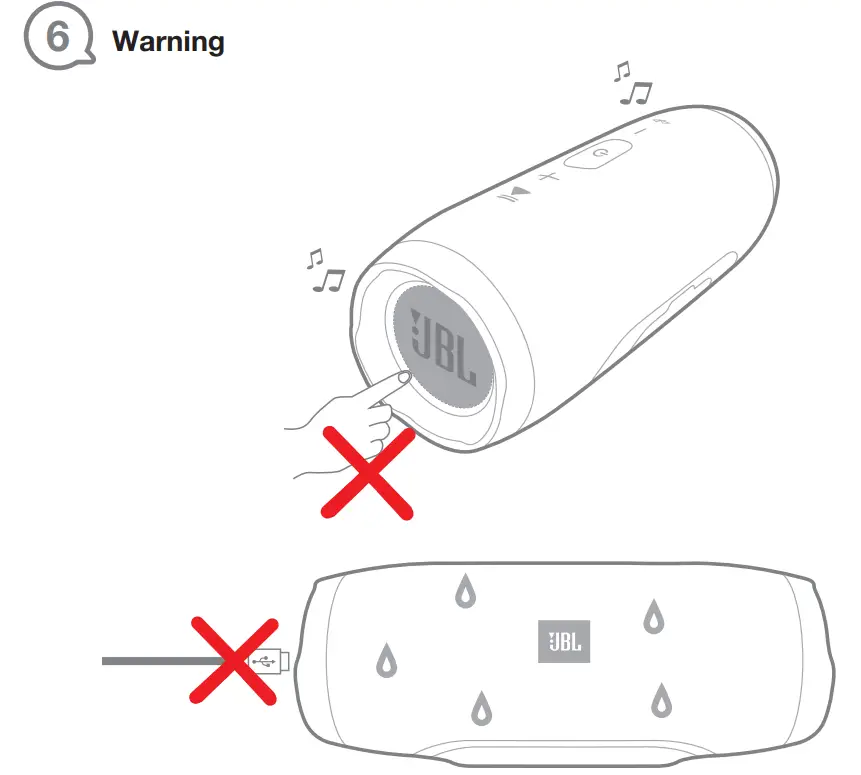

IMPORTANT: To ensure that the JBL Charge Essential is waterproof, please remove all cable connections and tightly close the cap; exposing the JBL Charge Essential to liquids without doing so may result in permanent damage to the speaker. And do not expose JBL Charge Essential to water while charging, as doing so may result in permanent damage to the speaker or power source.
IPX7 waterproof is defined as the speaker can be immersed in water up to 1m for up to 30 minutes.

• Transducer: 2 x 50 mm
• Output power: 2 x 10 W RMS
• Rated output power: 2 x 10 W RMS
• Power input: 5 V / 2A
• Frequency response: 65 Hz – 20 kHz
• Signal-to-noise ratio: > 80 dB
• Battery type: Li-ion polymer 22.2 Wh (equivalent to 3.7 V / 6000 mAh)
• Battery charge time: 4 hours (5 V / 2 A)
• Music play time: up to 20 hours (dependent on volume level and audio content)
• USB port: Type A
• USB rating: 5 V DC, 2 A
• Bluetooth version: 4.1
• Bluetooth ® profile: A2DP 1.3, AVRCP 1.5
• Bluetooth ® transmitter frequency range: 2402 MHz – 2480 MHz ®
• Bluetooth transmitter power: ≤ 9 dBm (EIRP)
• Bluetooth ® transmitter modulation: GFSK, π/4 DQPSK, 8DPSK ®
• Dimensions (W x H x D): 213 x 89.7 x 87 mm
• Weight: 0.77 kg

TO PROLONG BATTERY LIFESPAN, FULLY CHARGE AT LEAST ONCE EVERY 3 MONTHS. BATTERY LIFE WILL VARY DUE TO USAGE PATTERNS AND ENVIRONMENTAL CONDITIONS. Do not expose the JBL Charge Essential to liquids without removing cable connection. DO NOT EXPOSE JBL Charge Essential TO WATER WHILE CHARGING. IT MAY RESULT IN PERMANENT DAMAGE TO THE SPEAKER OR POWER SOURCE. When using external adapter, the output voltage/current of the external adapter should not exceed 5V/3A.

The Bluetooth ®word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.

PA_JBL_Charge Essential_QSG_CR_V9
