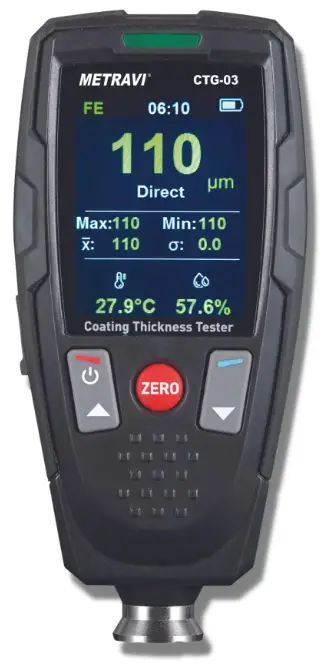

METRAVI CTG-03 Coating Thickness Gauge User Manual

GENERAL INFORMATION

• This coating thickness gauge works both on magnetic as well as non-magnetic surfaces.
• Uses induction principle or on the eddy current principle, depending on the type of probe used.
• You can select the type of probe manually via MENU system, else it works automatically.
• Confirms to industrial standards: GB/T 4956-1985; GB/T 4957-1985; JB/T 8393-1996; JJG 889-95; JJG 818-93.

FEATURES

• Measures Coatings: Non-magnetic (e.g. paint, zinc) on steel;
  Insulated (e.g. paint, anodizing coatings) on non-ferrous metals
• 2.4” TFT colour LCD display
• Temperature, Humidity and Dew Point temperature measurements

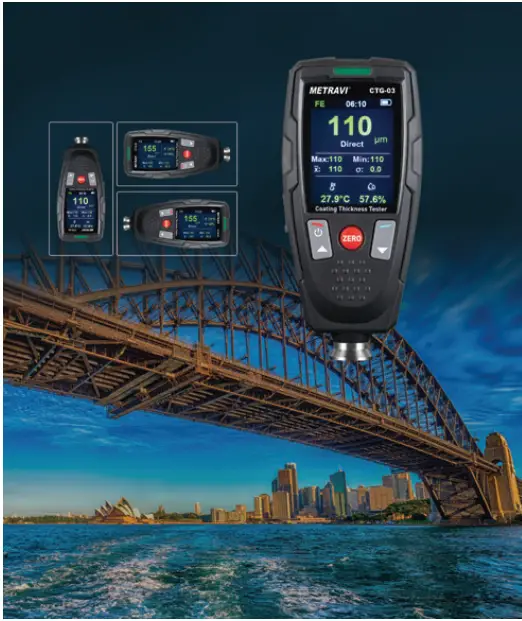

• Auto-rotation Screen: 0°, 90°, 180°, 270°
• Stability test
• Continuous test
• Set auto power-off time
• SSPC mode
• Warning with beeper and backlight flash, 3-Colour LED indication
• Menu operation system
• Working modes: DIRECT, GROUP and SSPC
• AVG, MAX, MIN, Stand and Deviation (S.DEV) display
• Basic, one-point and SSPC mode calibration
• Low battery, error indications

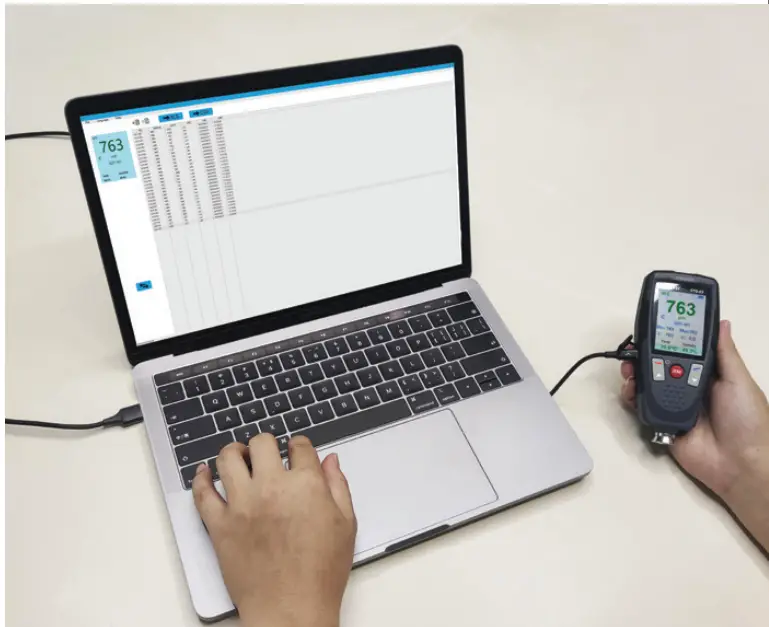

• USB interface for PC analysis software
• 10 levels of adjustable LCD backlight brightness
• Language selection: English, German, Italian, French, Chinese and Japanese

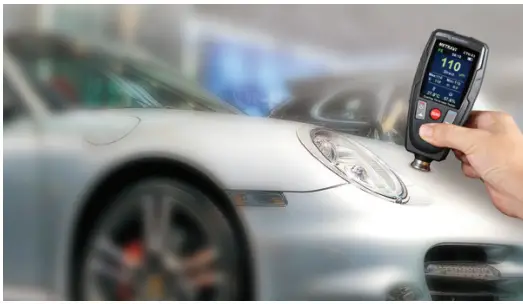

Application

• Designed for non-destructive, fast and precise coating thickness measurement, the principal applications lie in the field of corrosion protection and prevention.
• Ideal for manufacturers and their customers, for offices and specialist advisers, for paint shops and electroplaters, for the chemical, automobile, shipbuilding and aircraft industries, and for light and heavy engineering.
• Suitable for laboratory, workshop and outdoor use.
• Works on both principles, magnetic induction and eddy current.
• Single probe required for coating measurements, for both ferrous and non ferrous metal substrates.
• Adaptable to specific tasks: i.e. can be used on special geometries or on materials with special properties.

Accessories

Gauge/Meter with two AA 1.5V batteries, plastic carrying case, operating manual, steel and aluminum substrates, USB connecting cable, connect software.

Probe

• The probe system is spring-mounted in the probe sleeve, ensuring safe and stable positioning of the probe and constant contact pressure.
• A v-groove in the sleeve of the probe facilitates reliable readings on small cylindrical parts too.
• The hemispherical tip of the probe is made of hard and durable material. Hold the probe by the spring-mounted sleeve and press on object to be measured.

SPECIFICATIONS
