Indoor Wall Mount Pa Speaker - 6.5 Inch 50 Watt Surface Mountable Public Address Speaker-complete Features/instruction Guide

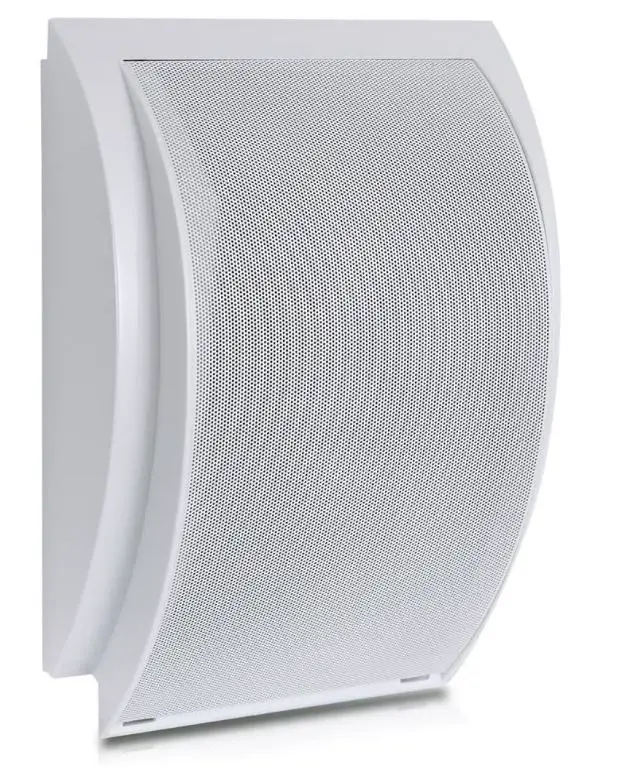

Indoor Wall Mount PA Speaker – 6.5 Inch 50 Watt Surface Mountable Public Address Speaker

Specifications

• Product Dimensions
  13.8 x 9.7 x 4.2 inches
• Item Weight
  3.83 pounds
• Speaker Type
  Component
• Recommended Uses For Product
  Music, Indoor, Public
• Mounting Type
  Wall Mount
• Brand
  Pyle

Introduction

For use with 70 W PA systems, these white 6.5″ Pyle indoor surface-mount speakers are available. It produces a maximum of 35 watts of clear sound that is ideal for the home or business. The impedance of 8 ohms. includes a mounting bracket, a 70 V transformer, and installation equipment. Transformer for 70 volts tapping on the 10/5/2.5 mark. Range of frequencies: 130 Hz to 15 kHz. 92dB SPL (at 1W/1m). Hardware & Mounting Bracket Included

Are you looking for an easy-to-install wall mount speaker? Look at the 6.5″ indoor surface mount PA wall speaker with a 70V transformer, the Pyle Pro PDWT6, which is ideal for any space that needs a full-range speaker. The 50-watt, 8-ohm speaker is powered by 70V and is claimed to offer full sound for home or commercial applications while maintaining a low profile. Hardware and a mounting bracket are included for simple installation.

What’s In the Box?

• Includes a 70 V transformer
• Mounting bracket
• Installation hardware

How to use

1. Careful attention should be required for the polarity when more than two speakers are in operation at the same place, otherwise, the sound of poor quality and/or sound pressure of low level will be reproduced Connection should be made in the same way as in the case of the battery, same polarity with parallel con nection and different polarity with the series connection.
2. When long wiring is called for, the low impedance connection invites large power loss, resulting in inefficient operation of speakers, In case wiring becomes longer than 50 meters, transformer and use with proper high impedance equip matching
3. Connect the speakers to equal the total input power (wattage ) to the output power of the amplifier for a high impedance connection. It means the imp- edance matching.
4. Do not operate the unit for an extended period of time with the sound distorting. This is an indication of malfunction, which in turn can cause heat to generate and result in a fire.

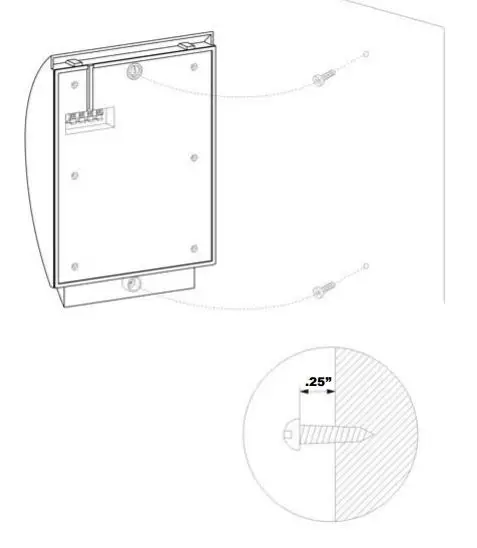

Mounting

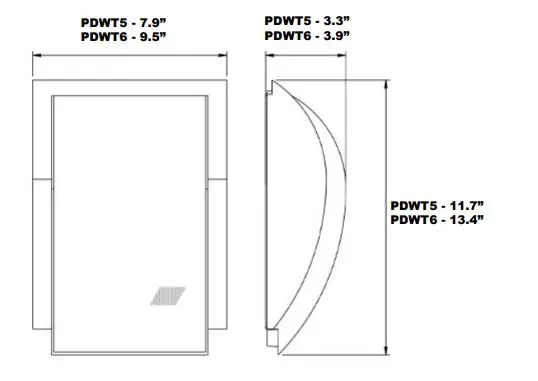

Dimensions

TRANSFORMER 70V

The Wall Mount PA Speaker has a 70-volt transformer tapping at 10/5/2.5, and it can be used with standard home audio amps and receivers thanks to its 8-ohm impedance. The product is designed to provide strong and rich sound for public addresses or music.

FREQUENCY RESPONSE

130Hz–15kHz Surface-mount 70V Pyle 6.5″ indoor speakers are compatible with 70W PA systems. It completes your PA system for full-range audio sound reproduction with a 130 Hz to 15 kHz frequency response and 92 dB SPL.

WALL MOUNT FORM

The Pyle speaker’s wall-mount design makes it easy to use. possesses handy speaker connectors that make connecting speaker wire to it for any custom installations simple and quick. Size in total is 13″ H x 9.5″ W x 4″ D.

POWER OF 50 WATTS

These wall-mountable public address speakers provide a 50W maximum power output and a clear sound that is ideal for the home or workplace. incredibly strong 8-ohm impedance rating included. Simple installation is provided with the mounting bracket and hardware.

HIGH-QUALITY SOUND REPRODUCTION

Carefully selected Pyle in-wall speaker systems were used to generate sound crystal clear and exceptionally responsive. Wide-ranging sound performance speakers may be secured, and the product’s lifespan can be increased.

Frequently Asked Questions

• Can these be used outside?
  Unfortunately, it is an indoor speaker only. the following are indoor-outdoor suggestions for you.
• What is the maximum number of speakers that can be daisy-chained?
  yes, this answer is correct “It depends on the amplifier, rule of thumb, the total load should not exceed 80% of the max output of the Amp (power values in RMS)”
• Does the speaker have a volume button?
  unfortunately no. The unit doesn’t have a volume control button. All the controls will be on the device connected to this speaker.
• How does music sound on these vs PA?
  These speakers are very limited in their sound reproduction due to the 70v transformer they use. The transformer limits the low and the high end; I would recommend their use for voice only.
• Can these be daisy-chained?
  Yes, the speakers may be ‘daisy-chained. By that I mean that if your amplifier has a 70 Volt transformer output you may connect multiple speakers such as these that way. Also, remember to connect each speaker in parallel and keep the polarity connection consistent with every speaker.
• Can you use this outside?
  These are not all-weather speakers. If outside, they would need to be at least under an overhang that kept them from getting wet, and even then I would be hesitant.
• Is this wireless Bluetooth
  This is not a wireless Bluetooth speaker. It is only wired to work with a 70-volt transformer signal like some public address amplifiers use
• Can my speakers be mounted on the wall?
  Theoretically, a surround sound system’s speakers may all be positioned on walls. Even hanging some subwoofers on a wall is an option. Normally, a subwoofer’s sheer size would make this alternative unworkable. Similarly, tower speakers are meant to be placed on the floor rather than against a wall.
• Do wall-mounted speakers require insulation?
  To enhance sound quality, think about adding some R-13 insulation to the wall cavity beneath the speakers. Insulation is typically pre-cut for breadth; all that is required is for you to cut it to length and insert it into the gap behind the speakers.
• How do built-in speakers function?
  In-wall speakers are tuned while they are installed in a wall. When you get the speakers home and install them, the system will sound identical to that of a speaker positioned farther away from you in the room because the enclosure and the drivers were all designed with this in mind.
• I need how many PA speakers?
  You should estimate 6–8 watts per participant for an indoor occasion as a very rough rule of thumb. if you want a disco vibe for a music-filled event, such a wedding reception. You can increase this value by two and add subwoofers for more bass.
