Climate IP7-Black Indoor-Outdoor Wall Mount Speaker
User’s Manual

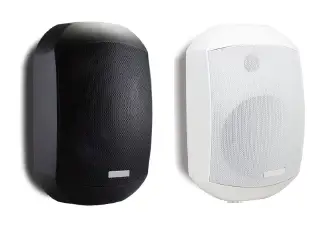

Indoor/Outdoor Wall Mount Speaker
Climate IP7-Black
Climate IP7-Pearl
User’s Manual
Installation

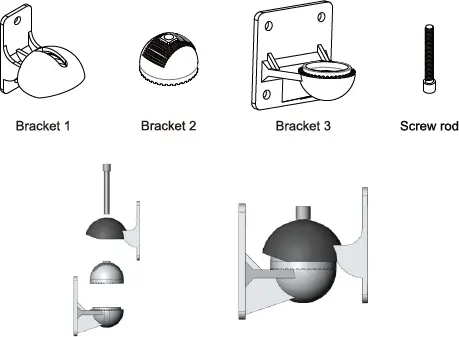

Bracket Accessories
Split the mounting bracket into 1,2,3, three parts. Fit two six point screws into the mounting slot of the speaker’s back (parallel to the wall speaker to help fit the screws
When placing speakers horizontally, be careful not to touch and load the front of the speaker net with hard facing, otherwise it will deform the front net.
Installation
1. Fix the Bracket 1 as shown, tighten the screws according to the installation plan

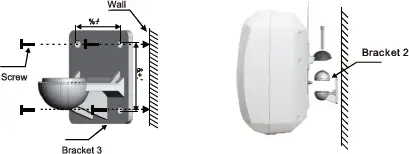

2. According to the installation plan, after drilling the hole position on the wall, the bracket 3 is fixed on the wall surface. Then the bracket 1, bracket 2, bracket 3 is assembled as shown. Make sure that the bracket is securely mounted (3 parts of the fastening bracket are
supplied with screws.)

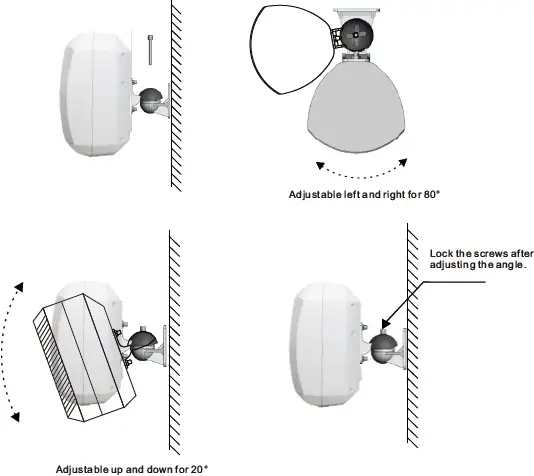

3.According to the installation plan in the adjustable range, adjust the most appropriate
height, and then tighten the screws.
Features
- All weather loudspeakers for music and speech.
- Stylish design with great sound
- IP66 waterproof finish for all extreme weather applications
- 6.5″ weatherproof woofer and 1” silk tweeter 2-way speaker system
- ABS enclosure, stainless metal grille & stainless mounting bracket
- Power output 40W-20W-10W-OFF & 8Ω 60W
- 70V/100V speaker with power tapping or as a low impedance 8 Ohm speaker
- Supplied with 360° rotatable bracket for horizontal and vertical installation angle
adjustment - Black and white color optional
Specification
| SPECIFICATIONS | Climate IP7-Black | Climate IP7-Pearl |
| Power Taps | 40W/20W/10W/OFF/8Ω | |
| Power at 8ohm | 60W | |
| SPL@ 1M | 94±3dB | |
| Max SPL@ 1M | 112dB | |
| Freq. Response | 65-20KHz | |
| Dispersion Angel | Vertical: 180° and Horizontal: 180° (1KHz) | |
| Product Size | 195×185×315mm | |
| Installation | Wall Mount | |
| Enclosure Material | ABS enclosure, stainless metal grille & stainless mounting bracket | |
| Weight | 3.5kg | |
| Finish | Black | White |
| Speaker | 6.5″ weatherproof woofer and 1″ silk tweeter | |
