PDISTPDL54

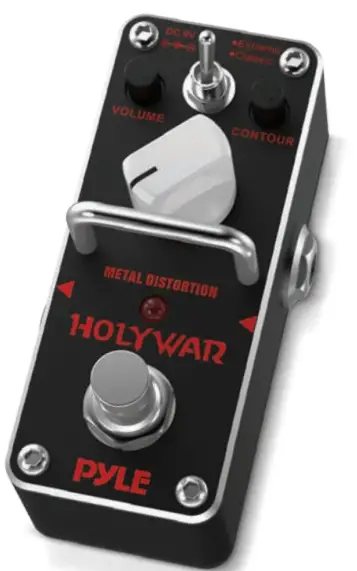

Heavy Metal Guitar Distortion Pedal
Holy War AHOR-,2Model, True Bypass
USER GUIDE

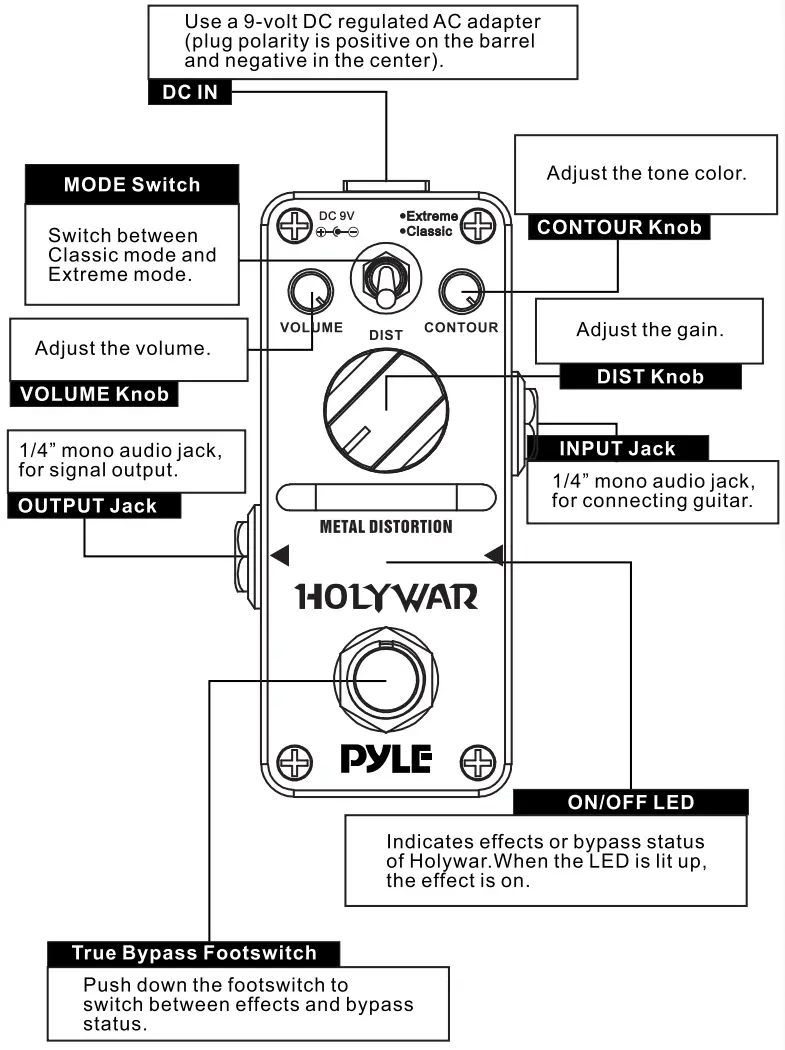

Features:
- 2 Modes: Extreme and Classic Easy Control
- Volume Knob: Adjust the volume
- Contour Knob: Adjust the tone
- Optimal Circuit Design
- High-Quality Electronic Components and Circuit Design
- Reliable Aluminum Alloy Casing
- LED Indicator shows the Working State
What’s in the Box:
- Effect Pedal
- Adapter
- Velcro
Technical Specs:
- Construction Material: Metal
- Delay Time: 20ms-300ms
- Input Impedance: 1M Ohms
- Output Impedance: 470 Ohms
- Power Supply: AC Adapter 9V DC
- Current Draw: 20mA
- Input & Output Jack: 1/4” Mono Audio Jack
- Product Dimensions: 3.7” x 1.7” x 1.9” -inches
California Prop 65 Warning
WARNING:
This product contains lead (Pb) which is known to the state of California to cause cancer birth defects and other reproductive harm. Do not ingest.
For more info go to: www.P65warnings.ca.gov
Questions? Comments?
We are here to help!
Phone: (1) 718-535-1800
Email:[email protected]
True Bypass Footswitch
Push down the footswitch to switch between effects and bypass status
