BOSCH logo

Keo

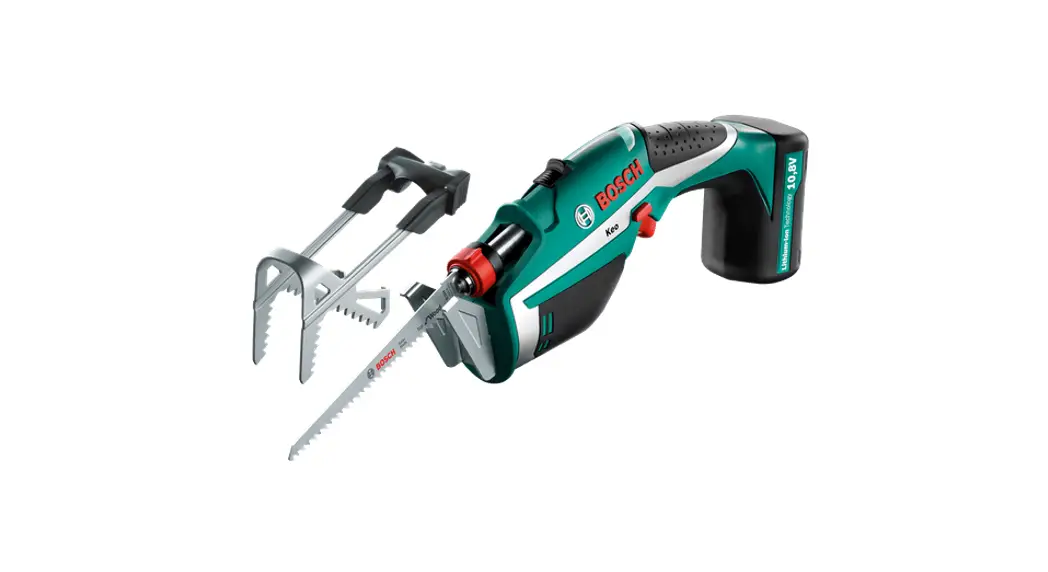

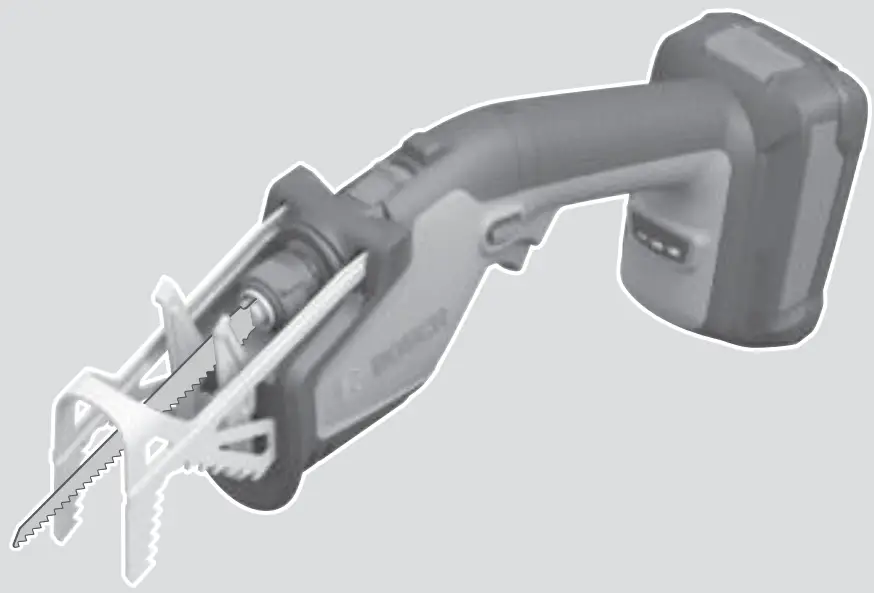

BOSCH KEO Cordless Garden Saw

BOSCH KEO Cordless Garden Saw - icon1

Original instructions BOSCH KEO Cordless Garden Saw - icon2

Safety Notes

Explanation of symbols

Danger iconRead instruction manual.
warning 2General hazard safety alert.
BOSCH KEO Cordless Garden Saw - icon3WARNING: Keep bystanders away.
BOSCH KEO Cordless Garden Saw - icon4Remove battery before adjusting or cleaning, and before leaving the machine unattended for any period.
BOSCH KEO Cordless Garden Saw - icon5Do not expose to rain.
BOSCH KEO Cordless Garden Saw - icon6Do not use a garden hose to clean the machine.
RYOBI Hanging Wall Cabinet STH401 - symbolWear eye protection.
TrimmerPlus TPE720 Universal 7 5 in Edger String Trimmer - icon2Wear hand protection.
BOSCH KEO Cordless Garden Saw - icon7Keep hands away from blade.

General Power Tool Safety Warnings
warning 2 WARNING
Read all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/ or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated  (cordless) power tool.

Work area safety
symbolKeep the work area clean and well-lit. Cluttered or dark areas invite accidents.
symbol Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks that may ignite dust
or fumes.
symbol Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety
symbolPower tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce the risk of electric shock.
symbolAvoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges, and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
symbol Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. u Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
symbol When operating a power tool outdoors, use an extension cord suitable for outdoor use. The use of a cord suitable for outdoor use reduces the risk of electric shock.
symbolIf operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. The use of an RCD reduces the risk of electric shock. Personal safety
symbolStay alert, watch what you are doing, and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
symbolUse personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
symbol Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
symbolRemove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
symbolDo not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
symbol Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
symbolIf devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
symbol Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second. Power tool use and care
symbol Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
symbol Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
symbol Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
symbol Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
symbol Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
symbol Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
symbol Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
symbol Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
Battery tool use and care
symbolRecharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
symbol Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
symbol When the battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
symbol Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
symbol  Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
symbolDo not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause an explosion.
symbolFollow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

Service
symbol Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
symbolNever service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Safety instructions for reciprocating saws

symbol Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.
symbolUse clamps or another practical way to secure and support the workpiece to a stable platform. Holding the workpiece by hand or against your body leaves it unstable and may lead to loss of control.
symbol Do not use the power tool with the hook without rubber covers or with damaged rubber covers. If the rubber covers on the hook are damaged, replace the hook by a new one.
symbol Keep hands away from the sawing area. Do not reach under the workpiece. Contact with the saw blade can lead to injuries.
symbolOnly bring the power tool into contact with the workpiece when switched on. Otherwise, there is a danger of kickback if the cutting tool jams in the workpiece.
symbol Ensure that the footplate is always resting on the workpiece while sawing. The saw blade can jam and lead to loss of control over the power tool.
symbol When the cut is completed, switch off the power tool and then pull the saw blade out of the cut only after it has come to a standstill. In this manner, you can avoid kickback and can place down the power tool securely.
symbolAlways wait until the power tool has come to a complete stop before placing it down. The application tool can jam and cause you to lose control of the power tool.
symbolUse only undamaged saw blades that are in perfect condition. Bent or dull saw blades can break, negatively influence the cut, or lead to kickback.
symbol Do not brake the saw blade to a stop by applying side pressure after switching off. The saw blade can be damaged, break or cause kickback.
symbol Ensure that the material is securely clamped. Do not support the workpiece using your hands or feet. Do not touch any objects or the floor with the saw while it is running. There is a risk of kickback.
symbolUse suitable detectors to determine if there are hidden supply lines or contact the local utility company for assistance. Contact with electric cables can cause fire and electric shock. Damaging gas lines can lead to explosions. Breaking water pipes causes property damage.
symbol Before any work on the machine (e. g. maintenance, changing the tool, etc.) as well as during its transport and storage, always remove the battery and lock the On/Off switch in the off position. The danger of injury when accidentally actuating the On/Off switch.
symbol Wear gloves, saw blades are sharp and can become hot during cutting.
symbolUse a dust mask when cutting wood that has been treated with a chemical wood preservative.
symbol Do not modify any components on the machine.
The danger of injury.
symbol Use only original Bosch accessories.

Safety Instructions and Recommendations for Optimal Handling of the Battery
symbol Ensure the product is switched off before inserting the battery. Inserting the battery into a product that has the switch on can cause accidents.
symbolUse only Bosch batteries intended specifically for this product. The use of any other batteries may create a risk of injury and fire.
symbolDo not open the battery. There is a risk of short-circuiting.

BOSCH KEO Cordless Garden Saw - icon16 Protect the battery against heat (e.g., against continuous intense sunlight), fire, water, and moisture. There is a risk of explosion.

symbol Keep the battery not used away from paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
symbol In case of damage and improper use of the battery pack, vapors may be emitted. Ventilate the area and seek medical help in case of complaints. The vapors can irritate the respiratory system.
symbolOnly use the battery with products from the manufacturer. This is the only way in which you can protect the battery against dangerous overload.
symbol The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat.
symbol Do not short-circuit the battery. There is a risk of explosion.
symbolProtect the battery against moisture and water.
symbol Store the product and battery only within a temperature range between –20 °C and 50 °C. As an example, do not leave the battery in the car in summer.
symbol Occasionally clean the venting slots of the battery using a soft, clean, and dry brush.

Symbols
The following symbols are important for reading and understanding the original instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the product in a better and safer manner.

Symbol Meaning
BOSCH KEO Cordless Garden Saw - icon17Only use the battery charger indoors in dry conditions.
BOSCH KEO Cordless Garden Saw - icon9Movement direction
BOSCH KEO Cordless Garden Saw - icon10Reaction direction
BOSCH KEO Cordless Garden Saw - icon11Switching on
BOSCH KEO Cordless Garden Saw - icon12Switching off
BOSCH KEO Cordless Garden Saw - icon13Permitted action
BOSCH KEO Cordless Garden Saw - icon14Prohibited action
BOSCH KEO Cordless Garden Saw - icon15Accessories/Spare parts

Product description and specifications

Danger icon Read all safety warnings and all instructions. Failure to follow the safety warnings and instructions may result in electric shock, fire, and/or serious injury. Please observe the illustrations at the ending of this operatingmanual.

Intended use
This power tool is intended for garden and household use. It is for cutting branches and can also be used for the sawing of wood, soft metal (such as copper), and plasterboard.
It is suitable for straight and curved cuts. The saw blade recommendations must be observed.

Product Features (see figure A)

  1. Removable hook
  2. Saw blade holder
  3. Lock for saw blade
  4. Lock for hook
  5. Battery charge-control indicator
  6. On/Off switch
  7. Lock-off button for On/Off switch
  8. Saw blade
  9. Battery
  10. Charger a)
  11. Handle (insulated gripping surface)
  12. Battery unlocking button

a) Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.

Technical Data

Sabre sawKeo
Article number3 600 H61 A..
Rated voltageV Direct Current18
Stroke rate at no load nomin¹ 0 – 2300
Tool holderSDS
Strokemm20
– in woodmm80
– in soft metalmm7
Weight according to EPTA-Procedure 01:20148)kg1.4
Recommended ambient temperature during charging°C0… +35
Permitted ambient temperature during operation A) and storage°C-20… +50
Battery type _PBA 18V…W-. 1.5 Ah, 2.0 Ah, 2.5 Ah, 3.0 Ah, 4.0 Ah, 5.0 Ah, 6.0 Ah

A) Limited performance at temperatures < 0 °C
B) Depends on battery in use
The specifications apply to a rated voltage [U] of 230 V. These specifications may vary at different voltages and in country-specific models.

Noise/Vibration Information
Noise emission values were determined according to EN 62841-2-11.
Typically the A-weighted sound pressure level of the product is 74 dB(A). Uncertainty K = 5 dB. The noise level when working can exceed the declared values.

Wear hearing protection!
Vibration total values ah (triax vector sum) and uncertainty K determined according to EN 62841-2-11: Sawing chipboard with saw blade S 644 D: ah,B = 19 m/s2, = 1.5 m/s2
,Sawing wood beams with saw blade S 644 D: ah,WB = 20 m/s2, K = 1.5 m/s2.

That the declared vibration total value(s) and the declared noise emission value(s) have been measured in accordance with a standard test method and may be used for comparing one tool to another. That the declared vibration total value(s) and the declared noise emission value(s) may also be used in a preliminary assessment of exposure. That the vibration and noise emissions during actual use of the power tool can differ from the declared values depending on the ways in which the tool is used especially what kind of workpiece is processed; and the need to identify safety measures to protect the operator that is based on an estimation of the exposure measures in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

Mounting and Operation

ActionFigurePage
Delivery scopeA203
Mounting the HookB204

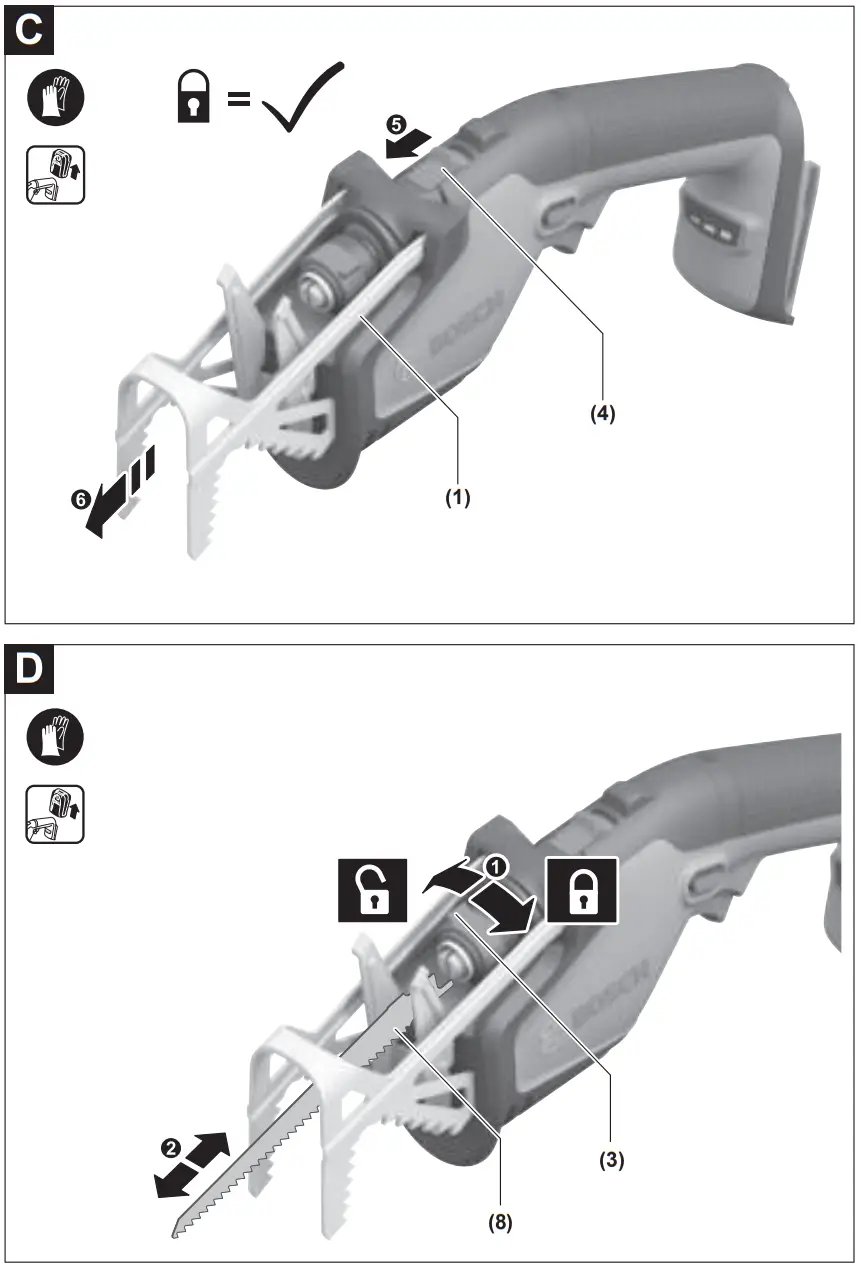

Checking if the Hook fits correctlyC205
Inserting/Replacing the Saw BladeD205

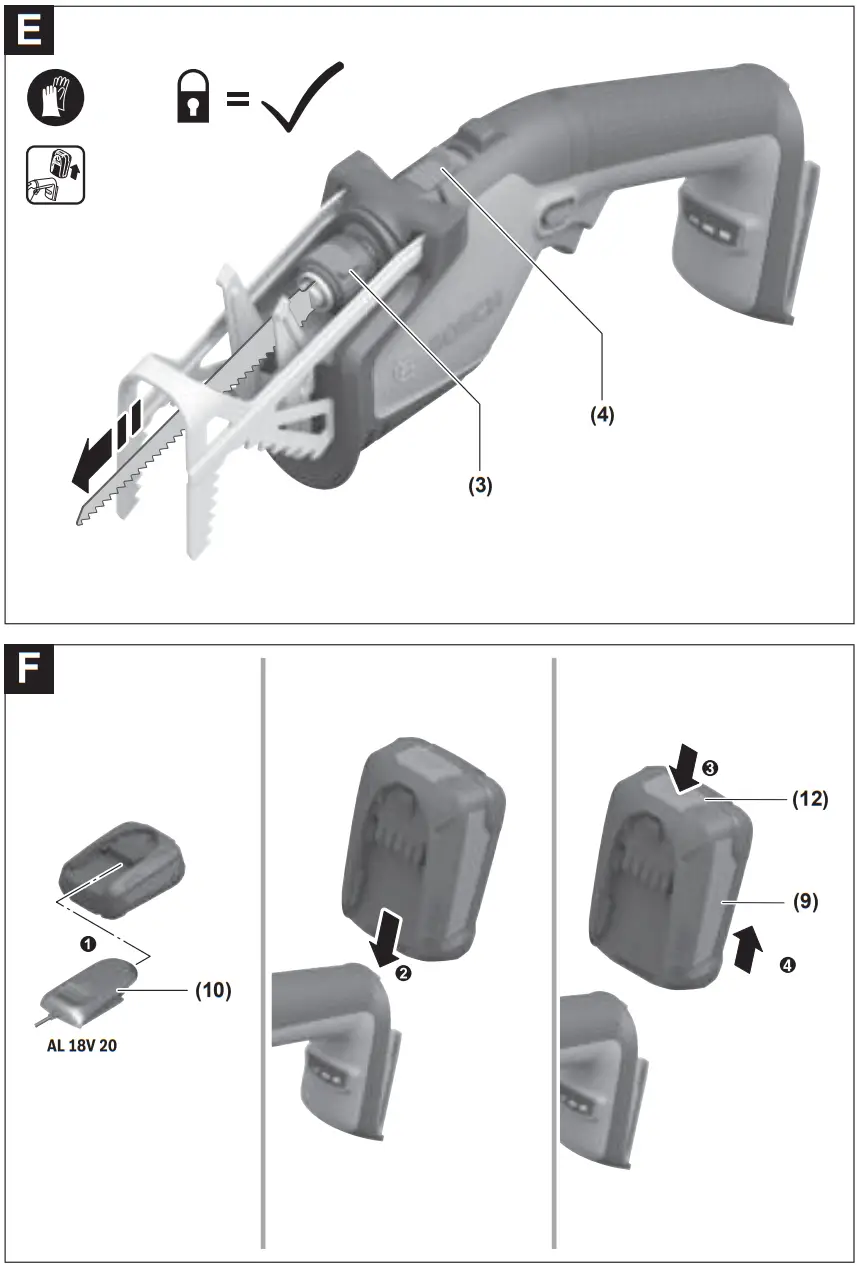

Checking if the Blade is connectedE206
Inserting/removing the batteryF206
Switching on and off/Controlling the Stroke RateG – H207

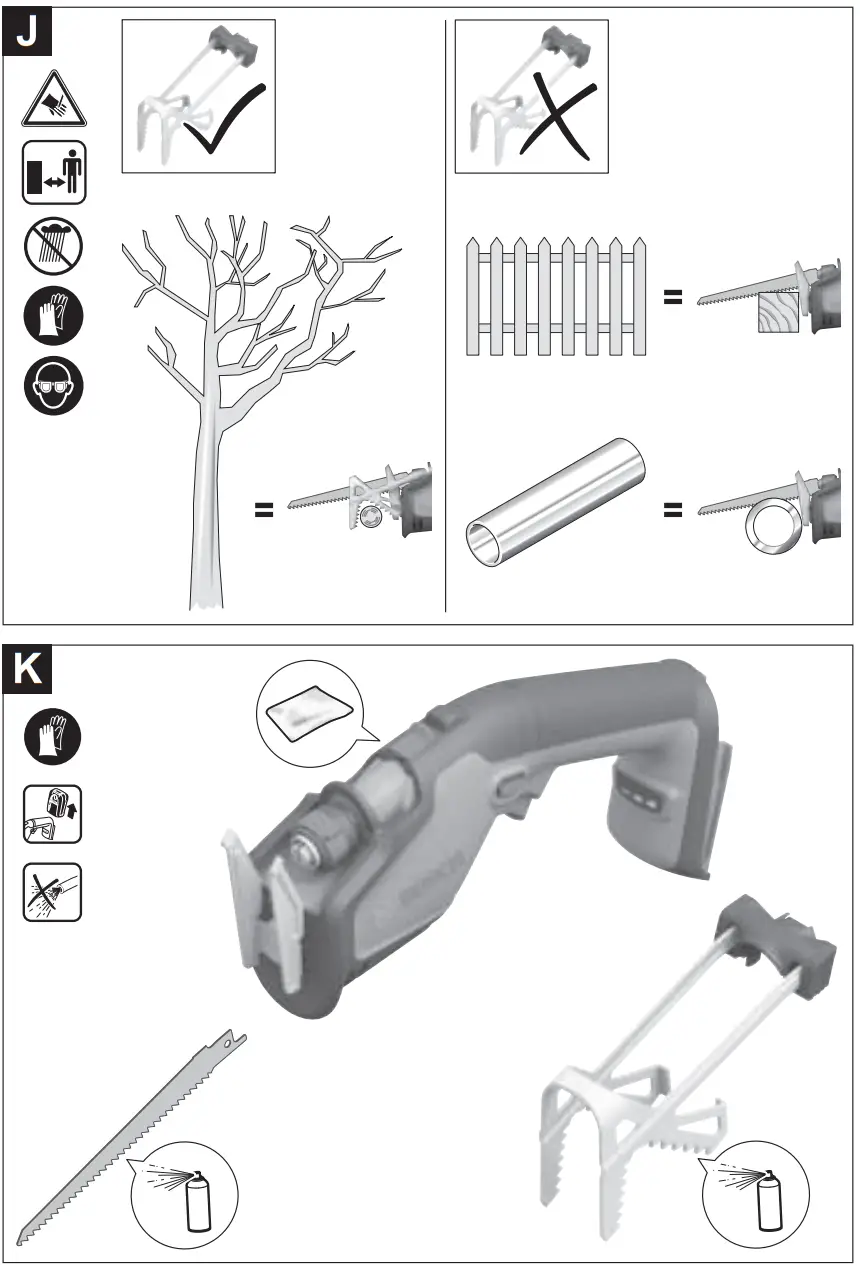

Working AdviceI – J208 – 209
Maintenance and cleaningK209

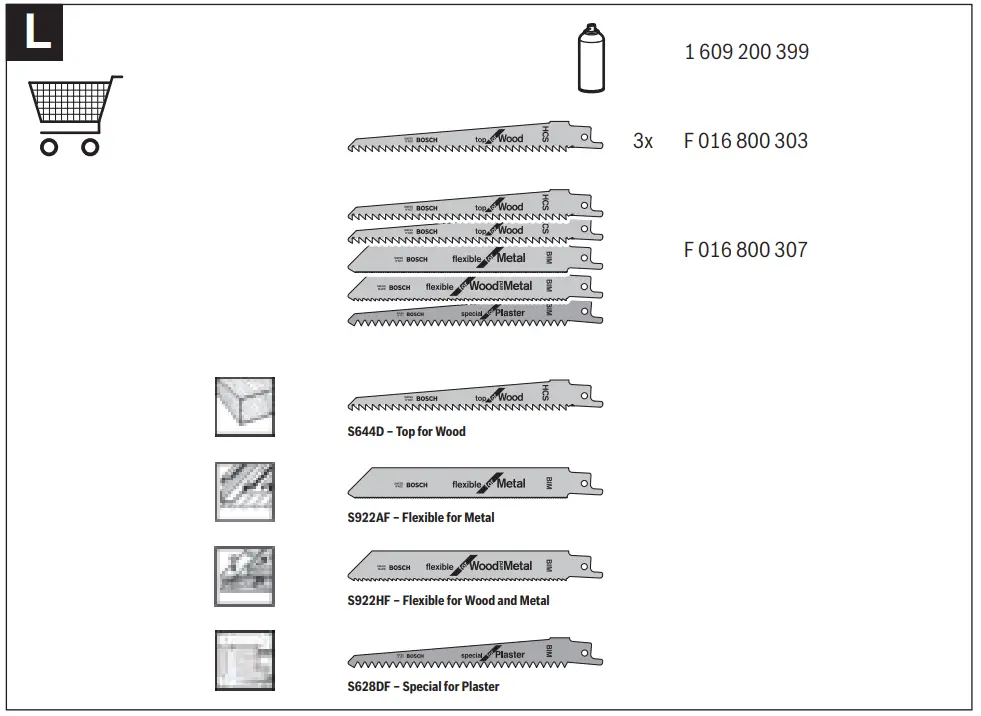

Selecting accessoriesL210

Starting Operation

symbol Remove the battery from the power tool before carrying out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be removed for transport and storage. There is a risk of injury from unintentionally pressing the on/off switch.

Inserting/removing the battery (see figure F)
Note: Using unsuitable batteries can lead to malfunctions of or cause damage to the power tool. Insert the charged battery (9). Make sure that the battery is fully fitted. To remove the battery (9) from the machine, press the battery unlocking button (12) and pull the battery out.

Battery charge indicator
The battery charge indicator (5) indicates the remaining battery capacity or an overload when the power tool is switched on.

LEDCapacity
Continuous lighting 3 x green≥ 75 %
Continuous lighting 2 x green40 − 75 %
Continuous lighting 1 x green15 − 40 %
Slow flashing 1 x green0 − 15 %

Operation

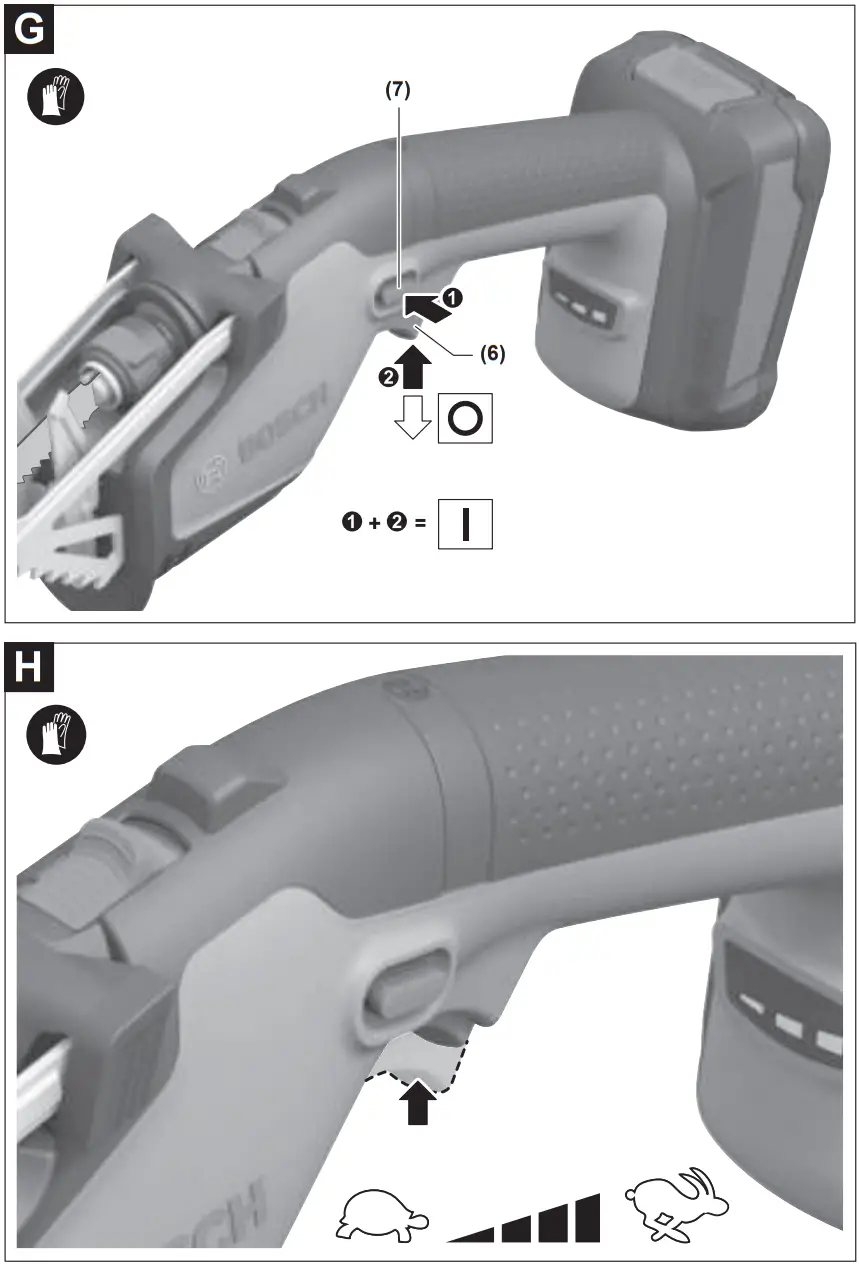

Switching on and off (see figure G)
Firstly, press the lock-off button (7) and then the On/Off switch(6). You can release the lock-off button (7) when the power tool is running. The lock-off button (7) engages again as soon as the power tool comes to a complete stop.

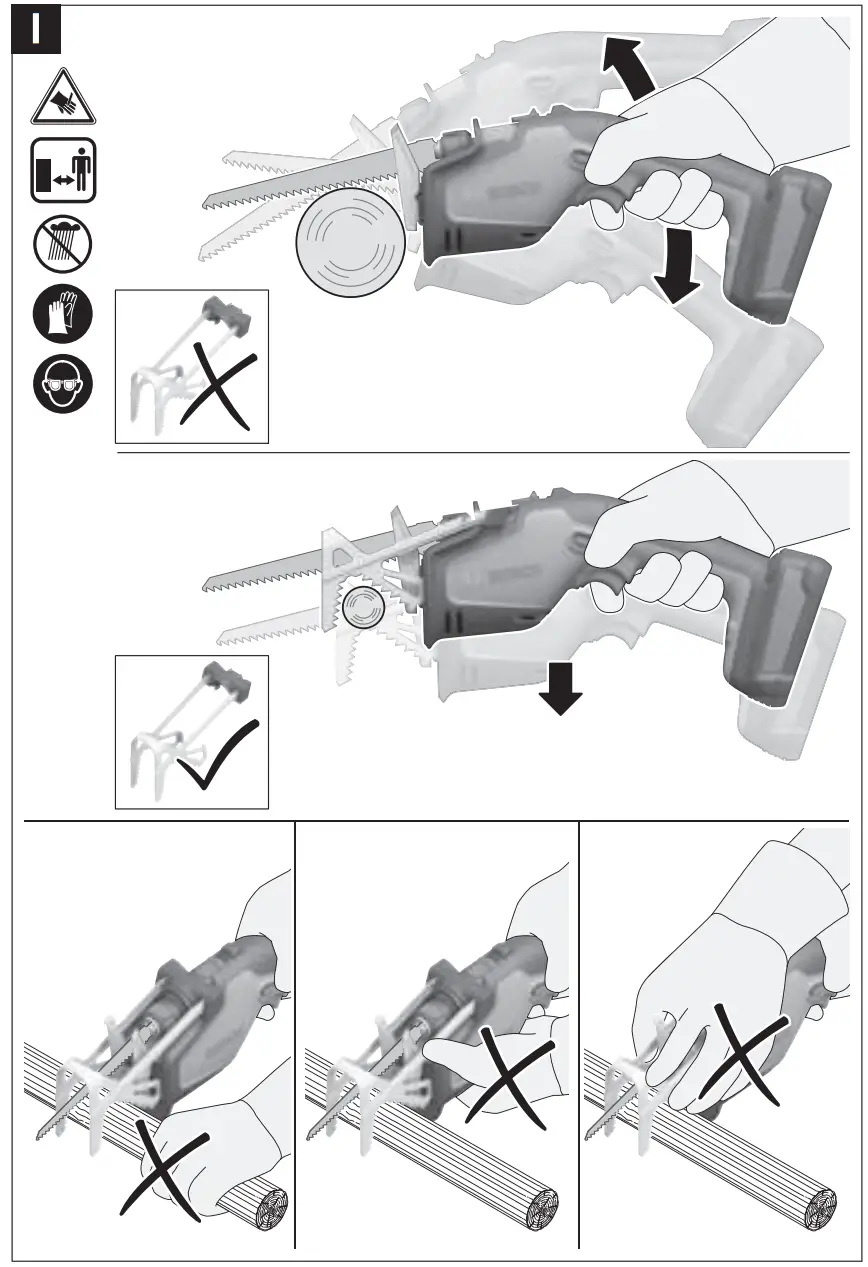

Working Advice
symbol Always follow the safety advice provided.

Selecting the saw blade
Use only saw blades suitable for the material being worked. An overview of recommended saw blades can be found at the end of these operating instructions. Do not use other
blades than recommended. Use a narrow saw blade when sawing tight curves.

Dust/Chip Extraction
Dust from materials such as lead-containing coatings, some wood types, minerals, and metal can be harmful to one’s health. Touching or breathing in the dust can cause allergic
reactions and/or lead to respiratory infections of the user or bystanders. Certain dust, such as oak or beech dust, is considered carcinogenic, especially in connection with wood-treatment additives (chromate, wood preservative). Materials containing asbestos may only be worked by specialists.
– Provide for good ventilation of the working place.
– It is recommended to wear a P2 filter-class respirator.
Observe the relevant regulations in your country for the materials to be worked.
symbol Avoid dust accumulation at the workplace. Dust can easily ignite.

Troubleshooting

TrimmerPlus TPE720 Universal 7 5 in Edger String Trimmer - icon2
Sabre saw

Problem
Power tool fails to op- erate
Possible Cause Battery dischargedCorrective Measure
Recharge battery; also see “Battery Charging”
Power tool defectiveContact Service Agent.
Internal wiring of garden tool defectiveContact Service Agent.
Power tool functions intermittentlyOn/Off switch defectiveContact Service Agent.
Excessive vibrations/ noisePower tool defectiveContact Service Agent.
Sawing time per battery charge too lowThe blade holder area needs cleaningHold the tool to point to the ground and start to operate
Saw blade wornChange saw blade
Poor sawing techniquesee “Working Advice”
Battery is not fully chargedRecharge battery; also see “Battery Charging”
The saw blade is run- ning slowThe battery is getting dischargedRecharge battery; also see “Battery Charging”
Overloaded during operationReduce pressing force of tool against branch

Maintenance and Service

Maintenance, Cleaning, and Storage
symbol Always follow the safety advice provided.

Clean the power tool and the saw blade mount regularly if material accumulates and can hinder movement. Clean the saw blade mount preferably with compressed air or with a soft brush. For this, remove the saw blade from the power tool. Ensure proper operation of the saw blade holder by applying a suitable lubricant. Heavy contamination of the machine can lead to malfunctions. Therefore, do not saw materials that produce a lot of dust from below or overhead. Store the power tool in a secure, dry place, out of the reach of children. Do not place other objects on the power tool.

Battery Maintenance
Use the following procedures to enable optimum usage of the battery:
– Protect the battery against moisture and water.
– Store the machine and battery only within a temperature range between –20 °C and 50 °C . As an example, do not leave the battery in the car in summer.
– It is recommended that the battery is not stored within the product but stored separately.
– Do not leave the battery in the product in direct sunlight.
– The ideal storage condition for the battery is 5 °C.
– Occasionally clean the venting slots of the battery using a soft, clean and dry brush.
A significantly reduced working period after charging indicates that the battery is used and must be replaced.

After-Sales Service and Application Service Our after-sales service responds to your questions concerning the maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com The Bosch product use advice team will be happy to help you with any questions about our products and their accessories. In all correspondence and spare parts orders, please always include the 10‑digit article number given on the nameplate of the product.

Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham Uxbridge
UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.
Tel. Service: (0344) 7360109
E-Mail: [email protected]

You can find further service addresses at: www.bosch-pt.com/serviceaddresses

Transport The recommended lithium-ion batteries are subject to legislation on the transport of dangerous goods. The user can transport the batteries by road without further requirements. When shipping by third parties (e.g.: by air transport or forwarding agency), special requirements on packaging and labeling must be observed. For the preparation of the item being shipped, consulting an expert for hazardous material is required. Dispatch battery packs only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe the possibility of more detailed national regulations.

Disposal
BOSCH KEO Cordless Garden Saw - icon8 The product, batteries, accessories, and packaging should be sorted for environmental-friendly recycling.
SONY MDR-RF855RK Wireless Stereo Headphone System - warningDo not dispose of the product and batteries/rechargeable batteries into household waste!

Only for EU countries:
According to the European Guideline 2012/19/EU, products that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery  acks/
batteries must be collected separately and disposed of in an environmentally correct manner.

Only for the United Kingdom
According to Waste Electrical and Electronic Equipment Regulations, 2013 (2013/3113) and the Waste Batteries and Accumulators Regulations 2009 (2009/890), power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

Battery packs/batteries:
Li-ion:
Please observe the notes in the section on transport (see “Transport”, page 15).

GB Importer:
Robert Bosch Ltd.
Broadwater Park
North Orbital Road
Uxbridge UB9 5HJ

BOSCH KEO Cordless Garden Saw - fig1BOSCH KEO Cordless Garden Saw - fig2
BOSCH KEO Cordless Garden Saw - fig3BOSCH KEO Cordless Garden Saw - fig4
BOSCH KEO Cordless Garden Saw - fig5BOSCH KEO Cordless Garden Saw - fig6
BOSCH KEO Cordless Garden Saw - fig7BOSCH KEO Cordless Garden Saw - fig8

Licenses

Apache License
Copyright © 2009-2019 Arm Limited. All rights reserved.
Copyright © 2018-2019 STMicroelectronics. All rights reserved.
Version 2.0, January 2004 http://www.apache.org/licenses/ TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION

  1. Definitions. “License” shall mean the terms and conditions for use, reproduction, and distribution as defined by Sections 1 through 9 of this document. “Licensor” shall mean the copyright owner or entity authorized by the copyright owner that is granting the License. “Legal Entity” shall mean the union of the acting entity and all other entities that control, are controlled by, or are under common control with that entity. For the purposes of this definition, “control” means (i) the power, direct or indirect, to cause the direction or management of such entity, whether by contract or otherwise, or (ii) ownership of fifty percent (50%) or more of the outstanding shares, or (iii) beneficial ownership of such entity. “You” (or “Your”) shall mean an individual or Legal Entity exercising permissions granted by this License. “Source” form shall mean the preferred form for making modifications, including but not limited to software source code, documentation source, and configuration files. “Object” form shall mean any form resulting from mechanical transformation or translation of a Source form, including but not limited to compiled object code, generated documentation, and conversions to other media types. “Work” shall mean the work of authorship, whether in Source or Object form, made available under the License, as indicated by a copyright notice that is included in or attached to the work (an example is provided in the Appendix below). “Derivative Works” shall mean any work, whether in Source or Object form, that is based on (or derived from) the Work and for which the editorial revisions, annotations, elaborations, or other modifications represent, as a whole, an original work of authorship. For the purposes of this License, Derivative Works shall not include works that remain separable from, or merely link (or bind by name) to the interfaces of, the Work and Derivative Works thereof. “Contribution” shall mean any work of authorship, including the original version of the Work and any modifications or additions to that Work or Derivative Works thereof, that is intentionally submitted to Licensor for inclusion in the Work by the copyright owner or by an individual or Legal Entity authorized to submit on behalf of the copyright owner. For the purposes of this definition, “submitted” means any form of electronic, verbal, or written communication sent to the Licensor or its representatives, including but not limited to communication on electronic mailing lists, source code control systems, and issue tracking systems that are managed by, or on behalf of, the Licensor for the purpose of discussing and improving the Work, but excluding communication that is conspicuously marked or otherwise designated in writing by the copyright owner as “Not a Contribution.” “Contributor” shall mean Licensor and any individual or Legal Entity on behalf of whom a Contribution has been received by Licensor and subsequently incorporated within the Work.
  2. Grant of Copyright License. Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable copyright license to reproduce, prepare Derivative Works of, publicly display, publicly perform, sublicense, and distribute the Work and such Derivative Works in Source or Object form.
  3. Grant of Patent License. Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable (except as stated in this section) patent license to make, have made, use, offer to sell, sell, import, and otherwise transfer the Work, where such license applies only to those patent claims licensable by such Contributor that is necessarily infringed by their Contribution(s) alone or by a combination of their Contribution(s) with the Work to which such Contribution(s) was submitted. If You institute patent litigation against any entity (including a cross-claim or counterclaim in a lawsuit) alleging that the Work or a Contribution incorporated within the Work constitutes a direct or contributory patent infringement, then any patent licenses granted to You under this License for that Work shall terminate as of the date such litigation is filed.
  4. Redistribution.You may reproduce and distribute copies of the Work or Derivative Works thereof in any medium, with or without modifications, and in Source or Object form, provided that You meet the following conditions: – You must give any other recipients of the Work or Derivative Works a copy of this License; and – You must cause any modified files to carry prominent notices stating that You changed the files; and – You must retain, in the Source form of any Derivative Works that You distribute, all copyright, patent, trademark, and attribution notices from the Source form of the Work, excluding those notices that do not pertain to any part of the Derivative Works; and – If the Work includes a “NOTICE” text file as part of its distribution, then any Derivative Works that You distribute must include a readable copy of the attribution notices contained within such NOTICE file, excluding those notices that do not pertain to any part of the Derivative Works, in at least one of the following places: within a NOTICE text file distributed as part of the Derivative Works; within the Source form or documentation, if provided along with the Derivative Works; or, within a display generated by the Derivative Works, if and wherever such third-party notices normally appear. The contents of the NOTICE file are for informational purposes only and do not modify the License. You may add Your own attribution notices within Derivative Works that You distribute, alongside or as an addendum to the NOTICE text from the Work, provided that such additional attribution notices cannot be construed as modifying the License. You may add Your own copyright statement to Your modifications and may provide additional or different license terms and conditions for use, reproduction, or distribution of Your modifications, or for any such Derivative Works as a whole, provided Your use, reproduction, and distribution of the Work otherwise complies with the conditions stated in this License.
  5. Submission of Contributions. Unless You explicitly state otherwise, any Contribution intentionally submitted for inclusion in the Work by You to the Licensor shall be under the terms and conditions of this License, without any additional terms or conditions. Notwithstanding the above, nothing herein shall supersede or modify the terms of any separate license agreement you may have executed with the Licensor regarding such Contributions.
  6. Trademarks. This License does not grant permission to use the trade names, trademarks, service marks, or product names of the Licensor, except as required for reasonable and customary use in describing the origin of the Work and reproducing the content of the NOTICE file.
  7. Disclaimer of Warranty. Unless required by applicable law or agreed to in writing, Licensor provides the Work (and each Contributor provides its Contributions) on an “AS IS” BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied, including, without limitation, any warranties or conditions of TITLE, NON-INFRINGEMENT, MERCHANTABILITY, or FITNESS FOR A PARTICULAR PURPOSE. You are solely responsible for determining the appropriateness of using or redistributing the Work and assume any risks associated with Your exercise of permissions under this License.
  8. Limitation of Liability. In no event and under no legal theory, whether in tort (including negligence), contract, or otherwise, unless required by applicable law (such as deliberate and grossly negligent acts) or agreed to in writing, shall any Contributor be liable to You for damages, including any direct, indirect, special, incidental, or consequential damages of any character arising as a result of this License or out of the use or inability to use the Work (including but not limited to damages for loss of goodwill, work stoppage, computer failure or malfunction, or any and all other commercial damages or losses), even if such Contributor has been advised of the possibility of such damages.
  9. Accepting Warranty or Additional Liability. While redistributing the Work or Derivative Works thereof, You may choose to offer, and charge a fee for, acceptance of support, warranty, indemnity, or other liability obligations and/or rights consistent with this License. However, in accepting such obligations, You may act only on Your own behalf and on Your sole responsibility, not on behalf of any other Contributor, and only if You agree to indemnify, defend, and hold each Contributor harmless for any liability incurred by, or claims asserted against, such Contributor by reason of your accepting any such warranty or additional liability. END OF TERMS AND CONDITIONS

Copyright © 2020 STMicroelectronics
All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

– Redistributions of source code must retain the above copyright notice, this list of conditions, and the following disclaimer.
– Redistributions in binary form must reproduce the above copyright notice, this list of conditions, and the following disclaimer in the documentation and/or other materials provided with the distribution.
– Neither the name of STMicroelectronics nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Robert Bosch Power Tools GmbH
70538 Stuttgart
GERMANY
www.bosch-pt.com

BOSCH KEO Cordless Garden Saw - bar

References

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.


Related Manuals
