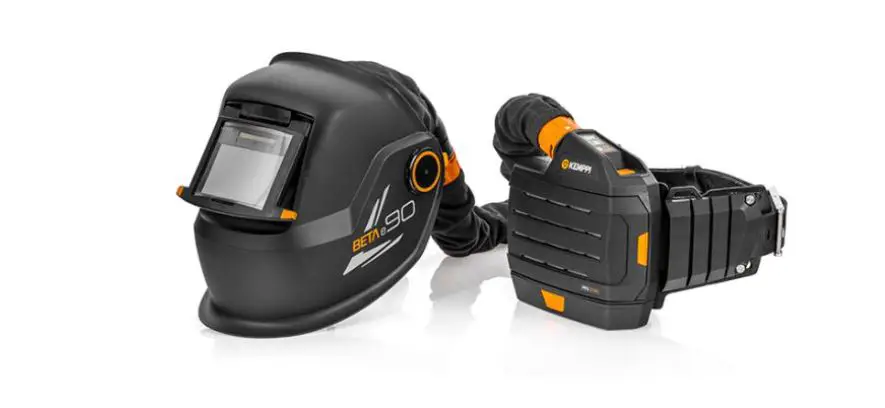

KEMPPI Beta e90P SH Welding Mask with a Passive Welding Filter
Package inside
- Battery holder.
- Low battery indicator.

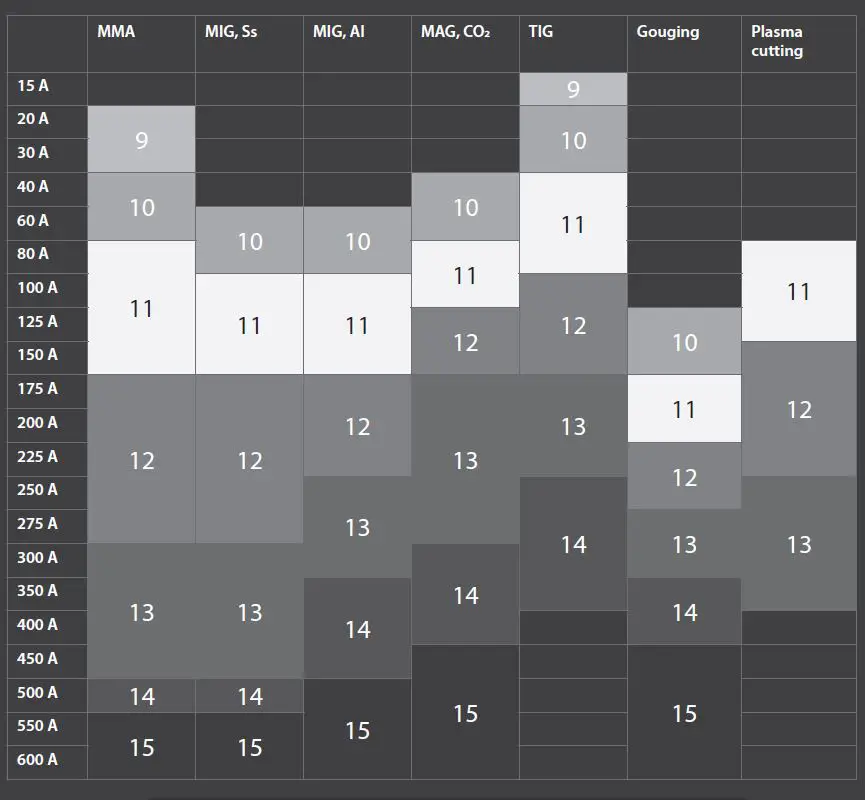

- Shade selection: 9–13.
- Sensitivity adjustment: Low High.
- Use higher sensitivity for lower welding currents.
- Delay adjustment from dark to light: 0.1–0.9 s.
- Weld, Cut or Grind selection
Setup Procedure

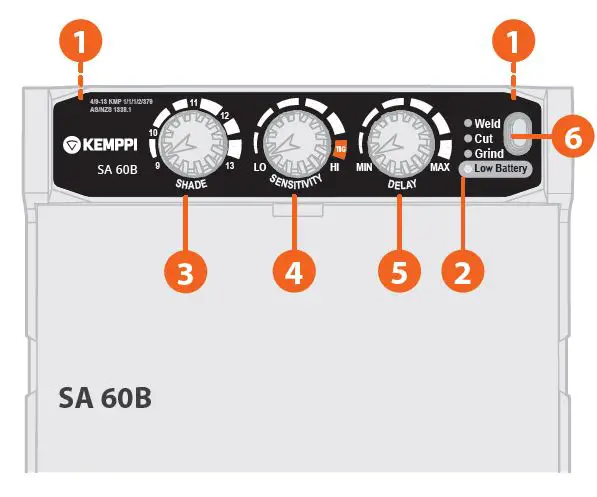

Control Panel

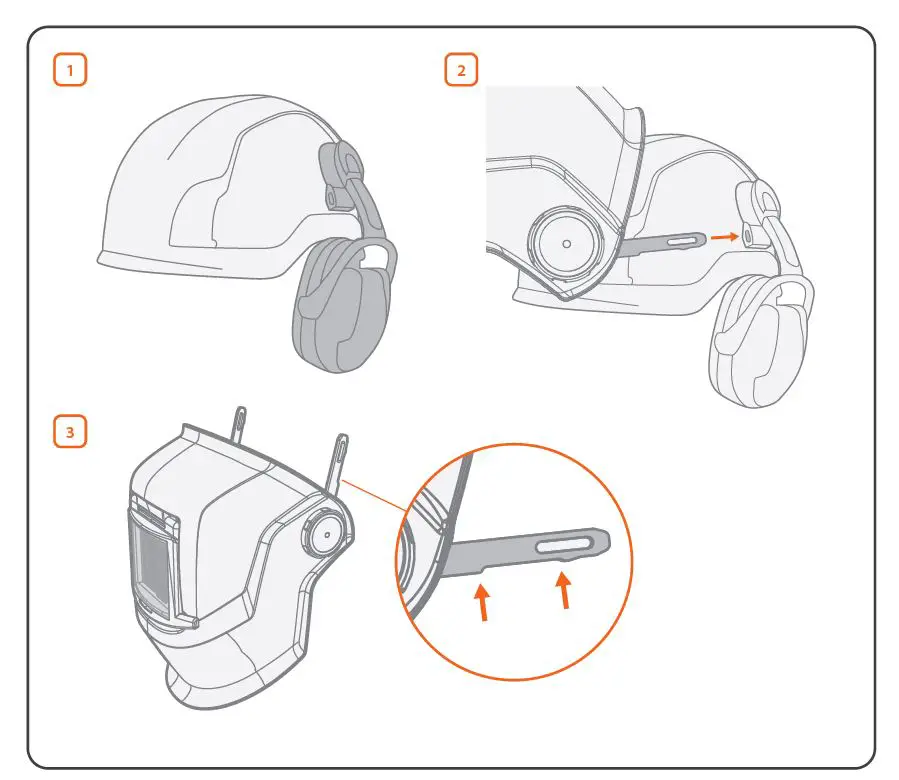

Attaching Beta SH welding mask to safety helmet
Install the earmuffs to the slots in the safety helmet1.Install the Beta SH welding mask’s temple arms to the slots in the earmuffs 2 . Ensure the temple arms slide into the slots up to the stoppers3.
Detaching Beta SH welding mask from safety helmet
Detach the Beta SH welding mask from the safety helmet by pulling the welding mask’s temple arms out of the slots in the earmuffs (there is no locking mechanism.
Ordering codes 4
| Operating temperature range | – 5 + 55 °C <80% Rh |
| Storage temperature range | – 20 + 50 °C <80% Rh |
| Manufacturer | Oy, PL 13, 1, 15801 Lahti, Finland |
| ADF switching time | 0.1 ms |
| ADF light state | SA 60B: Shade 4 |
| ADF UV/IR protection | Protection at all times |
| Battery replaceable | SA 60B 2xCR2032 |
| Materials | Plastics: PA, PC, POM |

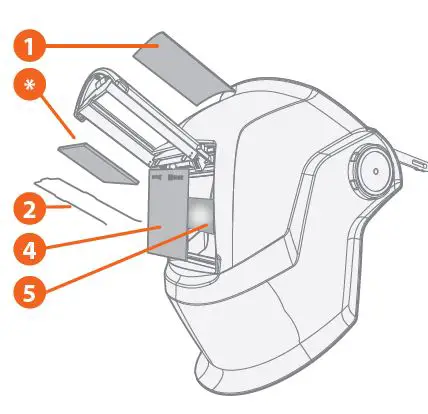

| Beta | e90P SH | e90A SH | |
| 1 | Protection plate (10) | SP9873253 | |
|
| Shade 8 | 9873241 | |
| Shade 9 | 9873242 | ||
| Shade 10 | 9873243 | ||
| Shade 11 | 9873244 | ||
| Shade 12 | 9873245 | ||
| Shade 13 | 9873246 | ||
| SA 60B | SP9873064 | ||
| 2 | Filter retaining spring | SP3149850 | |
| 3 | Inner protection plate (5) | SP012425 | |
| 4 | Safety plate (10) | SP9873254 | |
| (5) | Magnifying lens | ||
| 1.0 (51×108) | 9873260 | ||
| 1.5 (51×108) | 9873261 | ||
| 2.0 (51×108) | 9873262 | ||
| 2.5 (51×108) | 9873263 | ||
Beta e90P SH
Beta e90A SH
Beta e90P SH / Beta e90A SH
QR CODE FOR SCANING
