MODEL: UZ145
QUICK START GUIDE
For questions, visit us online at sharkclean.com/support
Register your vacuum at registeryourshark.com
WHAT’S INSIDE:
A. Handheld Vacuum
B. Dirt Engage™ Floor Nozzle
C. Wand
D. Dusting Brush
E. 8″ Crevice Tool
F. Charger
G. Post-Motor Filter (Pre-Installed)

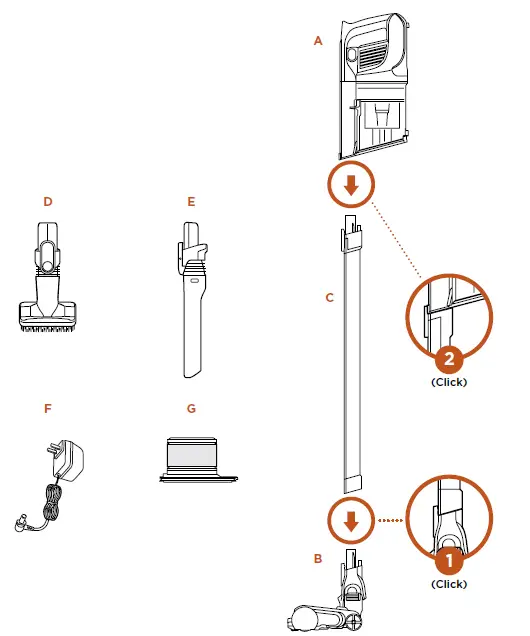

ASSEMBLY
For complete maintenance instructions, see the enclosed Owner’s Guide.
For additional parts and accessories, visit sharkaccessories.com.
For additional batteries and charging accessories, visit sharkclean.com/batteries.
POWER SETTINGS

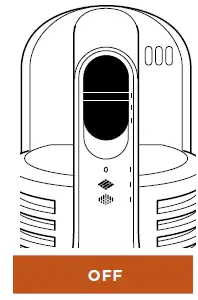

OFF:
Slide switch to the top to turn off power. To begin vacuuming in Standard Mode, slide switch to the appropriate setting.
BARE FLOOR SETTING:
Bare Floor/Area Rugs Slide the switch to the middle. The brushroll spins slowly to clean bare floors and small area rugs.

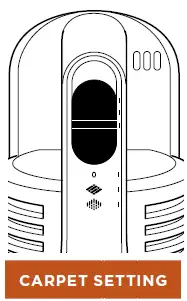

CARPET SETTING:
Carpet
Slide the switch to the bottom. The brushroll spins faster to pick up debris below the surface of your carpets.

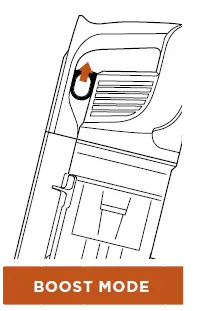

BOOST MODE:
For an added boost in power, pull the Trigger on the handheld vacuum. Release it to return to standard power.
NOTE: For deep cleaning per ASTM F 608 (embedded dirt in carpets) please select the Carpet setting and pull the trigger to go into Boost mode.
NOTE: Select Carpet setting for stuck-on dirt and debris.
LI-ION BATTERY

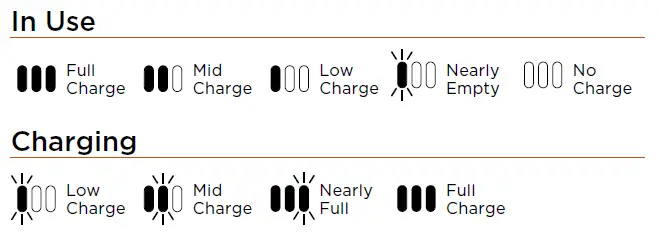

Battery Indicator Lights
NOTE: The battery comes partially charged. Charge fully before first use.

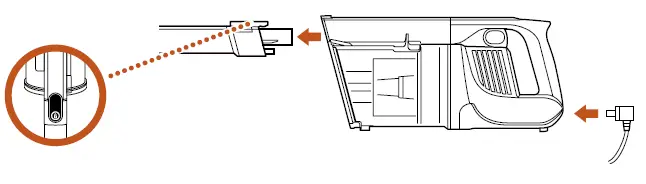

CHARGING
To charge, remove the handheld vacuum from the wand by pressing the Wand Release button and pulling up. Plug the charger into the charging port.
Battery Runtime
| MODE | MINUTES |
| Hand Vac | 40 |
| Bare Floor/ Standard Mode | 25 |
| Carpet Mode/ Standard Mode | 20 |
| Boost Mode (Hand Vac) | 10 |
VERSATILE CLEANING
Slide the power button to the desired setting. Step on the floor nozzle and tilt the handheld vacuum back.
To detach the wand for above-floor cleaning, stand the vacuum upright, then press the Nozzle Release button on the bottom of the wand and pull the wand up to disconnect it.
OR
To detach the handheld vacuum, press the Wand Release button and lift the handheld vacuum off the wand.
THEN
Attach a cleaning accessory, then choose the power setting.

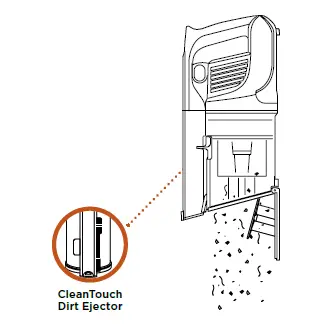

EMPTYING THE DUST CUP

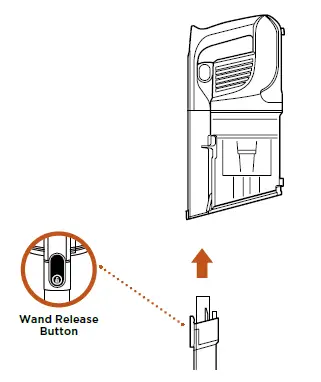

1. To empty the dust cup, first disconnect the handheld vacuum from the wand by pressing the Wand Release button and pulling up on the handheld vacuum.
2. Position the dust cup over a trash bin and slide the CleanTouch™ Dirt Ejector forward.
© 2019 SharkNinja Operating LLC. SHARK and ROCKET are registered trademarks of SharkNinja Operating LLC. CLEANTOUCH and DIRT ENGAGE are trademarks of SharkNinja Operating LLC.
UZ145_QSG_REV_Mv2
