M30-THRU BSA Pedalier Black
Instructions
M30-THRU BSA Pedalier Black
SAFETY INFORMATION – READ BEFORE RIDE
Since specific tools and experience are necessary for proper installation, it is recommended that the product be installed by a qualified bicycle technician.
Read the service instructions of your crank carefully prior to installing the parts. Loose, worn or damaged parts may cause riding problems and serious injury may occur as a esult. If installation and adjustments are not carried out correctly, the chain may come off and this may cause you to fall off the bicycle which could result in serious injury. ead these instructions carefully, and keep them for later use.
- Ensure that the frame shell is clean.
- Before riding the bicycle, check that there is no play or looseness in the bottom bracket connection. Be sure to retighten the crankarms and pedals at periodic intervals.
- If you feel any looseness or ‘play’ in the bearings, the bottom bracket should be inspected/replaced.
- Be sure to read the instructions for your front chainrings/crank in conjunction with these service instructions.
- Do not wash the bottom bracket with high-pressure jets of water.
- For maximum performance it is required to remove and periodically inspect/clean your Praxis Works bottom bracket.
- Parts are not guaranteed against natural wear and tear resulting from normal use.
- For any questions regarding methods of installation, adjustment, maintenance or operation, please contact a professional bicycle dealer or call Praxis Works.
- Praxis Works assumes no responsibility for damages or injury related to improperly installed components.
READ THE STEP-BY-STEP INSTRUCTIONS THAT ARE PROVIDED ON THE OTHER SIDE.
For the latest instructions and knowledge base updates: https://praxiscycles.com/tech-docs/
WARRANTY
- Praxis Works Bottom Bracket products are warrantied to be free from defects in materials or workmanship for two years after original purchase. The warranty is non transferable and valid to the original purchaser of the product only.
- Any attempt to modify the product in any way such as drilling, grinding or painting will void the warranty.
- This warranty is not valid for “abused” or neglected products, or products that are damaged by improper installation.
- If a defect is found, our entire liability and your sole remedy shall be, at our option, free repair or replacement of the Praxis product.
- Except as expressly required by law, Praxis Works shall not be held liable for any indirect, special, or consequential damages.
THIS WRITTEN EXPRESS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, IMPLIED OR EXPRESSED. This warranty gives you specific legal rights, and ou may also have other rights which vary state to state. For more information on warranty policy and instructions for completing a warranty claim, check out the Full arranty olicy found at our website. www.praxis-works.com
Note: specifications are subject to change without notice. © AUG 2022 by Praxis Works, LLC
M30-THRU BSACompatibility and Spec
| CRANKSET | Compatible with ALL Praxis M30 THRU & other-brand cranks |
| FRAME SHELL | BSA 68mm Road Frames |BSA 68/73mm MTN Frames |
| FRONT DERAILLEUR | Braze-on, Clamp-on, or Direct Mount – E-type only when on 68mm MTB |
REQUIRED TOOLS
- One Praxis M30 BB Tool
- 3/8” Drive Torque Wrench
- Anti-Seize Compound
- Waterproof Grease
Included Parts

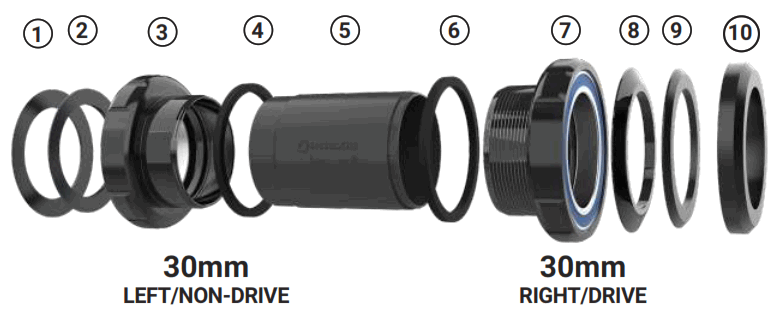

| Number | Part | Qty |
| 1 | 30mm ID X 1mm Dust Cover | 1 |
| 2 | 30mm ID X 2mm Dust Cover | 1 |
| 3 | LEFT/NON-DRIVE Cup with 30mm ID Bearing | 1 |
| 4 | BB Cup Spacer for 68mm MTN ONLY | 1 |
| 5 | Sleeve (internal dust/moisture seal) | 1 |
| 6 | BB Cup Spacer for 68mm MTN ONLY | 1 |
| 7 | RIGHT/DRIVE Cup with 30mm ID Bearing | 1 |
| 8 | 30mm ID X 2mm Dust Cover | 1 |
| 9 | 30mm ID X 3mm Dust Cover | 1 |
| 10 | 30mm ID X 6mm Dust Cover | 1 |
BOTTOM BRACKET INSTALLATION

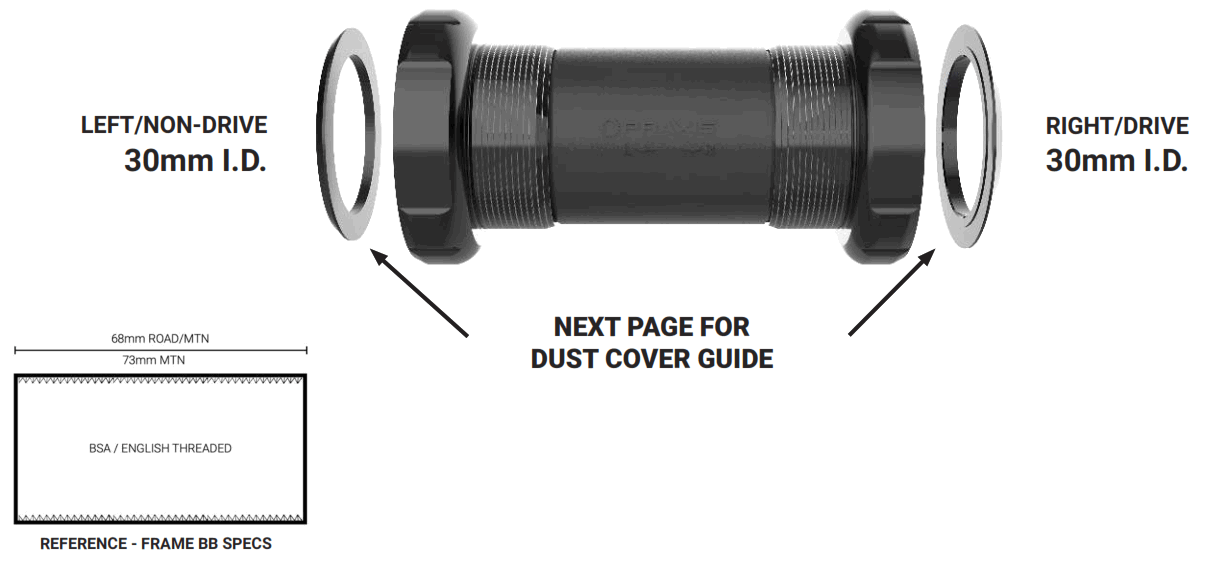

BB DUST COVER SETUP
BB DUST COVER GUIDE
| ROAD M30-THRU | WIDTH | CRANK | LEFT COVER 30MM LOv ER | LEFT CUP SPACER | RIGHT CUP SPACER | RIGHT 30MM COVER |
| BSA | 68 | OTHER BRAND | 2mm | 2 M M | ||
| T47 E.B. | 68 | OTHER BRAND | 2mm | 2,m | ||
| T47 I.B. | 86. | OTHER BRAND | 2mm | 2,m | ||
| BB86 | 87. | OTHER BRAND | 2mm | 2,m | ||
| 386EVO | 87. | OTHER BRAND | 2mm | 2,m | ||
| BB30/PF30 | 68 | OTHER BRAND | 2mm | 2,m | ||
| BBRight | 79 | OTHER BRAND | 2mm | 2,m | ||
| MTN M30-THRU | WIDTH | CRANK | LEFT 30MM COVER | LEFT CUP SPACER | RIGHT CUP SPACER | RIGHT 30MM COVER |
| BSA | 68 | GEN1 LYFT OTHER BRAND | Preload Ring Only 2mm | 25 25 | 25 25 | 2mm 2mm |
| 73 | GEN1 LYFT OTHER BRAND | Preload Ring Only 2mm | – | 2mm 2mm | ||
| T47 E.B. | 73 | GEN1 LYFT OTHER BRAND | Preload Ring Only 2mm | – | – | 2mm 2mm |
| T47 I.B. | 90. | GEN1 LYFT OTHER BRAND | Preload Ring Only 2mm | – | – | 2mm 2mm |
| BB90 | 90. | GEN1 LYFT OTHER BRAND | 2mm 2mm | – | – | 2mm 2mm |
| BB92 | 92 | GEN1 LYFT OTHER BRAND | Preload Ring Only 2mm | – – | – | 2mm 2mm |
| BB30/PF30 | 73 | GEN1 LYFT OTHER BRAND | Preload Ring Only 2mm | • | – | 2mm 2mm |
