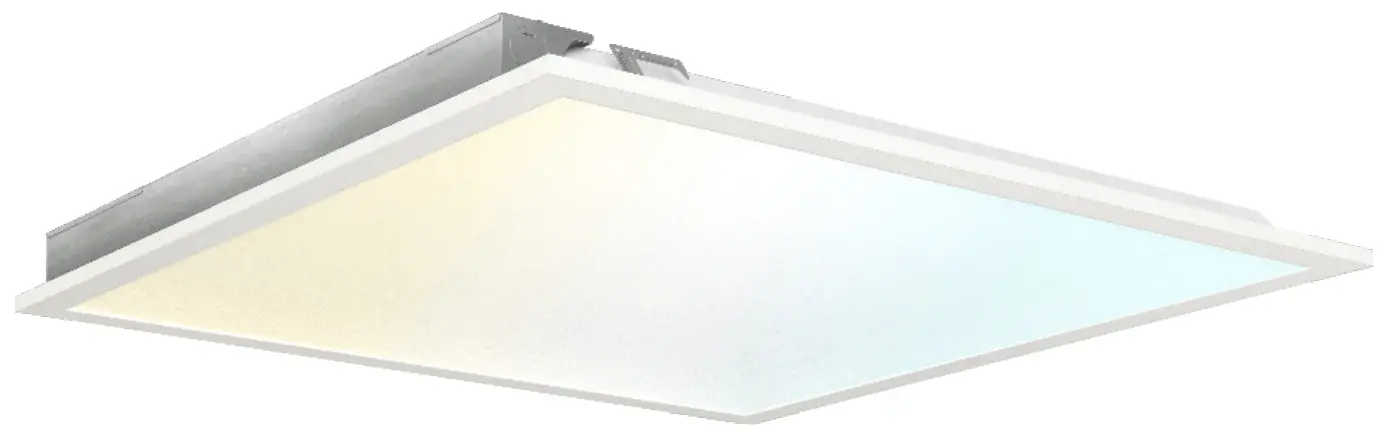

Sunco 2x2 Led Selectable Ceiling Panel Installation Guide

Required Tools: Drill, Ladder, Hammer, Pliers, Tape Measure,
Pencil, Philips Screwdriver, Leveler.
2×2 LED SELECTABLE
CEILING PANELInstallation Manual
Please review instructions carefully before proceeding.

EASY INSTALLATION

Recessed Mount

1. Turn off circuit breaker before installing.
2. Place Ceiling Panel face down on flat surface.

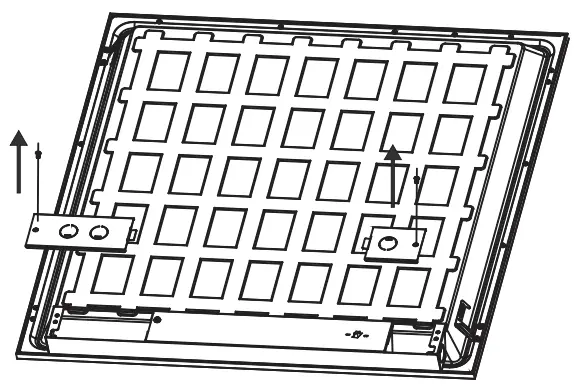

   • Unscrew left driver and set aside screw.
   Optional: If using dimmer, unscrew right driver cover.

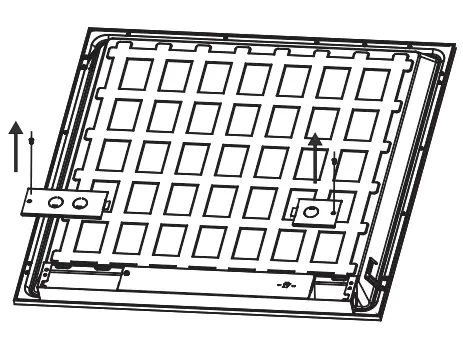

3. Pop out knockout (choice of 5).
   Optional: If using dimmer, pop out 2 nd knockout.

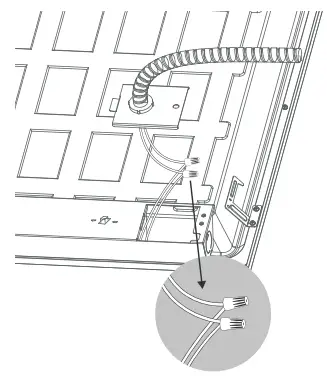

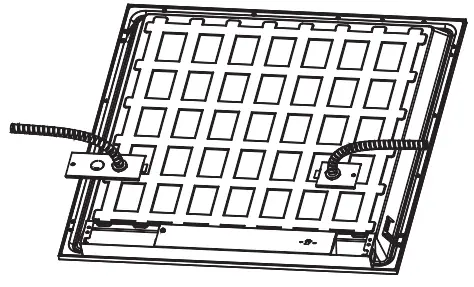

4. Connect supply wires to Ceiling Panel wires with included wire nuts:
   • Black to Black (Live)
   • White to White (Neutral)
   • Green to Green (Ground)OPTIONAL: To use dimming feature, connect pink and purple wires on Ceiling Panel to compatible dimmer (not included).
5. Replace driver covers.
   • Tighten screws.

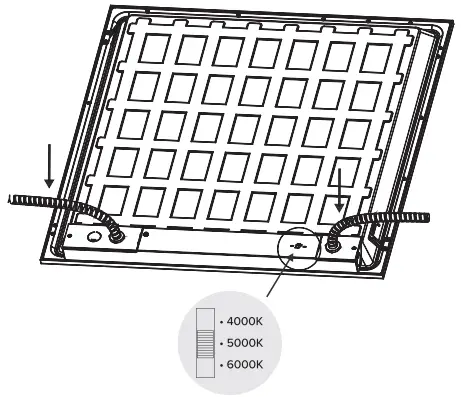

6. Set preferred color temperature using CCT on back of Ceiling Panel.

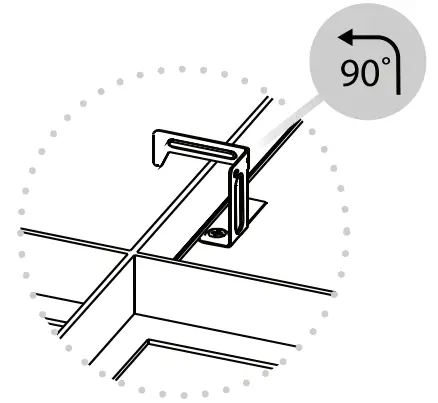

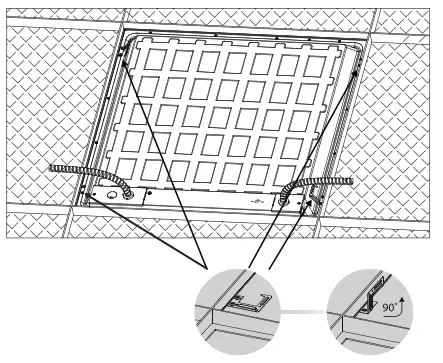

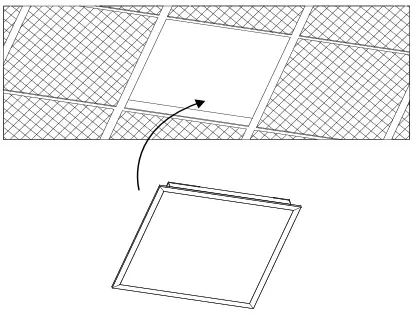

7. Bend 4 protective brackets located on back of Ceiling Panel up 90o.
8. Turn brackets 90o . Hook should face outside edge of Ceiling Panel.
9. Turn on circuit breaker and test light.

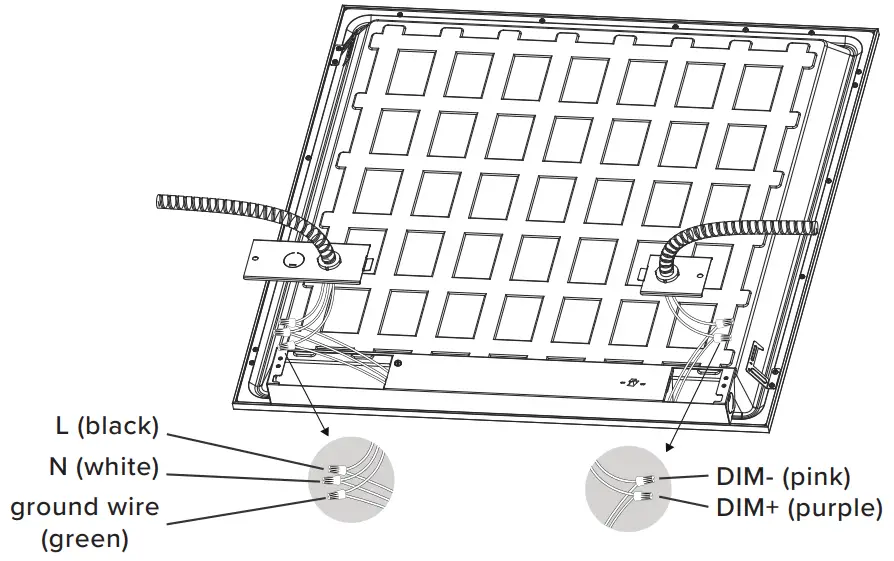

WIRING DIAGRAM

SPECIFICATIONS

Suspension Mount

1. Turn off circuit breaker before installing.
2. Place Ceiling Panel face down on flat surface.
   • Unscrew left driver and set aside screw.
   Optional: If using dimmer, unscrew right driver cover.
3. Pop out knockout.
   Optional: If using dimmer, pop out 2nd knockout.

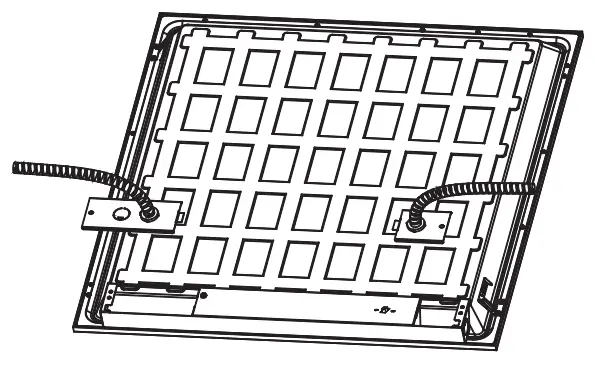

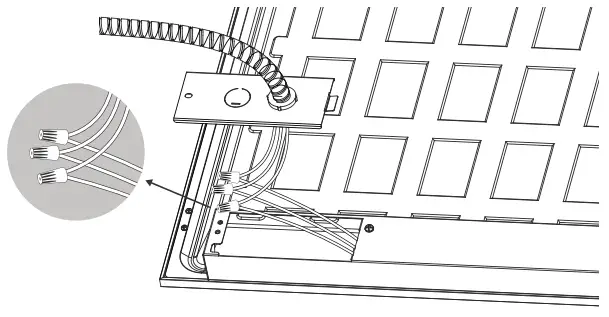

4. Connect conduit to knockout.
   • Feed wires through.

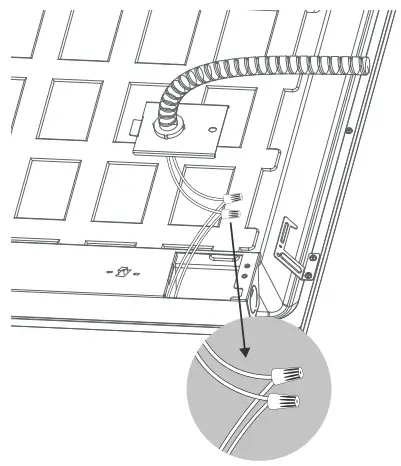

5. Connect supply wires to Ceiling Panel wires with included wire nuts:
   • Black to Black (Live)
   • White to White (Neutral)
   • Green to Green (Ground)OPTIONAL: To use dimming feature, connect pink and purple wires on Ceiling Panel to compatible dimmer (not included).
6. Replace driver covers.
   • Tighten screws.

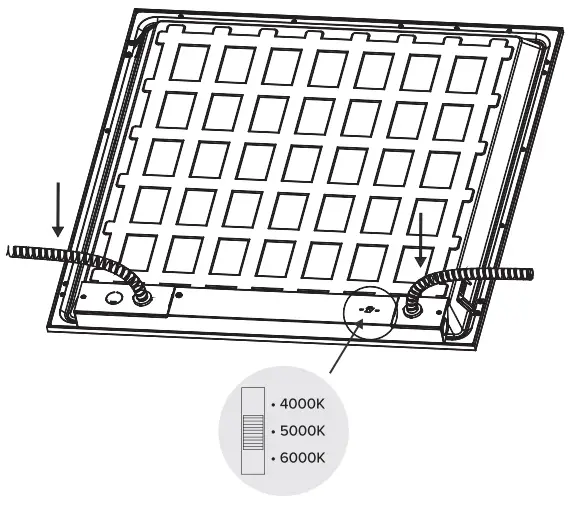

7. Set preferred color temperature using CCT on back of Ceiling Panel.
8. Drill 2 holes into ceiling.

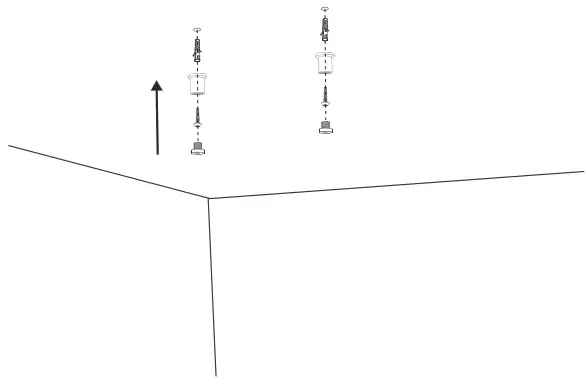

9. Place anchors into hole, insert wire rope, and screw.
   • Refer to suspension kit’s (not included) install manual for complete details.
10.  Adjust support rope/wire to ensure Ceiling Panel is level.
11. Turn on circuit breaker and test light.

WARNING
To reduce the risk of fire, electric shock, or physical injury:

• Turn off circuit breaker before installing this fixture.
• This product should be installed by a person familiar with the construction and operation of the product and hazards involved. Safety eyeglasses and gloves are recommended.
• Abide by related regional and local laws or regulations.
• Proper grounding is required to ensure safety.
• Check for shipping damage before installing. If the product is damaged, do not use it.
• Keep fixture away from corrosive substances.
• Clean fixture regularly to ensure proper operation. Do not clean with harsh solvents.
• Use safety precautions and abide by regional and local laws or regulations.
• This product is not compatible with 3rd party sensors.
• Suitable for damp locations at temperatures ranging from -4°F to 113°F. Not for use where directly exposed to water.
