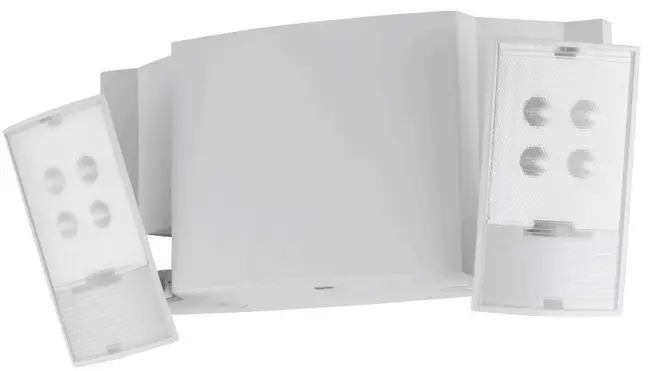

WESTGATE EL-2-B EL SERIES Exit and Emergency Lighting

Emergency lighting is designed to provide sufficient illumination in the event of a mains power failure. Modern emergency lighting is installed in virtually every commercial and high occupancy residential building. Most building codes require that they be installed in older buildings as well.

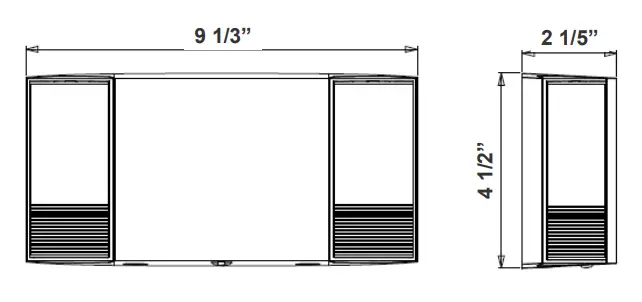

DIMENSION

4 1/2”(H) x 9 1/3”(W) x 2 1/5”(D)

Features

• Innovative, Easy Installation in Minutes
• 3-Year Warranty
• Injection-Molded Thermoplastic ABS Housing,UL 94V-0 Flame Rating

Technical Specifications

Electrical:

• Voltage: 120V-277VAC Dual voltage
• Power Factor: >0.90
• Wattage: 4.5 W per head
• Efficacy: 53 LPW

Mechanical:

• Mounting: wall mounting with KO’s in Back Plate
• Universal J-box Mounting Pattern
• Maximum 24 hours for Full Recharge Time
• Test Switch and Charge Indicator
• Operating temperature: 32°F to 104°F
• Rated life: 90-minute rated
• White Finish

Lighting:

• Two fully adjustable 4.5-watt LED lamp heads for safe egress
• Improved Beam Control for Increased Spacing and
• Illumination
• Total Lumens: 240LM
• Color Temperatures: 6000K±500K
• Built-in 3.6V 1000mAh Nickel Cadmium Battery for minimum 90 Minutes Emergency Operation

Applications:

• Emergency lighting is designed to provide sufficient illumination in the event of a mains power failure. Modern emergency lighting is installed in virtually every commercial and high occupancy residential building. Most building codes require that they be installed in older buildings as well.

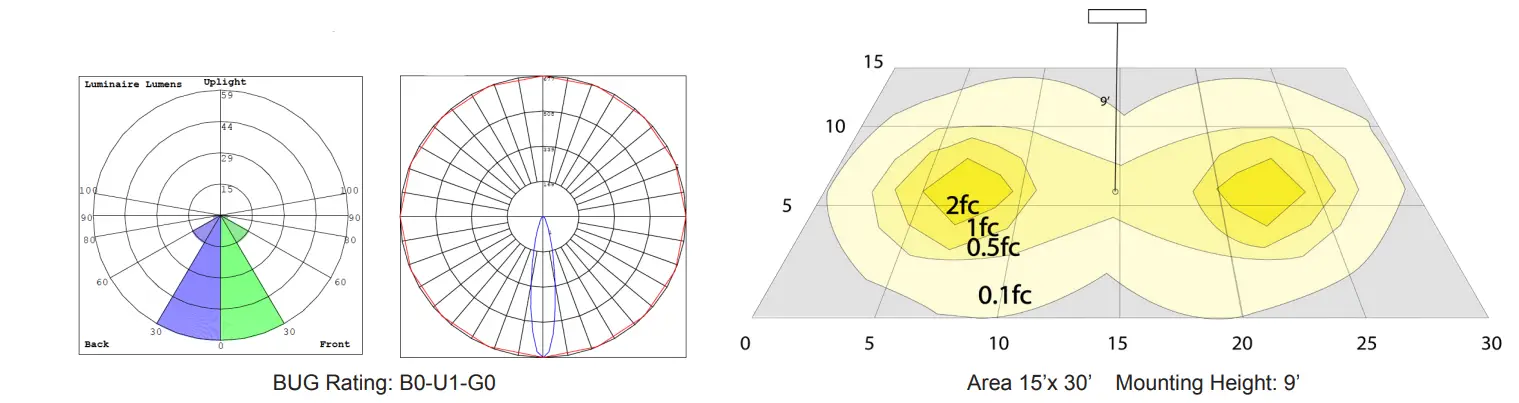

Photometrics: EL-2A

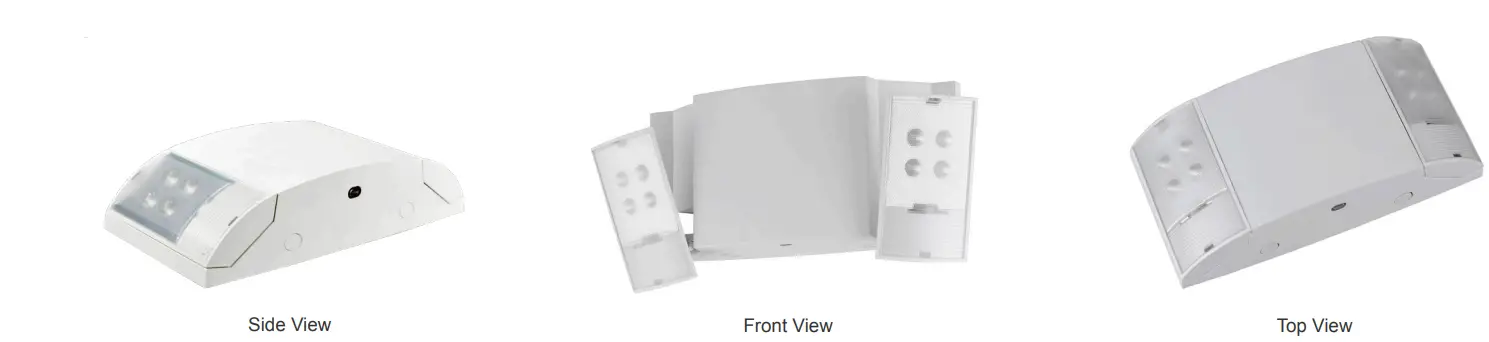

Other Views:

Performance Table: EL-2A

Sample Ordering

Model

• EL
• 2A

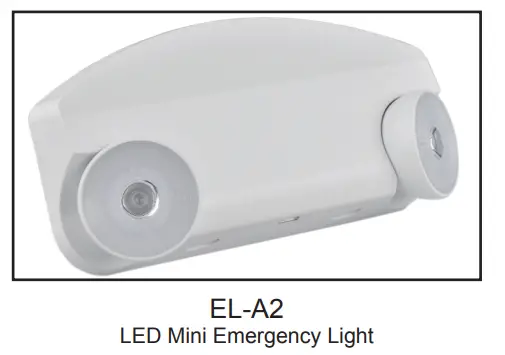

Other Models:
