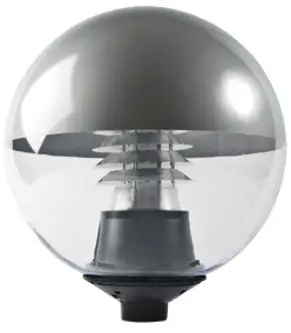

Exterior Lights Pluckley 30 45w LED Clear Globe Amenity-Street Light

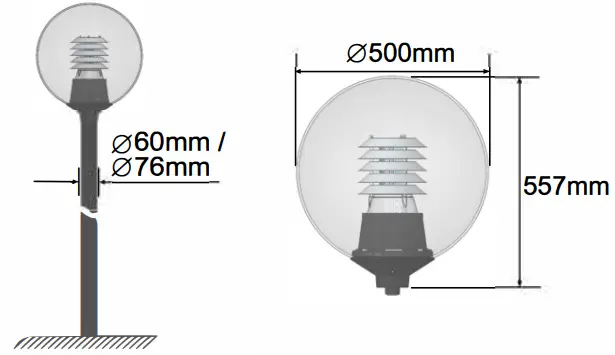

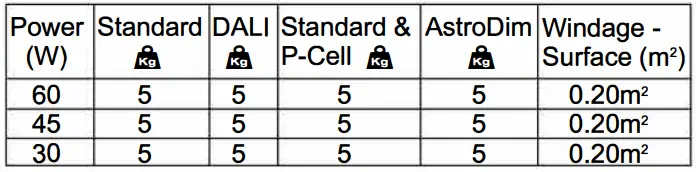

DIMENSION
The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 0.58m is not expected

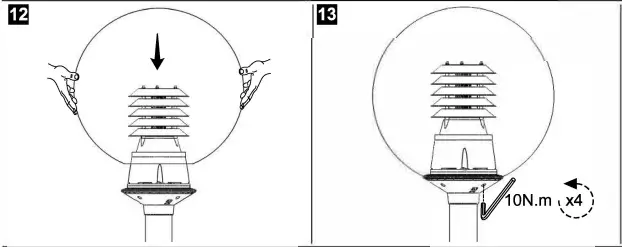

INSTALLATION INSTRUCTION

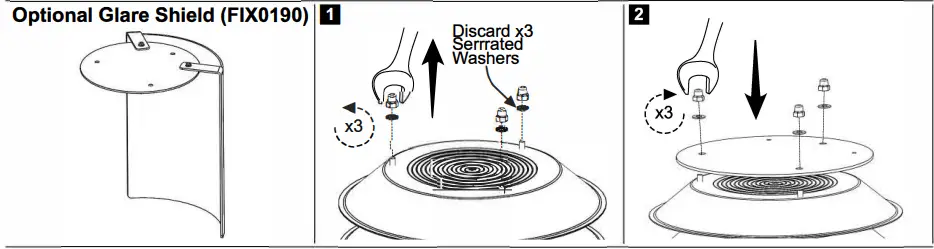

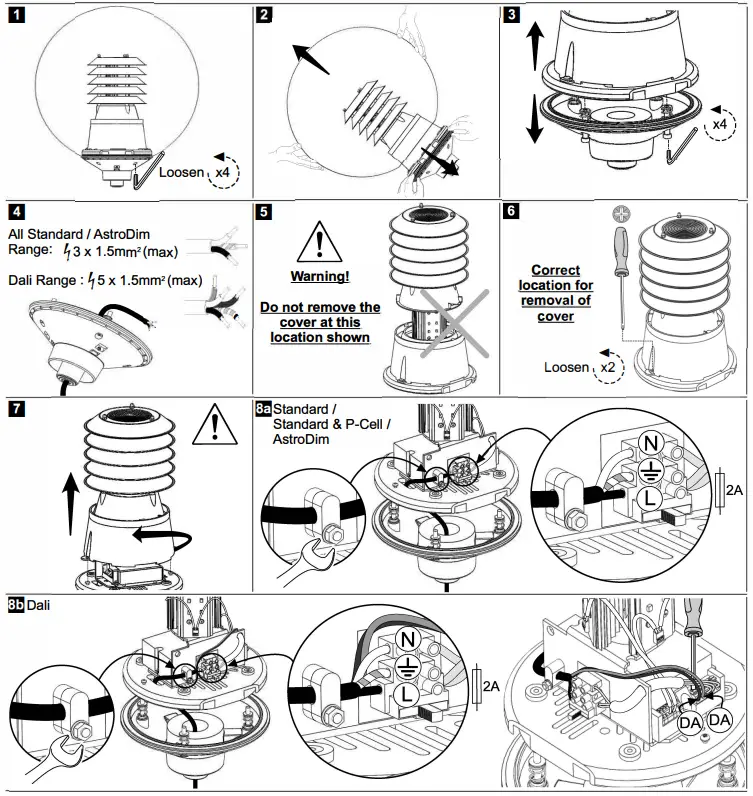

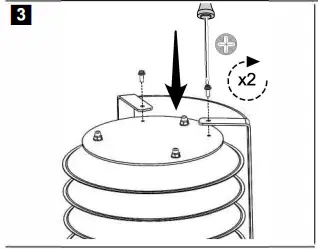

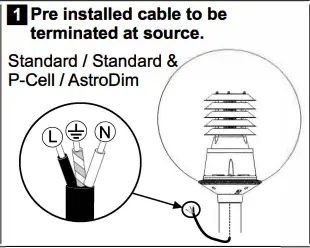

- Ensure no cables / wires are trapped during luminaire assembly.
- Care must be taken when removing / fitting lumminaire louver to prevent LED damage.
Operation & Maintenance
Failed light source should be replaced promptly or the circuit switched off to avoid possible damage to control gear.
Important – Safety
Before carrying out any servicing on these luminaires, ensure that the mains supply is fully isolated. Disconnect the luminaire before insulation testing of the installation.
- -20°C … 40°C
- The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.

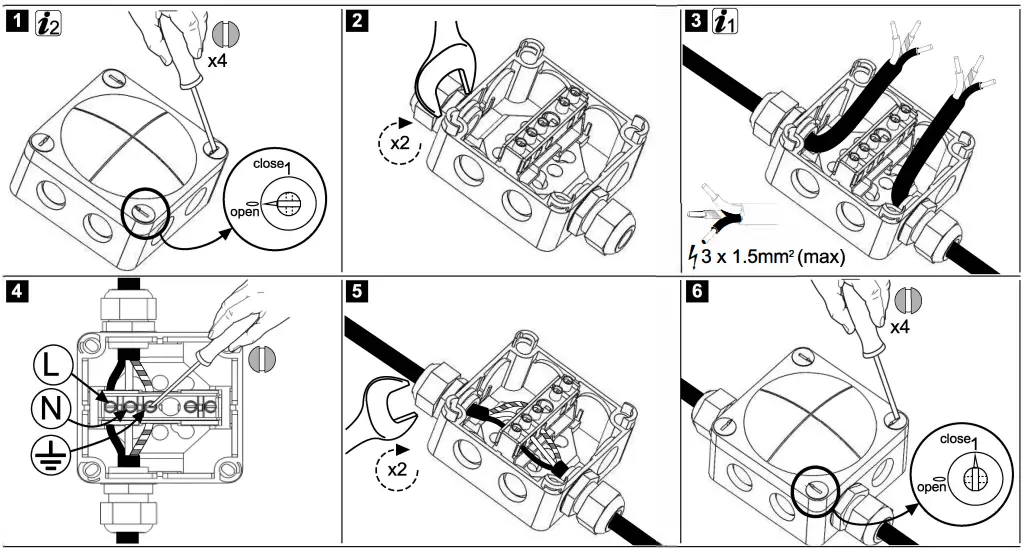

Example: IP junction box/ terminal block. If in doubt seek advice from qualified electrician.
- Preparation of the ends of conductors: Wire ends striped to the length 7mm – 8mm. Add ferrules (for 1.5mm2 mini wires) to the wires if they are stranded.
- Terminal block specified:
- Terminal block specified:
- The type of terminals: Screw.
- Number of terminals: 3
- Rated voltage: 450V
- Rated connecting capacity: 16A to EN60598 and 24A to EN60998
Example:

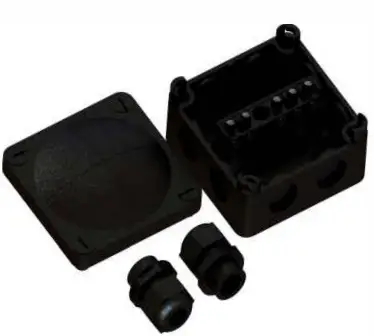

- Box: WISKA COMBI 308/5/S
- Cable Gland x2: WISKA ESKVM20

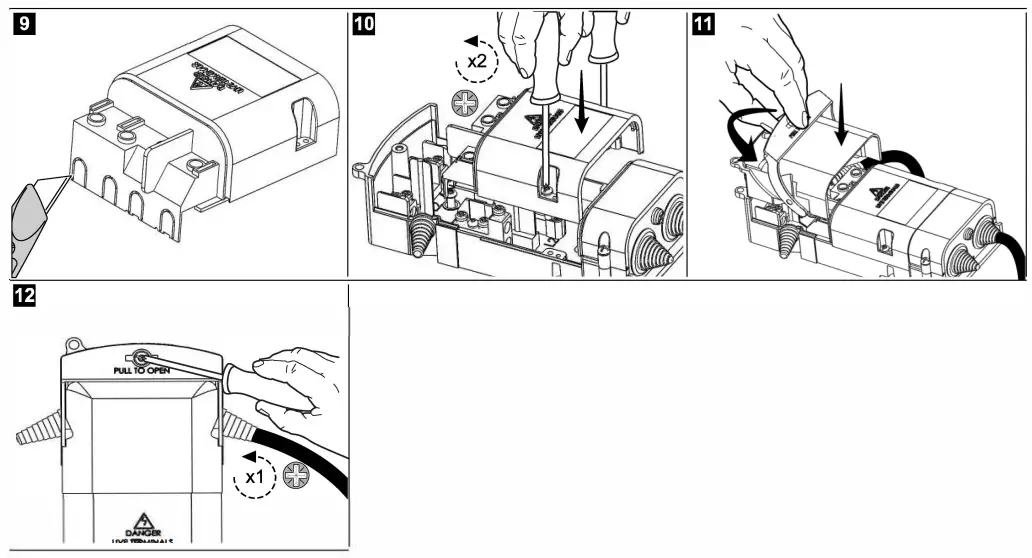

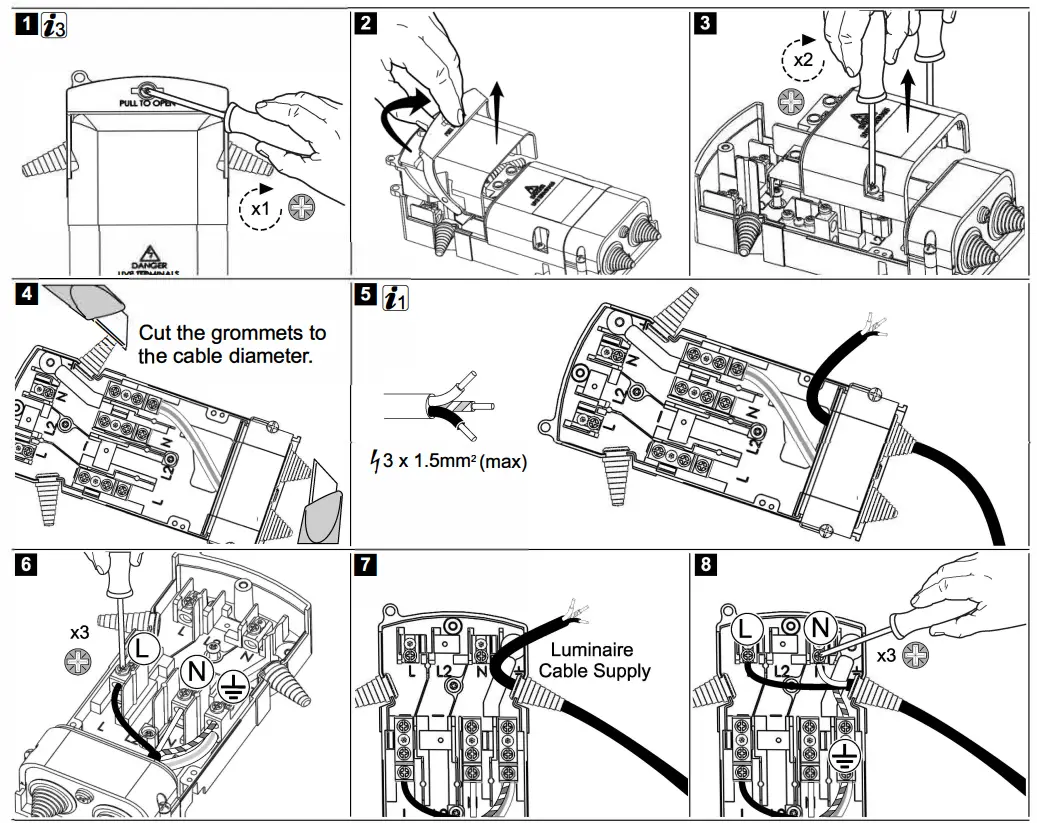

Example: Terminal block fused cut out. If in doubt seek advice from qualified electrician.
- Preparation of the ends of conductors: Wire ends striped to the length 7mm – 8mm. Add ferrules (for 1.5mm2) to the wires if they are stranded.
- Terminal block specified:
- Designed and tested in accordance with BS 7654:1997 and IEC/EN 6094 7-Part 1
- Detachable terminal block in extension trough facilitates termination of heavy duty cables
- Electroplated brass terminal blocks accept conductors up to 25mm2
- Number of terminals: 3
- The type of terminals: Screw
- Rated voltage: 230V
- Rated connecting capacity: 25A
Example:

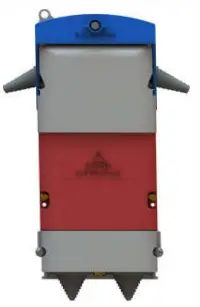

Lucy zodion – Titan2
Single and double pole cut outs.
