Pni Ma432 Car Monitor Instruction Manual

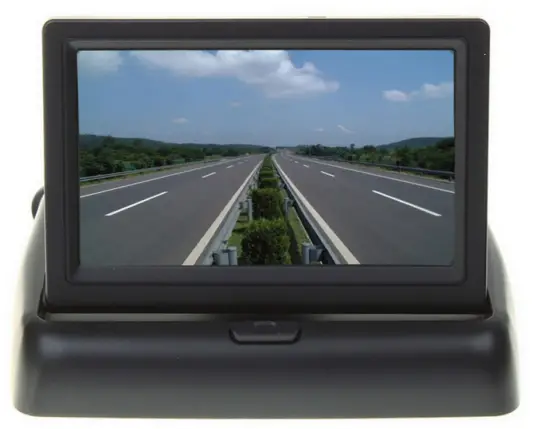

PNi MA432 Car Monitor

4.3-inch car monitor for the rearview camera

TECHNICAL SPECIFICATIONS

• Display: LCD TFT 4.3 inch
• Display resolution: 480 x 272px
• Display format: 16:9
• Power: ≤3W
• Power voltage: 12V
• Contrast: 350:1
• Mounting: on the dashboard
• Working temperature: -26°C ~ + 60°C

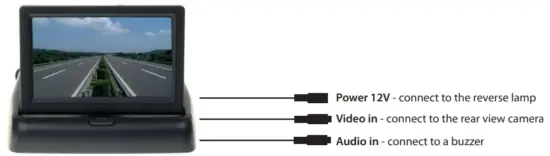

CONNECTIONS DIAGRAM

Simplified Declaration of Conformity

SC ONLINESHOP SRL declares that Car monitor PNI MA432 complies with the Directive EMC 2014/30/EU. The full text of the EU declaration of conformity is available at the following Internet address:
https://www.mypni.eu/products/6421/download/certifications
