850 Wireless HD Extender

The copyright belongs to the product manufacturer.
Dear Customer:
Thank you for choosing our products!
For your better use of this product, please read this manual carefully before using it. This product is for household use only.
If there is any malfunction, please repair it in time.

NOTE:

	Please adjust the video output signal of the playback device to 720p or 1080p,
	Please put TX or RX in an open place and keep a distance of 2-3m from the wireless router to avoid signal interference.
	When transmitting PC video and audio signals, some PC operating systems need to set the video and audio signal source output.
	If noise ocours during use, switch the audio setting of the signal output device to stereo output.
	It supports 1 transmitter for wireless transmission and 2-4 receivers. Does not support the use of multiple transmitters in the same environment
	Transmission distance is about 150-200 meters when there is no other wireless signal interference/obstacles in the operating environment.
	The hue, saturation, and brightness of the picture output by the receiver are different in various TVs, projectors and other equipment. You can adjust the TV HSB parameters according to your preferences.
	Please uses a 5V power adapter, a higher power adapter such as 9V or 12V will damage the product.

We provide a 1-YEAR REPLACEMENT GUARANTEE. Please have your proof of purchase & plc of the defective product available when you contact us.
If the product you received is defective, missing accessories or you need assembly assistance,
PLEASE DON’T RETURN IT TO THE STORE and contact our after-sales mailbox directly.
Global after-sales service mailbox: [email protected]

PANEL DESCRIPTION

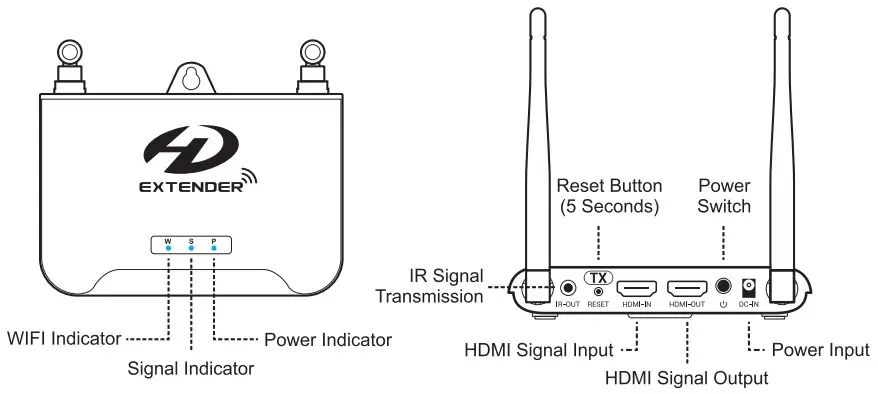

1. Transmitter (TX) Panel Description P The Power Indicator is always-on after the product is powered on.
   S The Singal Indicator is always-on when The HDMI signal is outputimput.
   W The flashing WIFI Indicator indicates that the product communicates normally.

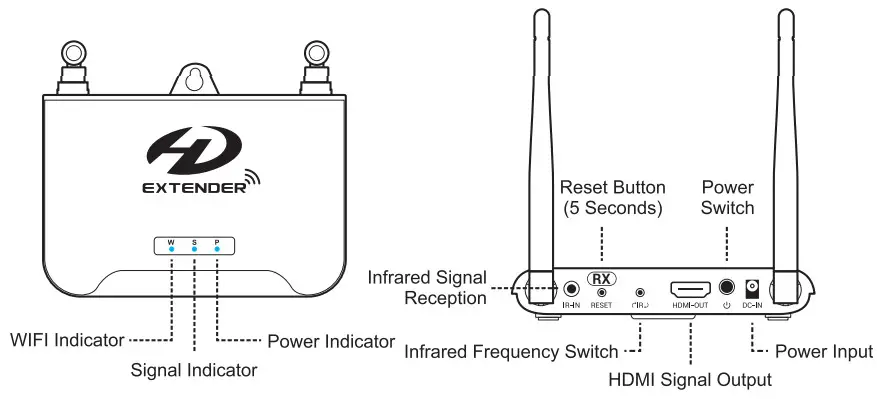

2. Receiver(RX) Panel Description

INSTALLATION INSTRUCTIONS

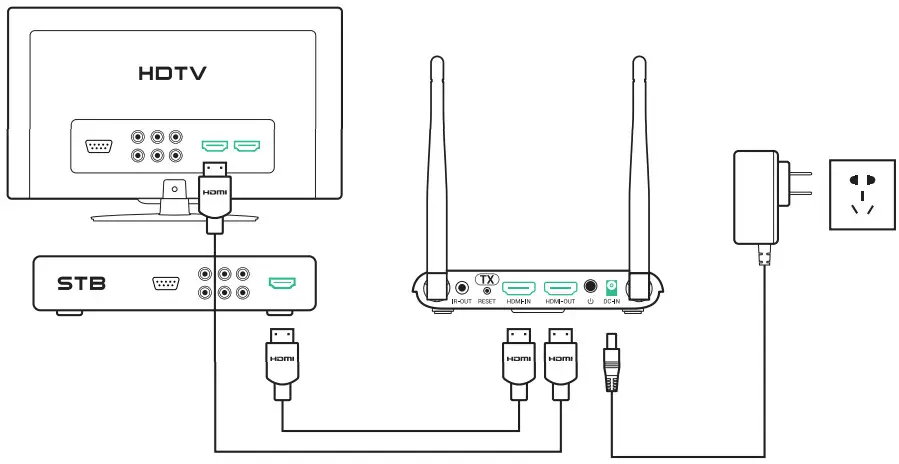

1. Transmitter (TX) Installation

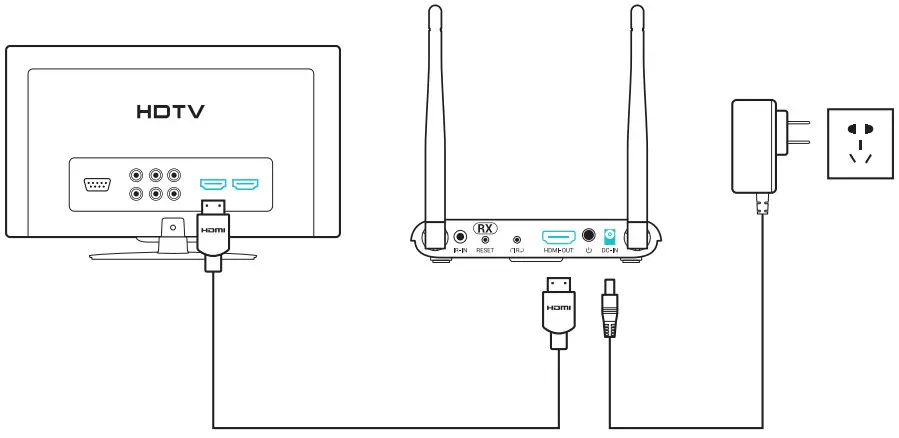

2. Receiver (RX) Installation

STARTING UP GUIDELINE

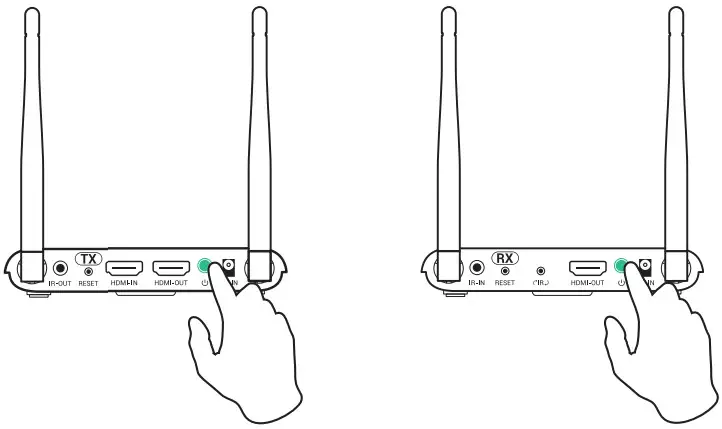

1. Press the & Power Switch Button
   Press the () power switch button of the transmittr (TX) and receiver (RX) toturn on.

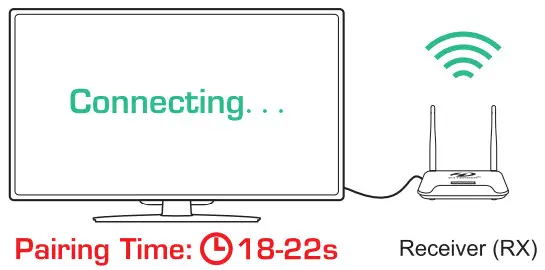

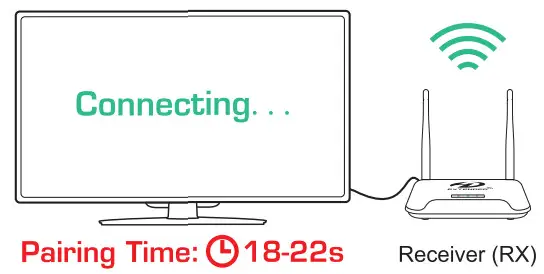

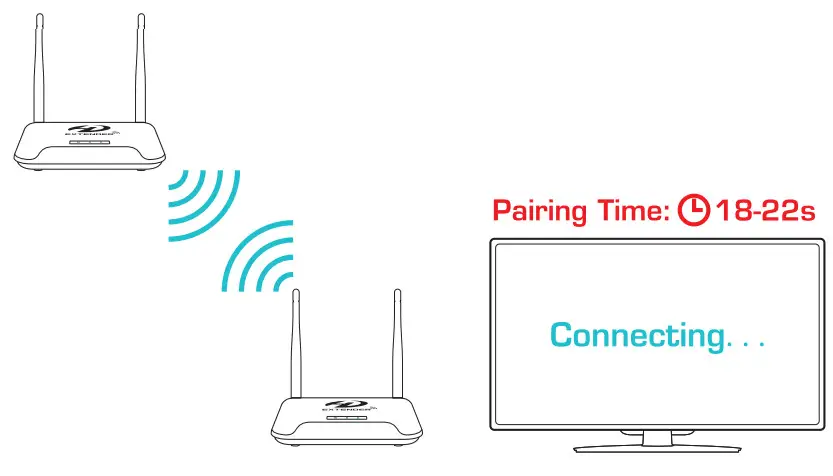

2. Waiting To Connect Successfully

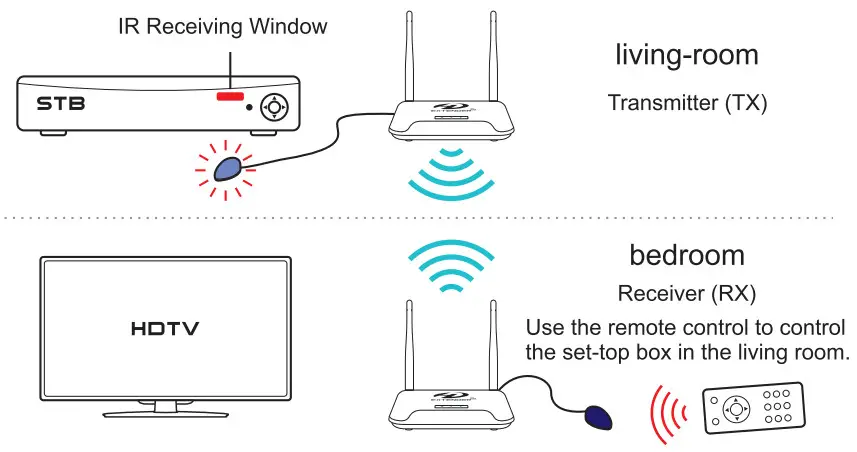

WIRELESS IR REMOTE CONTROL

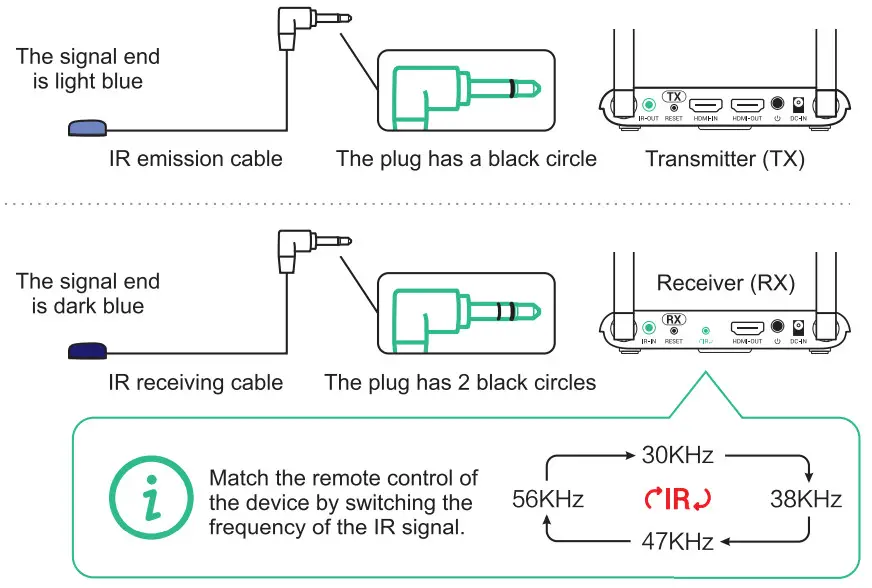

1. Matching IR Extension Cable
2. Use Infrared Echo Function

COMPUTER CONNECTION GUIDE

1. Use with Computer

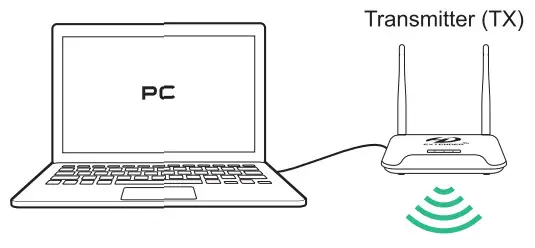

   Connect Transmitter (TX)and laptop using HOMI cableThe Receiver (RX) is connected toa TV or projector
2. Computer Setting

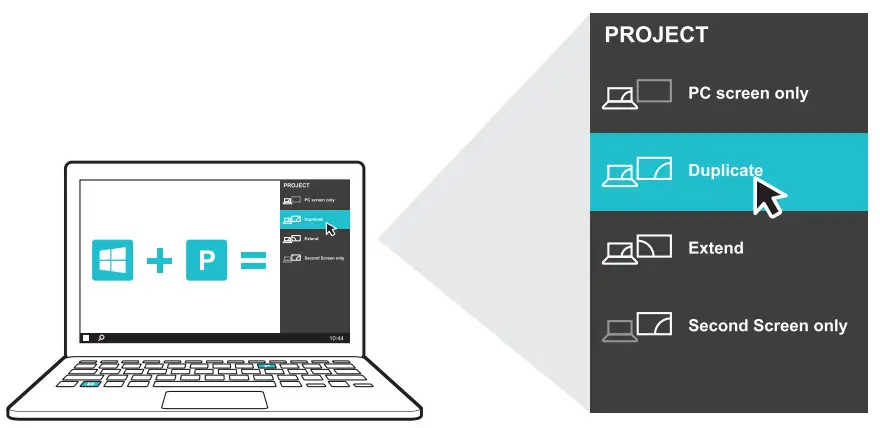

   After entering the computer system, press the Windows key and the letter P key on the keyboard at the same time. The projection menu bar will appear on the right side of the screen, click “Duplcate”.

STB CONNECTION GUIDE

1. Use with STB

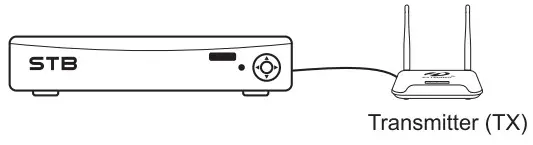

   Connect Transmitter (TX) and STB using HDMI cableThe Receiver (RX) s connected toa TV or projector
2. STB Audio Setting

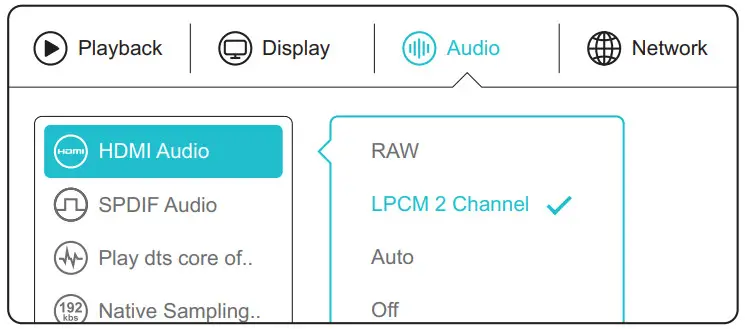

   “Turn on the setting function of STB and switch HDMI Audio output to LPCM 2 Channel through Audio setting,

Please SupportEnvironment Prtection Waste aectical products shoukd not be’disposed of household wants Ploase pu themfothe recyle faciies Ceck win your tocal aunonty on
retaerforrecycing adice!
