Fiamma 98655z033 Kit Vw T6 Kepler Instruction Manual

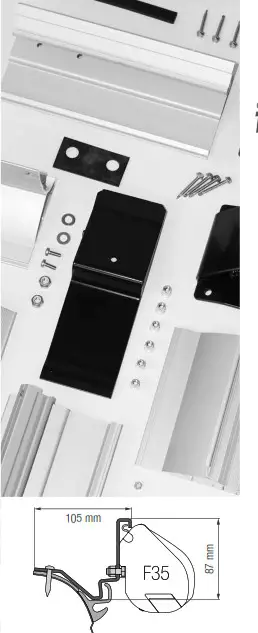

Installation instructions for brackets
KIT VW T6
KEPLER
(L2 H1)
98655Z033

Check that nothing has been damaged or deformed during transport.
In the event of doubts or questions concerning the installation, use or limitations of the product, contact the dealer.
We recommend that the installation is carried out by qualified personnel and in compliance with current local regulations.

ATTENTION: INSTALLATION OF FIXING KIT

The brackets must always be well-aligned to each other to avoid later problems; in case they are not, they must be properly shimmed using the spacers to ensure alignment.
The installation of the awning can occur only when the brackets are perfectly aligned to the roof of the vehicle.

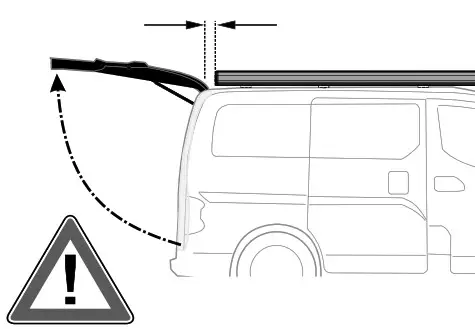

Before tightening the screws, make sure that the awning position doesn’t prevent the opening of the rear door.

When using the awning please follow the instructions of the product.

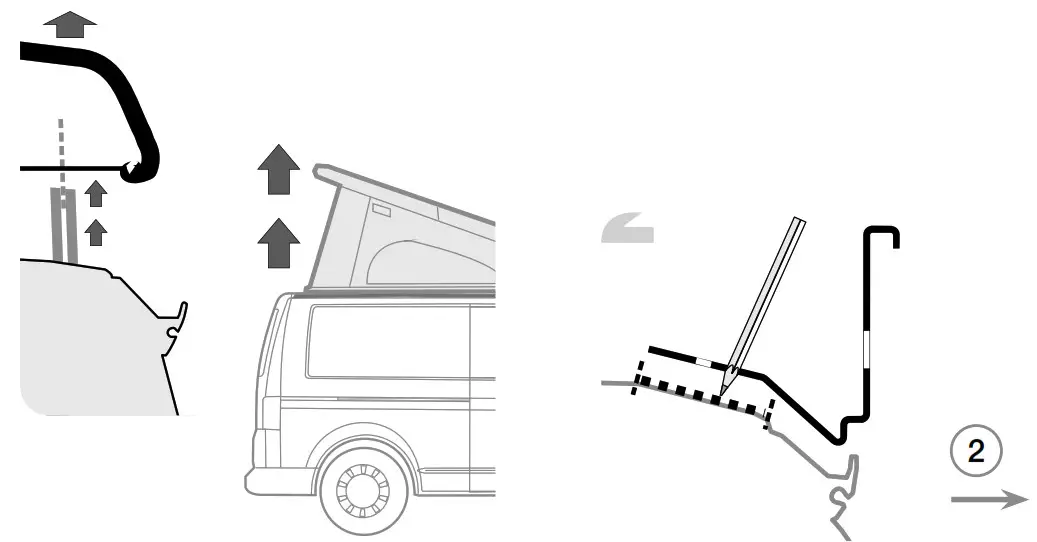

1. Open the pop-up roof.

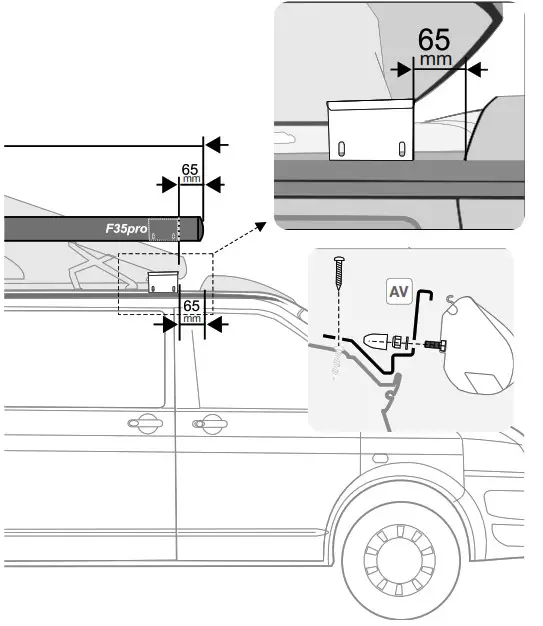

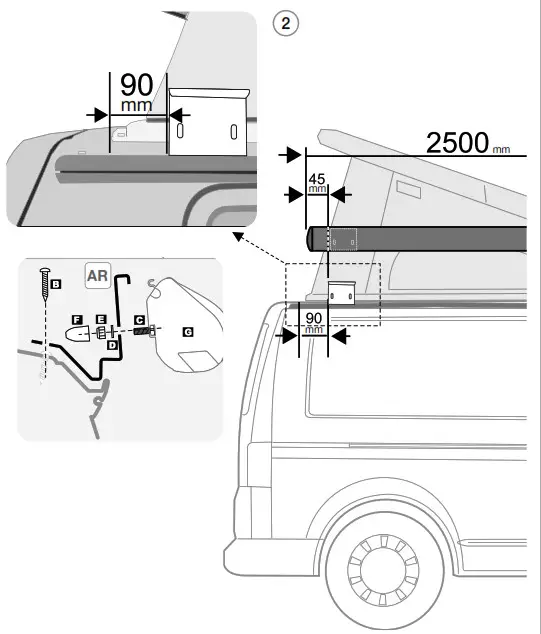

2. Mark the bracket installation zones as per drawing 2.
3. Make pre-holes before installation.
4. Clean and degrease the bonding surfaces of the bodywork and brackets (isopropyl alcohol or equivalent).

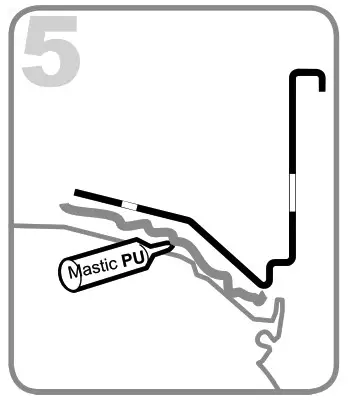

5. Apply a glue strip on the brackets (PU mastic or equivalent) on all the bodywork contact areas.

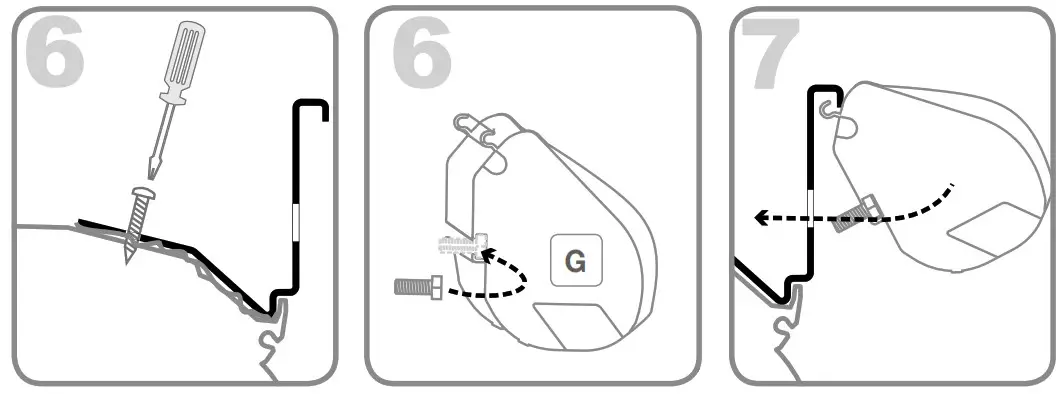

6. Fix the adapter to the bodywork with the supplied screws.

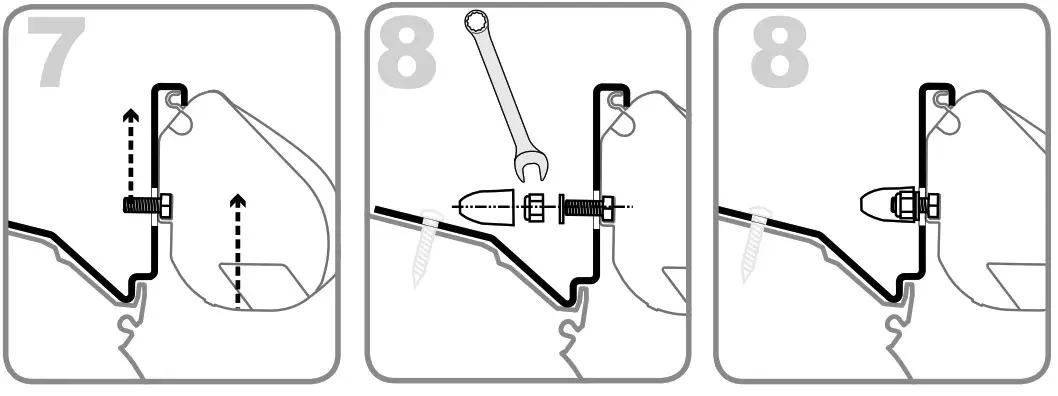

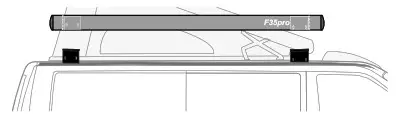

7. Position Fiamma F35pro awning on the brackets following the drawings.
8. Fix the awning with the help of the supplied screws.

Read the following instructions and warnings carefully; failure to observe these installation and usage instructions as well as the laws for driving in the relevant country may cause severe harm or damage for which the manufacturer declines all responsibility.
Before installation, ensure compatibility with the vehicle on which the product must be installed.
Checking that the wall/roof/rear door is suffi ciently solid and suitable for guaranteeing the resistance of the anchoring points is always mandatory. If not, strength and compliance with the maximum load indicated in the instructions are not guaranteed and it will be necessary to reinforce it these points.
ATTENTION Periodically check the brackets to make sure they are firmly attached (especially after the first kilometers) make sure the bolts are not loose and that holding brackets have not shifted.

Warranty Fiamma
In case of defects with regards to materials and manufacturing, the customer is entitled to the warranty in accordance with local laws and regulations of the country in which the product was purchased.

https://www.fiamma.it/en/

Fiamma S.p.A. – Italy
All rights reserved.
Fiamma S.p.A.
reserves the right to modify at any time, without notice, prices, materials,  specifications, and models or to cease production of any model.
