EP-100-C Ecopol Firewood Heater
Instructions

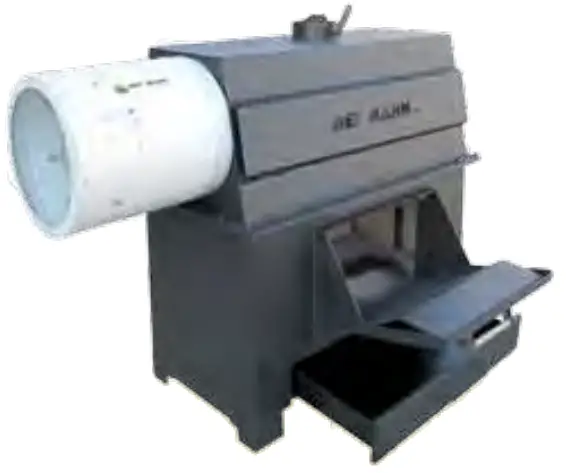

EP-100-C Ecopol Firewood Heater
- ROBUST STURDY EQUIPMENT.
- PERFORMANCE 280%
- OPERATION FIREWOOD AND WOOD WASTE.
- AXIAL OR CENTRIFUGAL FAN.
- DAMPER MANUAL.
DESCRIPTION
Heater for non-domestic sites where firewood reside is available.
Sturdy and enduring equipment including a very silent air fan that provides hot air, thus reaching comfort temperatures in a short time.
MAIN FEATURES
- Very silent equipment.
- Performance higher than 80%
- EC certified.
- Large mouth and box for large ash collection.
- Combustion fireplace wholly finished in refractory bricks.
- Finishing in anti-heat paint resistant to 6000C.
- Air fan interchangeable from one side to another.
- Pipe attachment for air distribution to nearby rooms (Model EP-100). (modelos EP-50-C y EP-100-C).
- Damper manual.

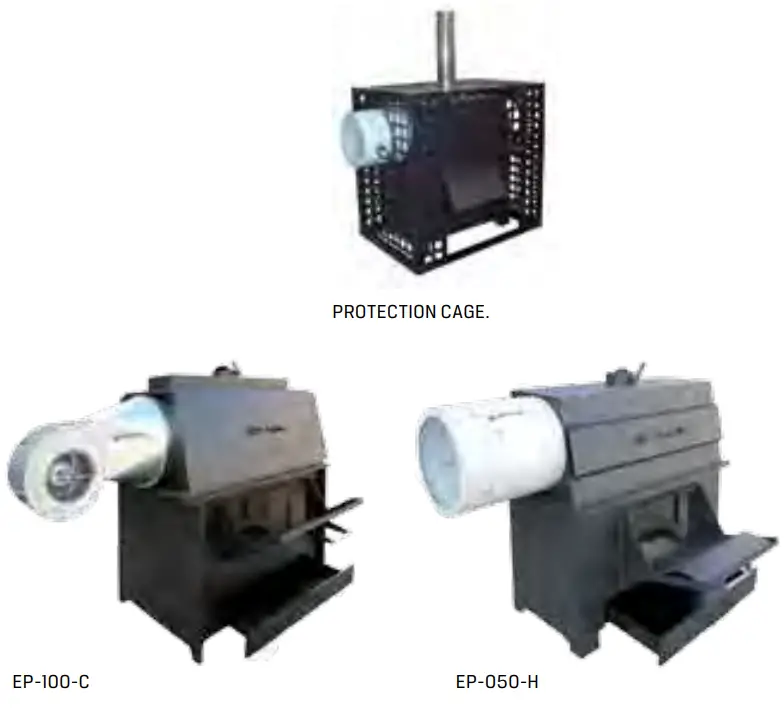

ACCESSORIES
- Protection cage.
| MODEL | UNITS | EP-050-H | EP-050-C | EP-100-C |
| CALORIFIC POWER | kW | 50 | 50 | 100 |
| LOAD DOOR (WIDTH x HEIGHT) | mm | 510X280 | 510X280 | 835X280 |
| AIR FLOW | m³/h | 1.700 | 1.700 | 3.400 |
| MOTOR | kW | 0,16 | 0,12 | 0,59 |
| ELECTRIC TENSION | – | 230V/I/50hz | 230V/I/50hz | 230V/I/50hz |
| FAN | – | Helicoidal | Centrifugo | Centrifugo |
| DIMENSIONS (WIDTHxDEPTHxHEIGHT) | mm | 785X1395x1190 | 785X1860x1190 | 1015X2110x1630 |
| SMOKE OUTLET | mm | 150 | 150 | 200 |
