MARANO Fully Modular Aluminium Fencing System
MARANO Fully Modular Aluminium Fencing System

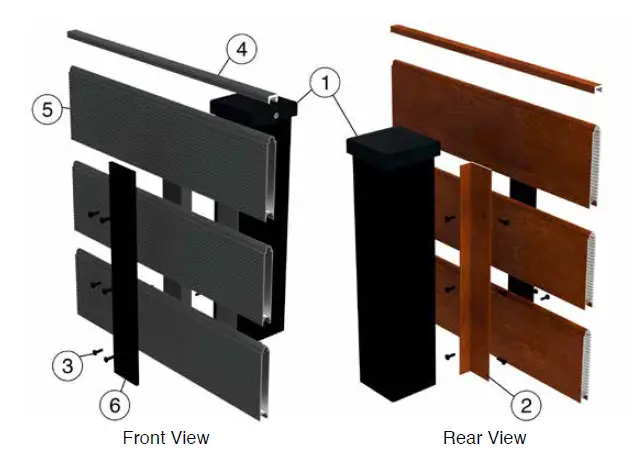

COMPONENTS
| ID | Description | Size mm | Colour | Code |
|
1 | Bolt-Down Post for 1.2m High Fence | 1185 x 50.8 x 50.8 | Black Gloss | 76PB5012B |
| Concrete-In Post for 1.2m High Fence | 1750 x 50.8 x 50.8 | Black Gloss | 76PC5012B | |
| Bolt-Down Post for 1.8m High Fence | 1870 x 76.2 x 76.2 | Black Gloss | 76PB7518B | |
|
2 |
Angle 1.5mm Thick | 1100 x 40 x 20 | RAL 9005 Black | 76A001B12 |
|
1800 x 40 x 20 | RAL 9005 Black | 76A001B18 | ||
| RAL 7012 Basalt Grey | 76A001A18 | |||
| Golden Oak Wood Effect | 76A001G18 | |||
| 3 | Self Tapping Screws Panhead – Stainless Steel (x 200) | 4.2 x 13 | – | 5004PS4213 |
| Screws for Fixing Boards (x100) | 4.2 x 12 | Black | 76SS4212DB | |
| 4 | 6m Long Top Cap | – | RAL 7012 Basalt Grey | 76S002TCA |
| Golden Oak Wood Effect | 76S002TCG | |||
| 5 | 6m Long Double Sided Slats Smooth/Grooved | – | RAL 7012 Basalt Grey | 76S002A |
| Golden Oak Wood Effect | 76S002G | |||
| 6 | 5mm Thick Flat Bar | 1800 x 50 | Black Gloss | 66FB50518 |
All components are aluminium unless otherwise stated. Key:
STANDARD POSTS

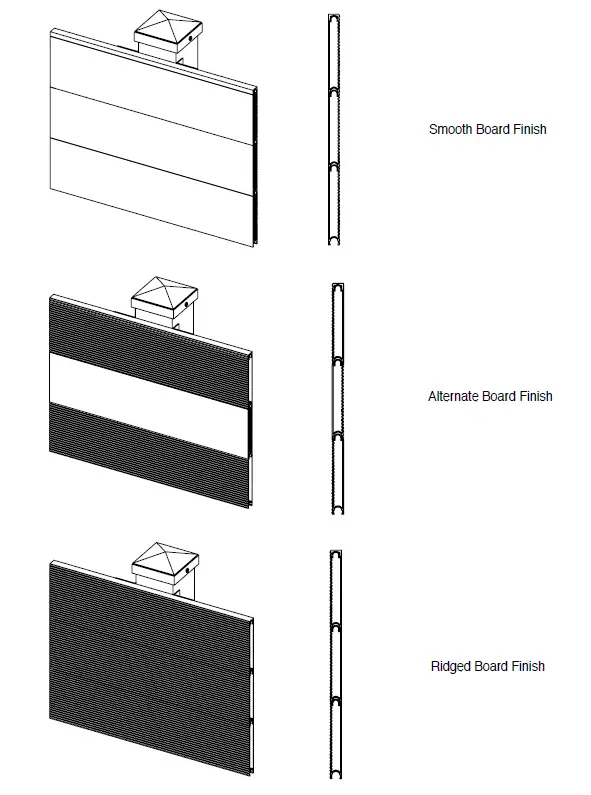

One Board, Three Different Looks
Our unique double-sided, Stripe fencing system can create three very different and stylish looks with a single board.

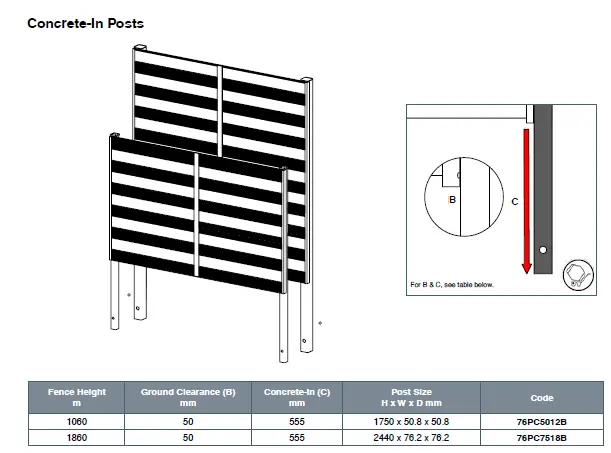

Concrete-In Posts

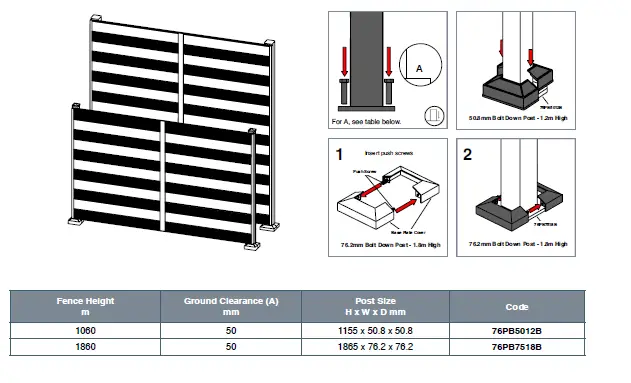

Bolt-Down Posts
BESPOKE POSTS

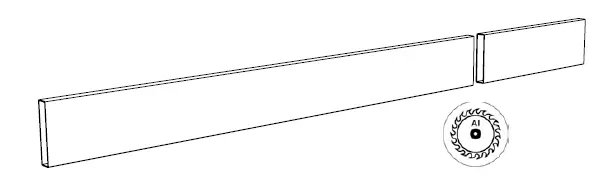

Our 1.2 and 1.8m posts for the Marano Stripe system can be easily cut to size to suit your needs. Boards can also be cut to length as required.

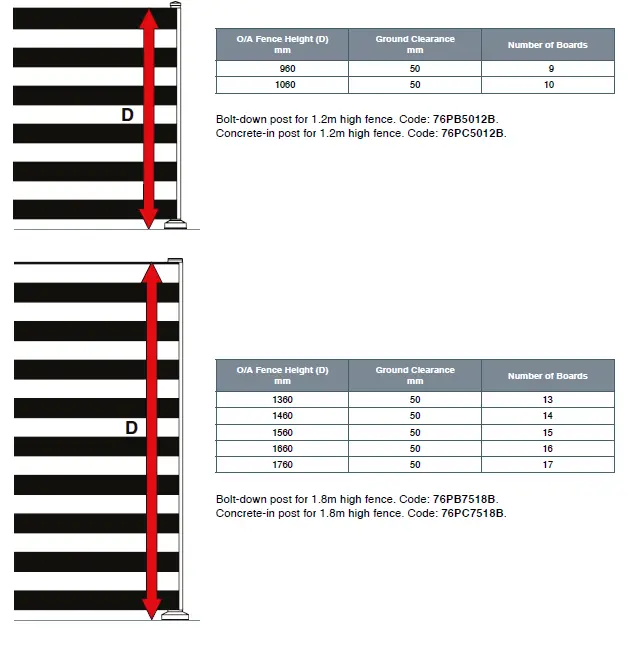

IMPORTANT: Please refer to the table below when determining fence height and gap between boards.
Bolt-down post for 1.2m high fence. Code: 76PB5012B. Concrete-in post for 1.2m high fence. Code: 76PC5012B.This system can also be fitted between brick pillars or wooden posts providing the width of the openings is correct.

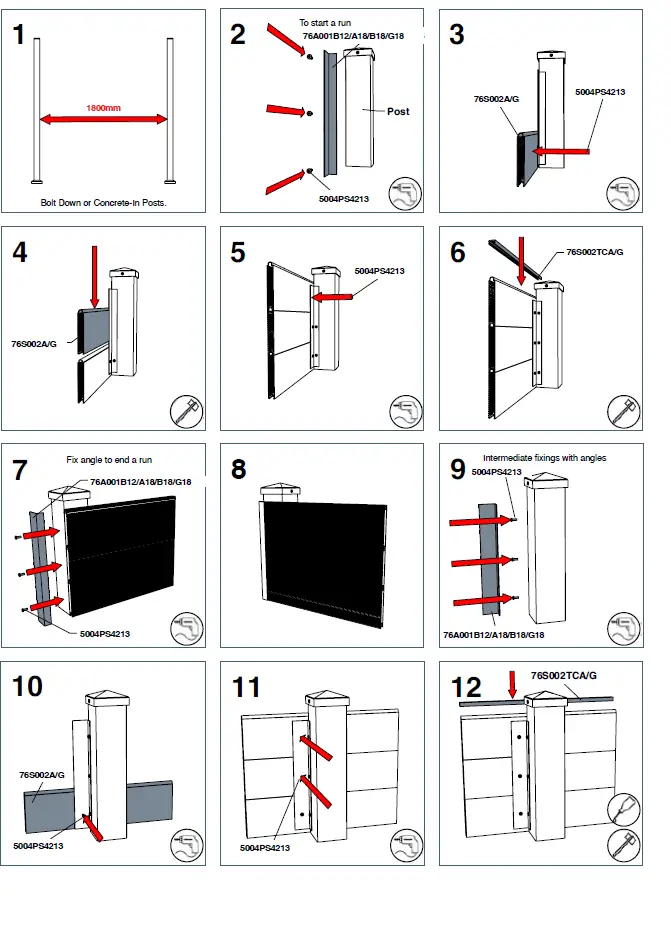

INSTRUCTIONS

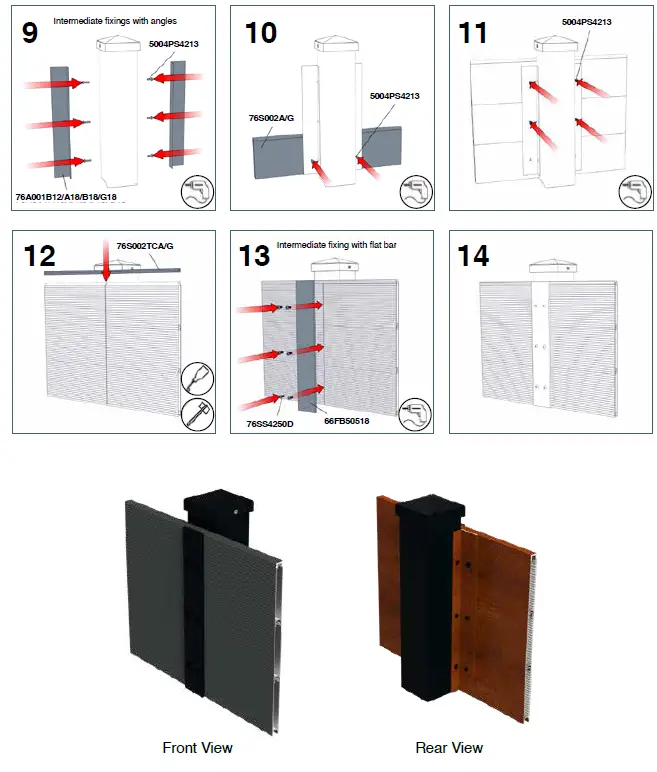

Meeting Two Boards at Intermediate Post – continue from Step 8
Please note: Post centre measurements are shown as a guide only. Whilst we do our best to advise and guide, it remains the installers responsibility to ensure the final installation complies with any current building regulations and is securely installed. As we have no knowledge of the location, ground type, or the layout of your system, we would always advise customers to consider these factors and adjust as appropriate.F.H. Brundle 24-36 Lamson Road, Ferry Lane North, Rainham, Essex RM13 9YY
