Godox Led1000ii Led Video Light Instruction Manual

LED
LED VIDEO LIGHT
LED1000 D II LED1000Bi II
Instruction Manual

Foreword

Thank you for purchasing this Godox product!
This LED1000 II video light is excellent for product shooting, photojournalistic and video recording, etc. It provides a wide spectrum, beautifully soft and even illumination for photography. Two models are available: LED1000D II Daylight Version (5600K), and LED1000Bi II Bicolor Version (3300K~5600K).
Features:

• 1024-LED-bulbs panel is lithium-ion or DC powered
•  Wirelessly adjust brightness or color temperature
•  Large-sized LCD panel. Settings auto-saved.

Warning

Always keep this product dry. Do not use in rain or in damp conditions.
Do not disassemble. Should repairs become necessary, this product must be sent to an authorized maintenance center.
Keep out of reach of children.
As this product does not have a waterproof function, please take measures to waterproof in a rainy or damp environment.
Do not use or store the product if the ambient temperature reads over 50 °C.
Do not use the flash unit in the presence of flammable gases, chemicals, and other similar materials. In certain circumstances, these materials may be sensitive to the strong light emitting from this flash unit, and fire or electromagnetic interference may result.

Observe precautions when handling batteries:

• Do not put batteries into a fire or apply direct heat to them.
• Batteries are prone to leakage when fully discharged. To avoid damage to the product, be sure to remove batteries when the product is not used for a long time or when batteries run out of charge.
• Should liquid from the batteries come into contact with skin or clothing, rinse immediately with fresh water.

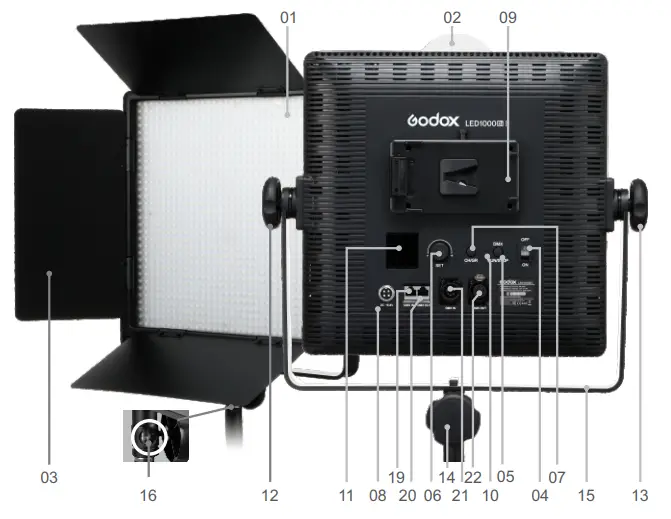

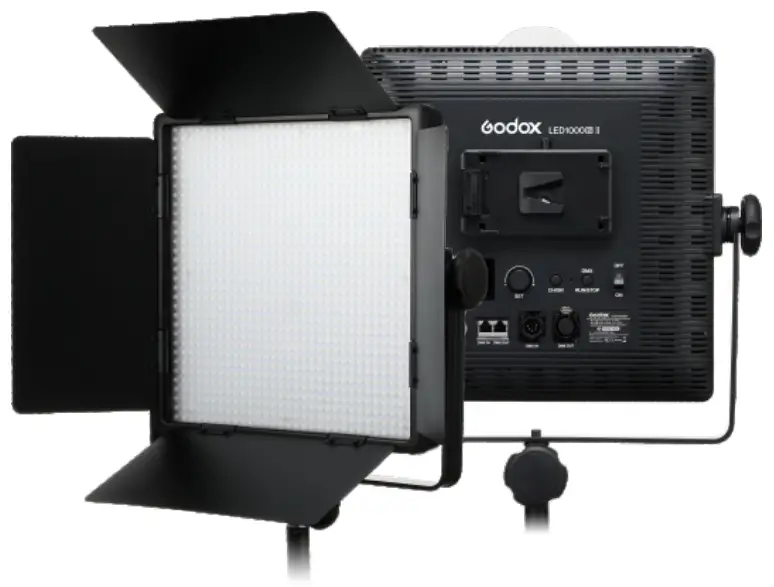

Parts

Power Management

1. Power Supply
   Two power supply modes are available:

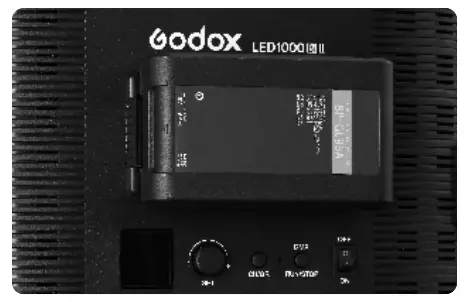

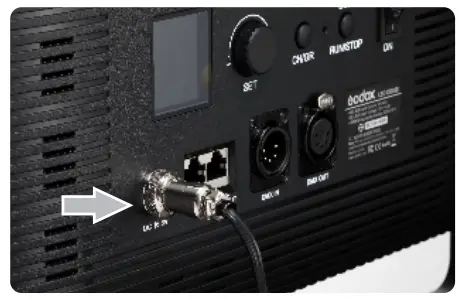

   ● Using lithium battery: This light uses a SONY BP-L model lithium battery (purchased separately).	● Using DC power jack: This light can be powered by a DC power supply. Use a 13~16.8V adapter (included) to connect the light with the DC power jack (08).

   Note:
   ● When using a lithium battery, the Battery Level Indicator is displayed on the LCD panel. When the indicator blinks, the lithium battery power is low. Please recharge it immediately before usage in order to avoid forceful auto-off.

2. Installing Lithium Battery
   ● Turn the Power Switch (04) off.

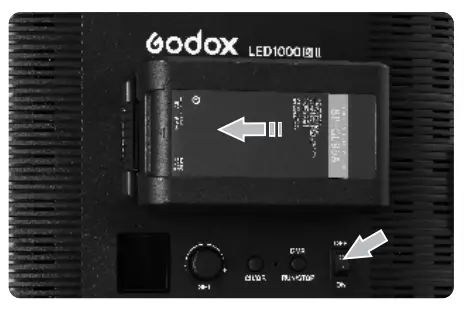

   ● Target the socket of the lithium battery towards the “+” “-” contacts of the Battery Compartment (09). Push the battery in until it locks.
   ● Power the light on.
   ● After using the light, please power it off.

Using the Video Light

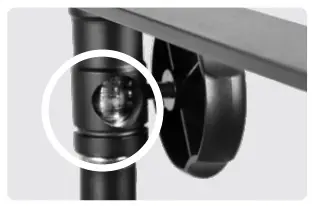

• Screw the Knob C (14) to the highest point and install the light stand onto the Bracket Mounting Hole (16).
• Tighten the Knob C (14).

Operation

1. Power Supply
   ● Insert lithium battery or connect the light with DC power supply. Switch the power on, the Power Indicator is on and the video light gives out light.

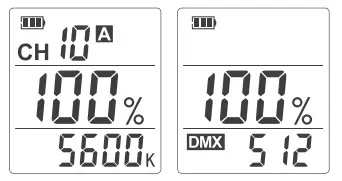

2.  LED General Mode:
   ● in the initial state, power the LED light on to enter LED general mode (long-press the RUN/STOP button to switch LED general mode and DMX mode).
3.  Light Brightness/Color Temperature Adjustment:
   ● Light Brightness Adjustment: turn the selector dial on the body to adjust light brightness from 0% to 100%.
   ● Color Temperature Adjustment: short press the SET button and the color temperature value will be blinking. Then, turn the select dial to adjust the color
   temperature from 3300K to 5600K.

   Model	Color Temperature	Light Brightness Range
   LED1000D II	5600K	0%-100%
   LED1000Bi II	3300K/5600K	0%-100%
   	3400K-5500K	25%-100%



4. Wireless Remote Control
   This product has a remote grouping and control function.
   Up to 6 groups of LED light can be controlled. 16 channels are available with strong anti-interference capability.
   Please set the channels and groups of LED video lights to the same as those of remote control before usage.Adjusting Channel/Group of the LED Video Light

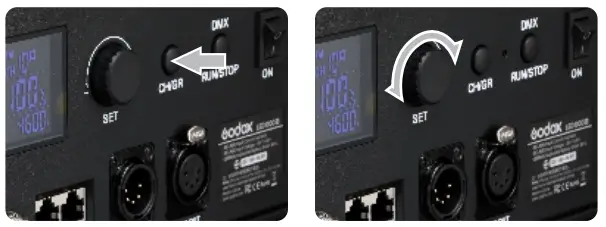

   •  Press the CH/GR button and the group icon blinks. Turn the select dial to choose a group ID (A to F).
   • Press the CH/GR button twice and the channel icon blinks. Turn the select dial to choose a channel ID (1 to 16).

   Note: The wireless signal can be received only when the LED light is powered on.
   Other Operation Tips:
   ● Pressing the ON/OFF button on the remote control can turn on/off all the LED groups.
   ● Pressing the “SET” button on the remote control for 2 seconds can turn on/off the current LED group.
   ● The remote control will auto power off after four hours of idle operation.
   Tips of Using Remote Control:
   (1)When using the Daylight Version LED1000D II, please set the color the temperature of the remote control as 5600K constantly;
   (2)Please remove the battery if the light will not be used for an extended period of time.

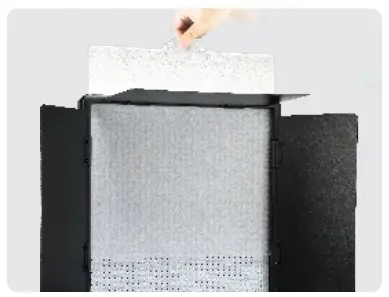

5. Replacing A Color Filter
   ● Pinch the edge of the color filter (02) and pull it out upwardly.
   ● Insert a new color filter in and push it downward. Then the color filter is securely in position.

DMX Mode

1. Choose DMX Mode

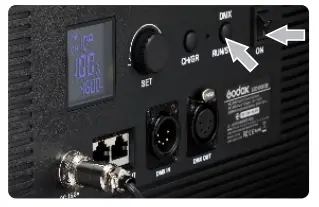

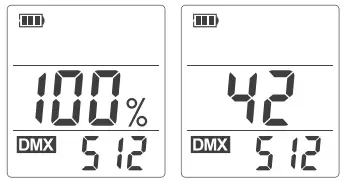

   ● In the initial state, hold down the RUN/STOP button and power the light on to enter DMX mode, and the brightness value and color temperature value will be displayed on the LCD panel.
   ● In LED general mode, long-press the RUN/STOP button to enter DMX mode. In this way, the brightness value and color temperature value won’t be displayed on the LCD panel.

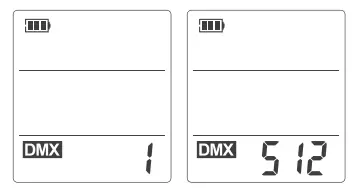

2. Set DMX Channel
   ● Press the SET button and the DMX channel will be blinking. Turn the select dial to set DMX from 1 to 512.
3.  Connect to Console
   ● Choose DMX port according to the model to be controlled. Each light will occupy two DMX channels and the light brightness or color temperature can be adjusted.

Note: In DMX mode, the color temperature and light brightness can only be controlled by the console.

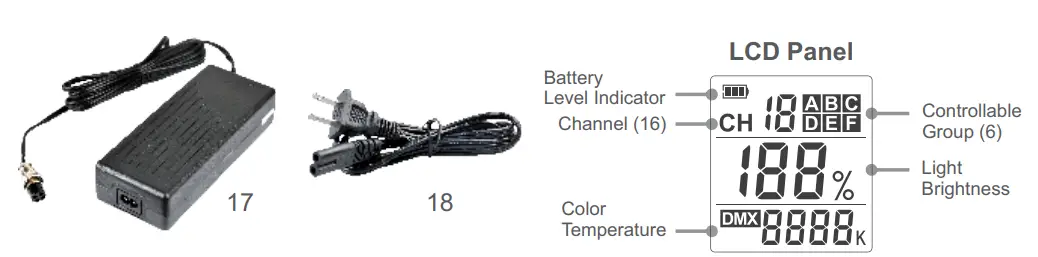

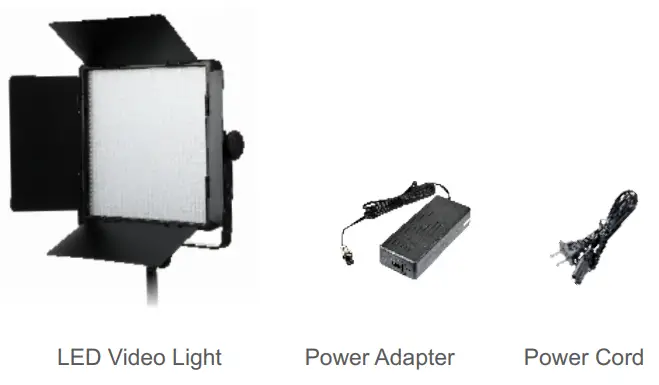

What’s in the Box of LED1000II?

Technical Data

* Product design and specifications are subject to change without notice.
