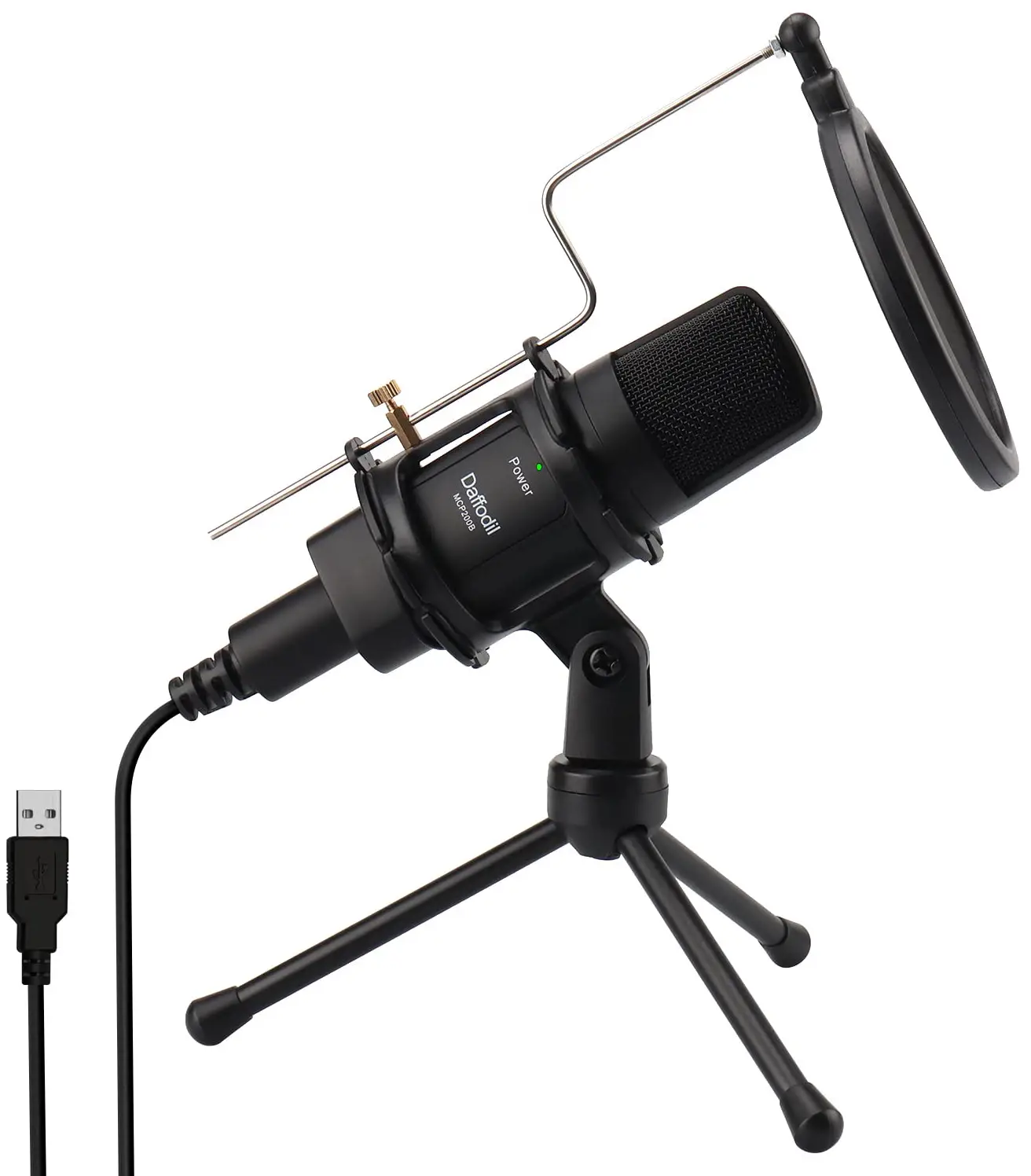

Daffodil MCP200B Condenser Streaming Microphone User Guide

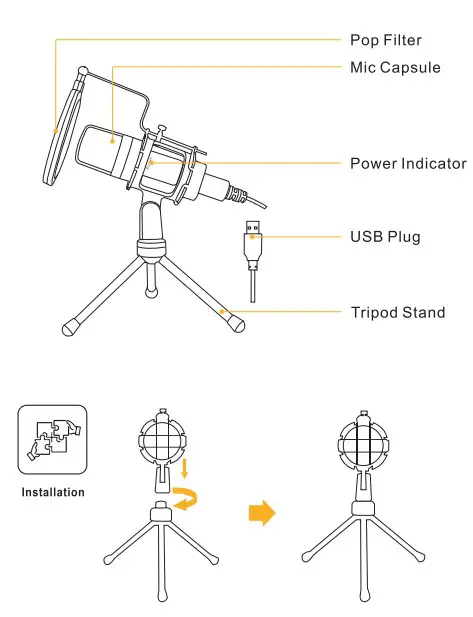

Instalation

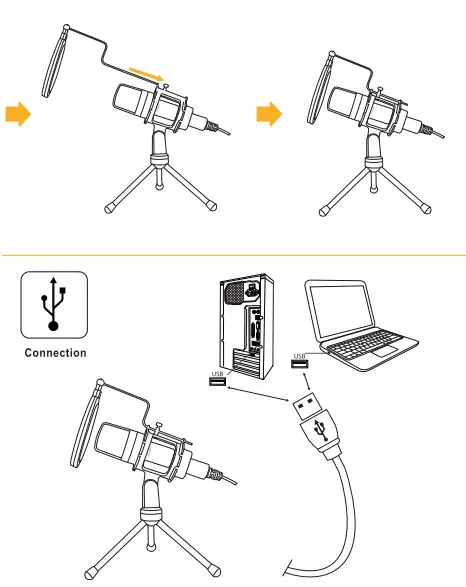

Connection
Settings
Quick Start Guide
| Transducer type | Capacitive |
| Equivalent sound level | _20dB |
| Maximum sound pressure | 110dB |
| Polar pattern | Omnidirectional |
| Attenuation | N/A |
| Sampling rate | 44.1KHz /16bit |
| Frequency response | 20Hz – 20KHz |
| Sensitivity | -38dB±2dB |
| Sound to noise ratio | 70dB |
| Recommended impedance | 2.2K c). |
| Output impedance | 32C |
| Current | 18mA |
| Operation temperature | -20 – 80 C |
| Cable length | 1.5 meters |
