Aim Solo 2 Dl Kit For Kawasaki Ninja From 2016 Installation Guide

Solo 2 DL Kit for Kawasaki Ninja from 2016
Installation Guide

Solo 2 DL Kit for Kawasaki Ninja from 2016

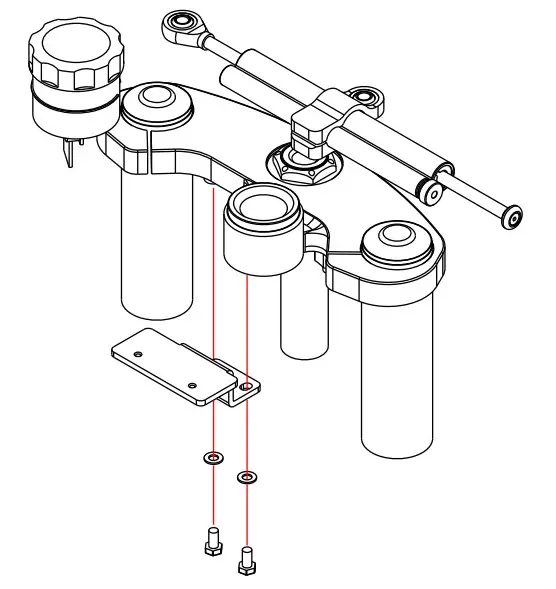

Fix the adapter bracket through the two M6 holes under the steering plate using the M6x12 screws and the toothed washers you find in the kit.
If needed remove the bike screen.

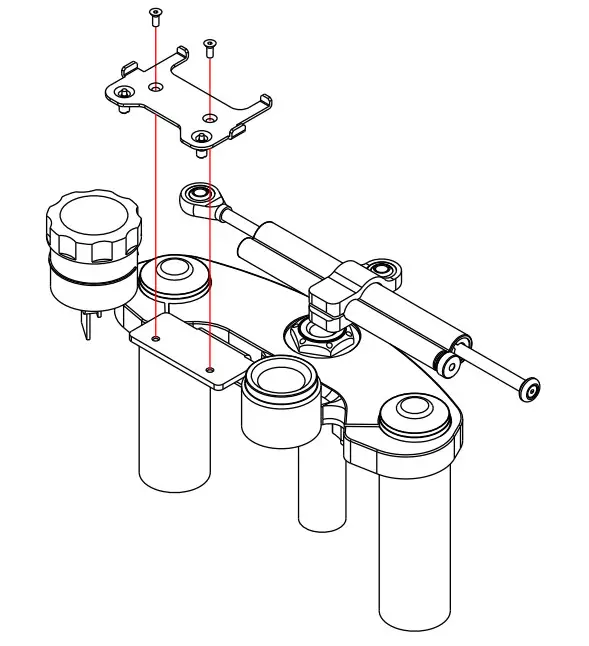

Fix Solo plate on the adapter bracket using M4x10 screws included in the kit

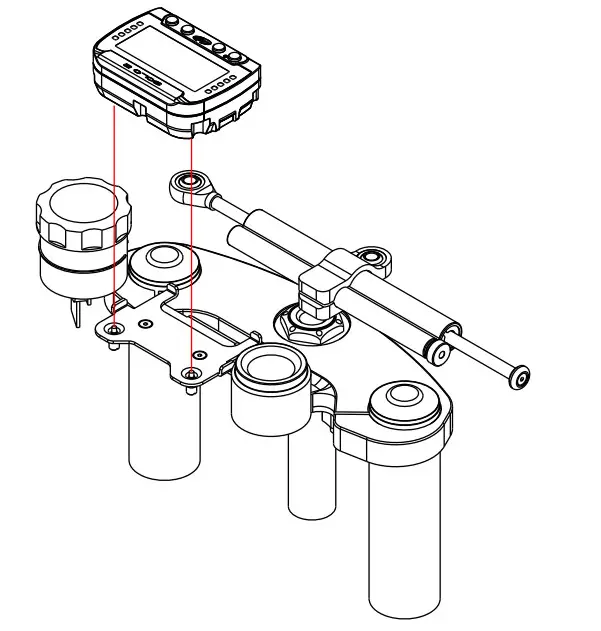

Place Solo 2 on its plate

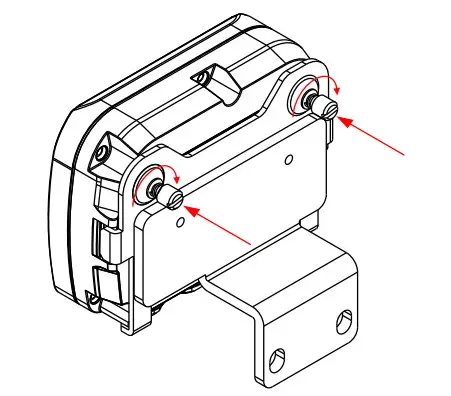

Fix Solo 2 to the plate using the rear screws previously inserted in the metal plate

* Kawasaki Ninja ZX-10R and ZX-10R Racing kit
