CONTROLS R17-RF 1 Zone RF Timeswitch Installation Instructions

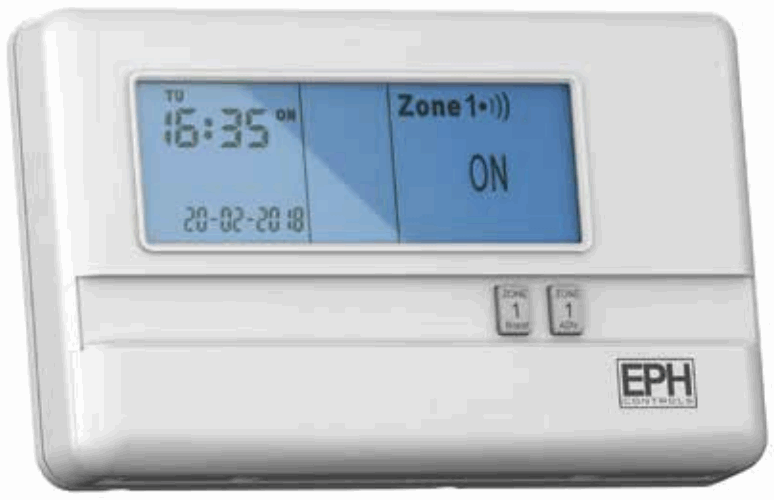

R17-RF 1 Zone RF Timeswitch

Important: Keep this document
This 1 zone RF timeswitch is designed to provide ON/OFF control for 1 zone, with the value added application of in built frost protection.

CAUTION!
Installation and connection should only be carried out by a qualified person and in accordance with national wiring regulations.

• Before commencing any work on the electrical connections, you must first disconnect the timeswitch from the mains. None of the 230V connections must be live until  the installation has been completed and the housing is closed. Only qualified electricians or authorised service staff are permitted to open the timeswitch. Disconnect  from mains supply in the event of any damage to any buttons.
• There are parts that carry mains voltage behind the cover. The timeswitch must not be left unsupervised when open. (Prevent non specialists and especially children  from gaining access to it.)
• If the timeswitch is used in a way not specified by the manufacturer, its safety may be impaired.
• Ensure that this wireless enabled timeswitch is installed 1 metre from any metalic object, television, radio or wireless internet transmitter.
• Prior to setting the timeswitch, it is neccessary to complete all required settings described in this section.
• Never remove this product from the electrical baseplate. Do not use sharp tools to push any button.

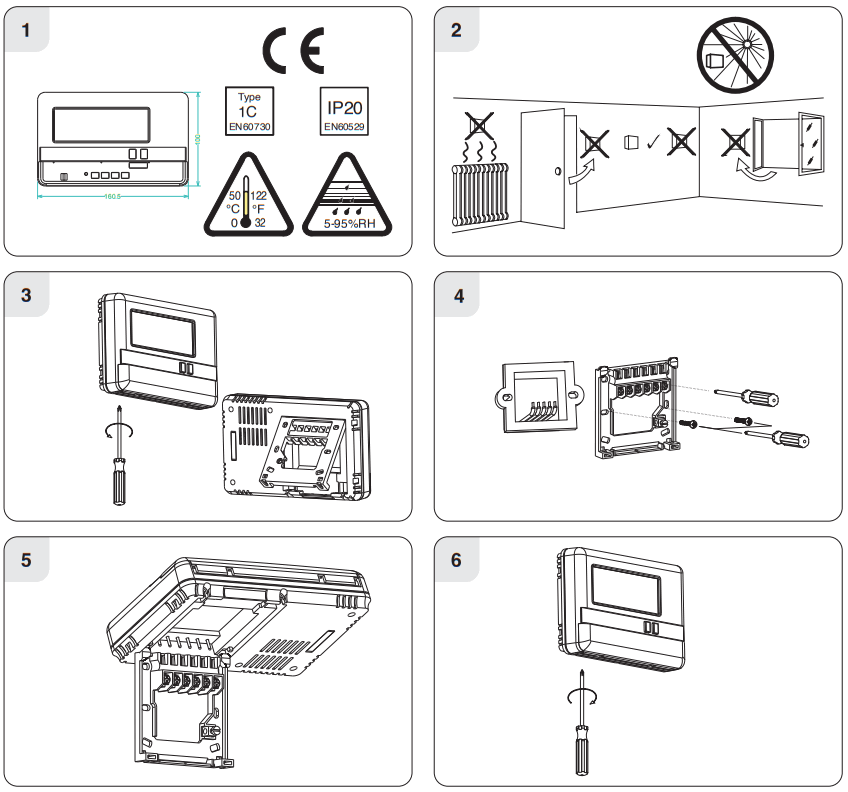

This timeswitch can be mounted in the following ways:

1. Directly wall mounted
2. Mounted to a recessed conduit box

Contents

1. Factory default settings
2. Specifications & wiring
3. Setting the date & time
4. Frost protection
5. Master reset

Factory default settings

Day-Light Saving

Specifications & wiring

If mains voltage output is required, terminals L & 1 must be electrically linked. The cable link is provided with this timeswitch.

Setting the date and time

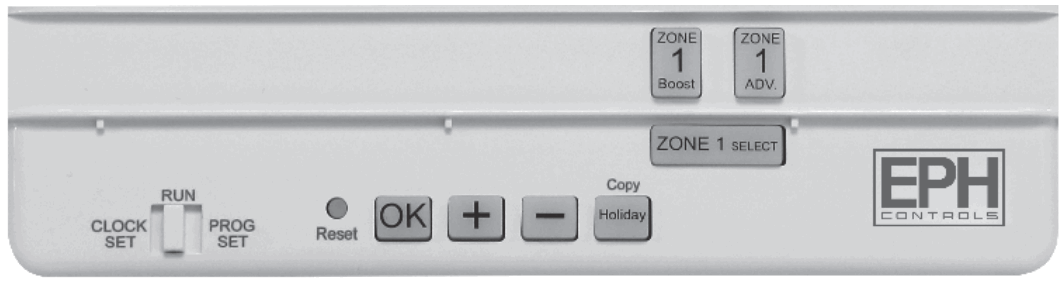

Lower the cover on the front of the timeswitch.
Move the selector switch to the CLOCK SET position.
Press the or buttons to select the day. Press
Press the or buttons to select the month. Press
Press the or buttons to select the year. Press
Press the or buttons to select the hour. Press
Press the or buttons to select the minute. Press
Press the or buttons to select 5/2D, 7D or 24H _ Press
The date, time and function are now set.
Move the selector switch to the RUN position to run the program, or to the PROG SET position to change the program setting.

Frost protection function

Selectable range 5~20°C
This function is set to protect pipes against freezing or to prevent low room temperature when the timeswitch is programmed to be OFF or is manually OFF.
Frost protection can be activated by following the procedure below.
Move the selector switch to the RUN position.
Frost protection can be activated by following the procedure below.
Move the selector switch to the RUN position.
Press both the and buttons for 5 seconds, to enter selection mode.
Press either the or buttons to to turn On or turn Off frost protection.
Press button to confirm
Press either the or buttons to increase or decrease the desired frost protection setpoint.
Press to select.
Zone 1 will be switched ON in the event of room temperature falling below the frost protection setpoint.

Master reset

Lower the cover on the front of the timeswitch. There are four hinges holding the cover in place.
Between the 3rd and 4th hinges there is a circular hole. Insert a ball point pen or similar object to master reset the timeswitch.
After pressing the master reset button, the date and time will now need to be reprogrammed.
