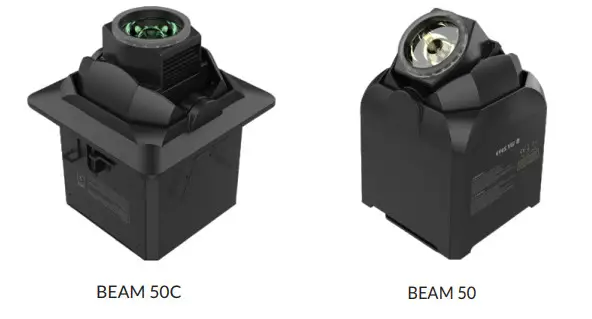

Eyes VW,C Eyes CVW,CC
Owner’s Manual
FEATURES
- LED can be pixel controlled (VW)
- Adjustable color temperature (VW)
- Color Rendering: Ra≥95(VW)
- Uniform RGBW color mixing and rainbow effect (RGBW)
- The Led ring can be controlled individually and provide pixel control, strobe, dimming and other effects.
- Smooth dimming from 0-100%
- Outstanding strobe effect with variable speed

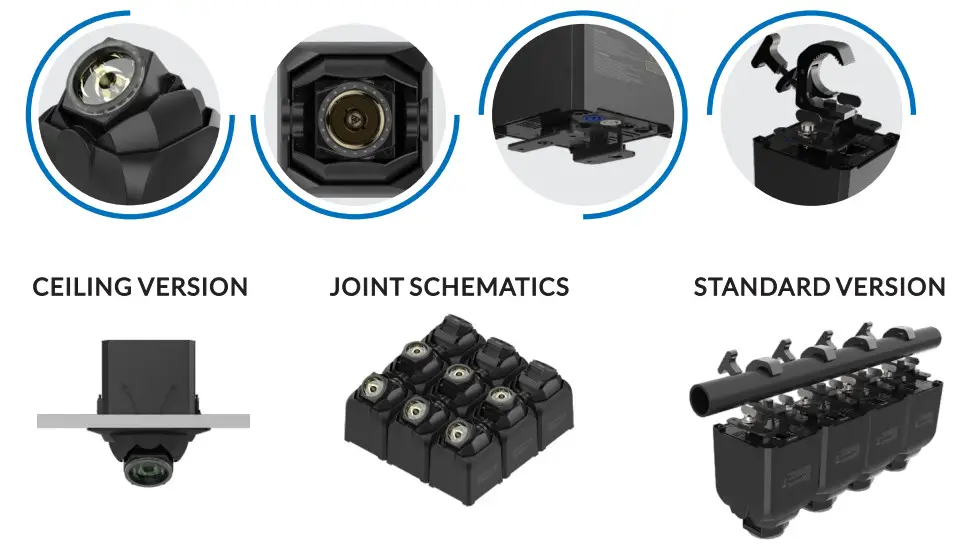

- Easily combine with each other by horizontal or vercal installaon and can be embedded into the ceiling
- Compact body, light weight, energy-saving, excellent thermal design, long lifespan
- Suitable for bar, KTV, hotel, banquet hall and other entertainment places
TECHNICAL SPECIFICATIONS
Specificaons
- Light Source:
1x 40W White LED (VW)
1x 40W RGBW LED (RGBW)
20 x 0.5W Ring LED
Color temperature: 3,000-6,000K(VW) - Beam Angle Opon: 5°/25°
- (Note: the beam angle can be customized according to the applicaon)
Control
- DMX channel: 12/27 (VW) 14/29 (RGBW)
- Protocols: DMX512, RDM
- Firmware Upgrade via DMX link
Pan/Tilt
- Pan/Tilt movement: 77°/ 77°
- Pan/Tilt Resoluon: 16 bit
Construcon
- Display: OLED display
- Data In/Out: 3-pin or 5-pin XLR
- Power In/Out: Power Connector in/out
- Protecon Rang: IP20
Electrical and Physical
- Input Voltage Range: AC 100-240V, 50/60Hz
- Power Consumpon: 50 W(VW) 60 W(RGBW)
- Dimension: 166 x 166 x 254mm (6.5″ x 6.5″ x 10″)（BEAM 50）195 x 195 x 236mm (7.7″ x 7.7″ x 9.3″)（BEAM 50C）
- Carton Dimension: 325 x 235 x 270mm(12.8″ x 9.3″ x 10.6″)(BEAM 50) 345 x 275 x 305mm(13.6″ x 10.8″ x 12.0″)(BEAM 50C)
- Weight: 4 kg (8.8lbs) (BEAM 50)
3.4 kg (7.5lbs) (BEAM 50C)
4.7kg (10.4lbs) (one-pack per carton) (BEAM 50)
4.3kg (9.5lbs) (one-pack per carton) (BEAM 50C)

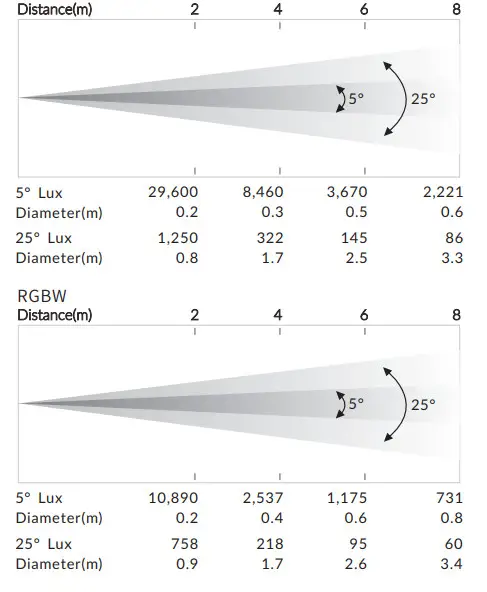

PHOTOMETRICS DIAGRAM
https://world.acme.com.cn/Index

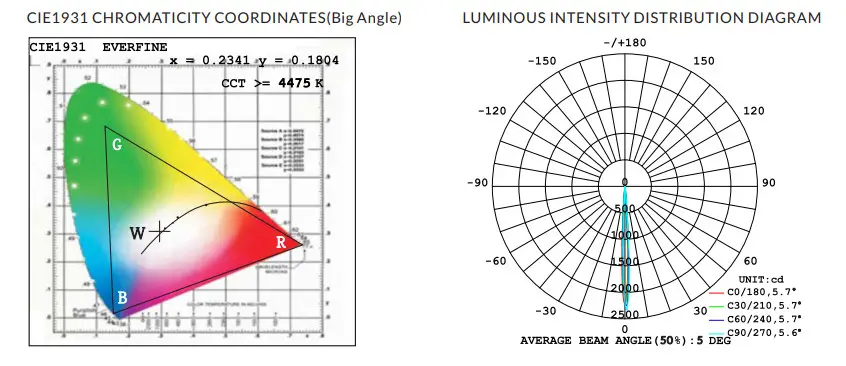

LIGHT QUALITY PARAMETER

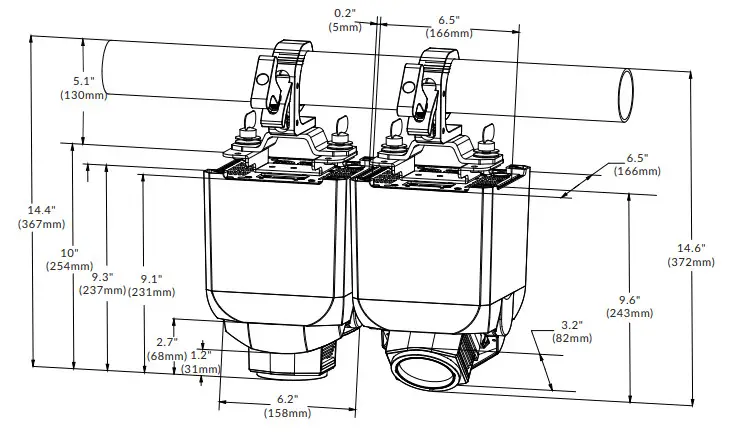

DIMENSIONS mm (in.)
