Futaba T10PX Wheel Spring
Default tension

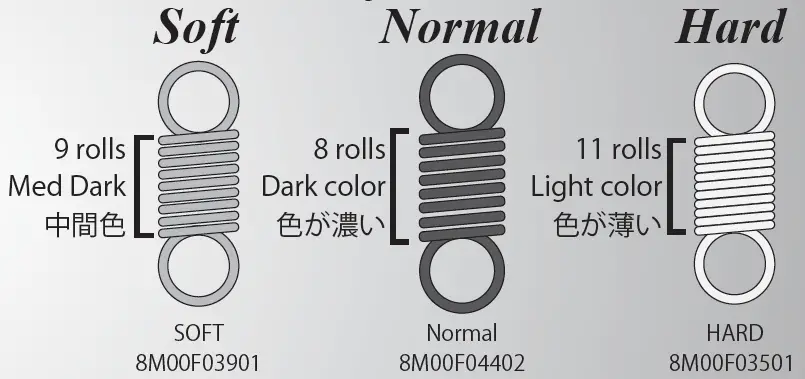

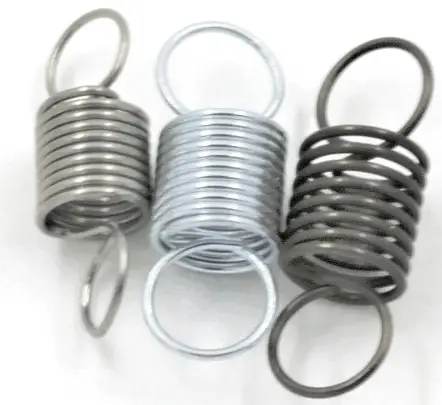

T10PX Spring Wheel spring. There are 3 types with different tensions, so please replace them according to your preference.
INSTALLATION INSTRUCTION

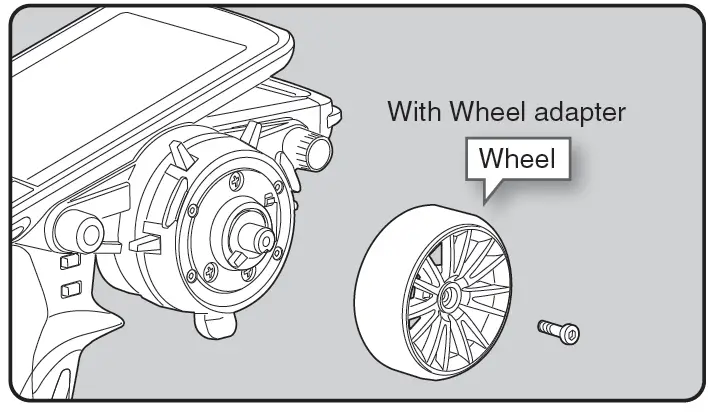

- Hold the wheel and remove the screw. (Using a hex wrench.) Pull off the wheel and wheel adapter.

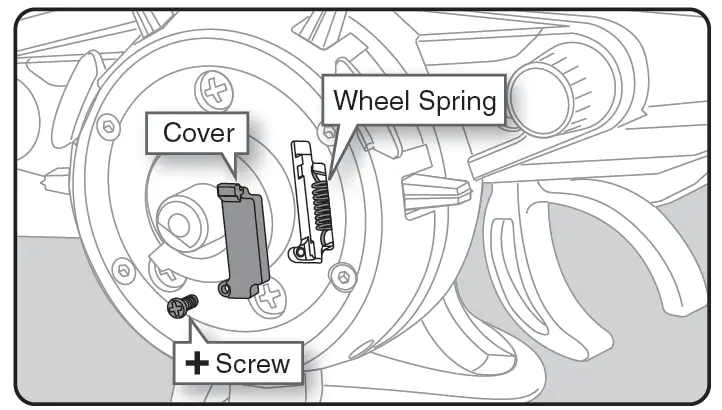

- Remove the wheel spring cover mounting screw. (Using a screwdriver.)
- Makes the wheel spring tension the weakest.
- Replace the wheel springs with tweezers. (Using a tweezers.)
- Calibrate the steering from the System menu Calibration.
