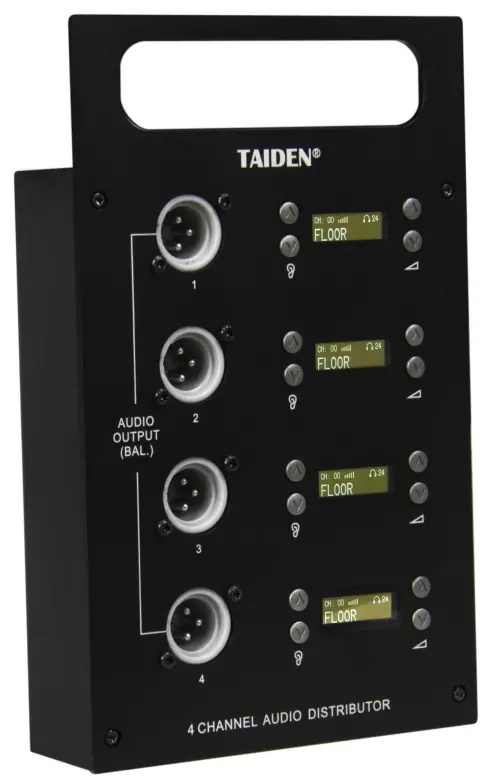

TAIDEN HCS-4842X4 64 Channel 4 Portable Audio Distributor

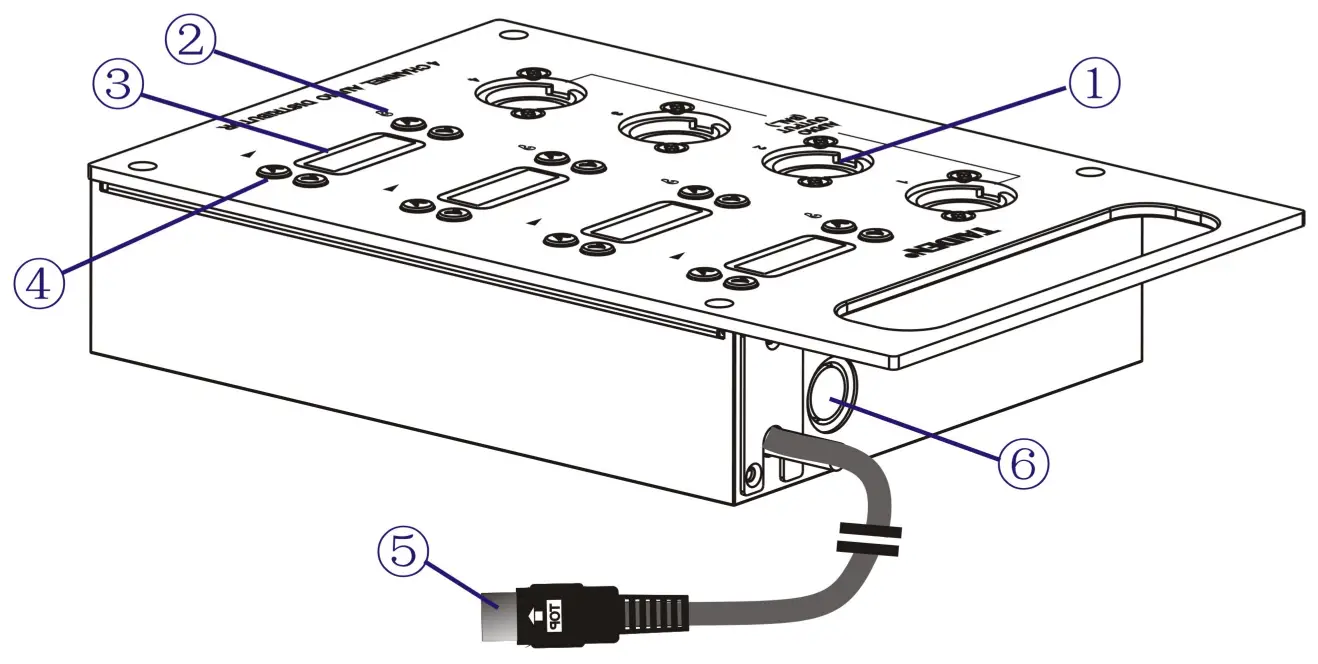

Functions and indications
① Plug of audio output (3-pin XLR balanced output)
② Channel selector buttons
• Select language channel by pressing /\ orV button, there are 64 channels at all.
③ OLEO screen
• Display for current channel number, signal strength, language name and volume.
④ Volume control buttons
⑤ 2.1 m cable with 8P-DI N plug
• Connect to main unit or last HCS-4842X4.
⑦ UPLINK,8P-DIN socket
• For cascade connection.
Technical Specifications
Frequency response …………… 100 Hz – 15 kHz
S/N ……………………………………………….. ~ 68 d 8
Audio output. …………. 4 X XLR Balanced output
…………………………….. Max. 0 dBV
THD ……………………………………………….. ~0.5%
Power supply ……………………… DC 48 V, 65 mA
Dimensions ……………………. 226 x 141 x 42 mm
Mounting ……. Flush-mounting or wall-mounting
Weight …………………………………………….. 1.0 kg
System Connection
HCS-4842X4 is an audio channel distributor with excellent capability. It has superior acoustics and faster by using fully digital audio technology in combination with the built-in high performance CPU. It has 64 language channels for simultaneous interpretation and 4 audio outputs, each output is equipped with channel number, language and volume. With 8P-DIN plug and socket can be used to extend connection by “Daisy Chain” topology.
