QTEX HFOC-100A Active hybrid armored cable User Guide
HFOC-100A
System Requirements for Setup
- Hardware requirements
- You have to have a display source (Media player, PC or laptop). It should support the maximum graphic resolution feature of Display (TV, Monitor or Projector) to be connected.
- No special requirements memory size, CPU speed and chipsets, if you’ve already properly installed your systems.
- Software requirements
- No special restrictions, if you’ve already properly installed your systems.
- AC/DC Power Adapter Technical Advisory
The HFOC-100A is designed to use +5V internal power supplied through on the graphic source port.
Installation
Step 1
Carefully unpack the contents of the shipping group.
Step 2
Plug directly the plug of the Tx side of HFOC-100A into the receptacle of source (Media player, PC or laptop) without power up of the devices.
Step 3
Plug the plug of the Rx side of HFOC-100A into the receptacle of a Display.
Step 4
Power ON the device of a source and a Display
Stretch HDMI
User’s Manual
HDMI 2.0 Armoured AOC Cable

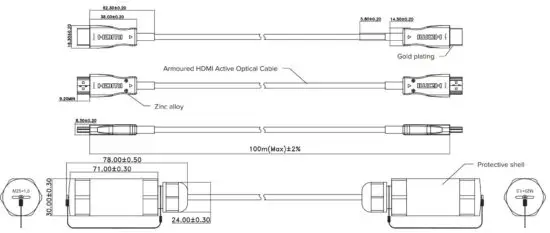

Product Specifications
Note
- Supports computer resolutions to 4K@60Hz@4:4:4
- Plug and Play
- Compatible with HDMI 2.0 standard
- Support HDCP2.2@ARC
- Self-detecting function for EDID information
- No loss of signal
- Hybrid optical саblе with fiber and copper wire
- PIN gold plated, shell gold plated
- With anti – sunlight ultraviolet irradiation, acid, alkali, oil resistance, fire retardant. Enable саblеs to meet harsh environmental applications
- Operating temperature: -40° С to 70 С°
- Minimum bending radius 20mm
- Мах. tension force: 100N
- Powered via HDMI devices
- 4core ОМЗ Multimode Fiber (high speed data) and 7core copper саblе
- Round саblе Black TPU jacket
- RoHS 2.0 & REACH compliant
- Packing: package 1pc reel
