Burley Coho Thru Axle Fit Guide
HOW TO USE
This guide is intended to help determine which Coho® Thru Axle you will need for hitching the Coho® XC Cargo Trailer to your bike.

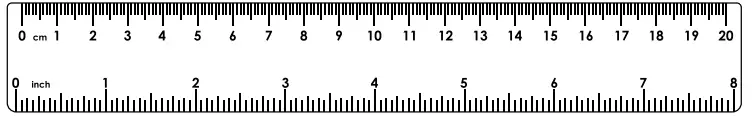

- Print this sheet at 100% on 8.5” X 11” paper. Verify the illustration is to scale by using a ruler.
- Confirm the thread pitch of your current axle by placing it over the illustrations below to find a match. The thread pitch is the distance from the tip of one thread to the tip of the next.

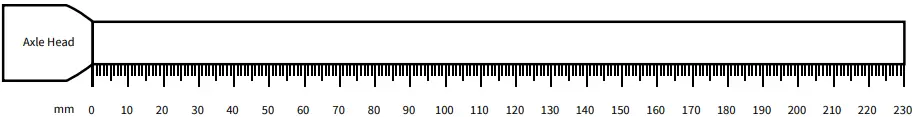

- Measure the length of your current thru-axle using this illustration. Align your axle at 0mm, and measure from the base of the axle head to the tip of the threads

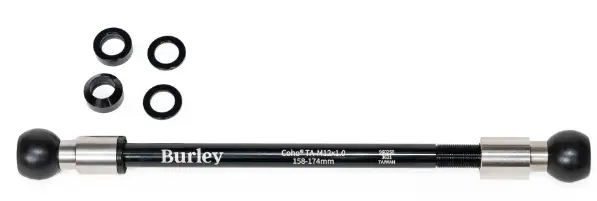

- Use the thread pitch and axle length to determine which model Coho Thru Axle axle you need.
Measurement
| Thread Pitch (TP) | Frame Measured Axle Length | Compatible Burley Coho Thru Axle | SKU |
| 1.0 | ~158-174mm | 12 X 1.0, 158-174mm | 960250 |
| 1.0 | ~229mm | 12 X 1.0, 219-229mm | 960225 |
| 1.5 | ~159-165mm | 12 X 1.5, 159-165mm | 960252 |
| 1.5 | ~172-178mm | 12 X 1.5, 172-178mm | 960213 |
| 1.5 | ~209mm | 12 X 1.5, 209mm | 960226 |
| 1.5 | ~229mm | 12 X 1.5, 229mm | 960215 |
| 1.75 | ~174-180mm | 12 X 1.75, 174-180mm | 960214 |
| 1.75 | ~192-198mm | 12 X 1.75, 192-198mm | 960228 |
| 1.75 | ~209mm | 12 X 1.75, 209mm | 960227 |
| 1.75 | ~229mm | 12 X 1.75, 229mm | 960216 |
note
If your axle length is not shown for the thread pitch you have, we do not have a compatible thru axle for you at this time.
