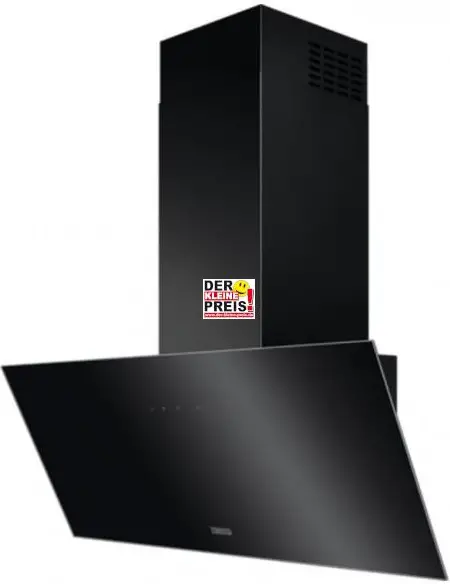

ZANUSSI ZFV619K Chimney Extractor Hood User Manual

SAFETY INFORMATION AND INSTALLATION

WARNING!
Refer to the separate Installation Instructions booklet for Safety Information and Installation. Read carefully the Safety chapters before any use or maintenance of the appliance.

PRODUCT DESCRIPTION

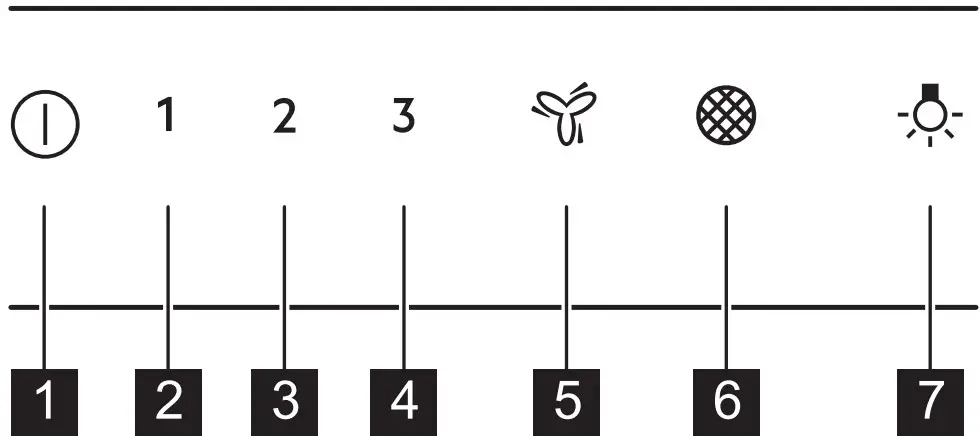

Control panel overview

DAILY USE

Using the hood

Check the recommended speed according tothe table below.

1. While heating up food, cooking with covered pots.
2. While cooking with covered pots on multiple cooking zones or burners, gentle frying.
3. While boiling and frying big quantities of food without a lid, cooking on multiple cooking zones or burners.
   While boiling and frying big quantities of food without a lid, big humidity.

It is recommended to leave the hood operating for approximately 15 minutes after cooking.

The control Panel is a sensor field. To operate the hood touch the symbol exactly in the middle for at least 1 second.

To operate the hood:

1. Turn on the appliance by pressing  the symbol. You can now activate the functions.
2. To activate the function touch the symbol.

The hoods light works independently to other hood functions. To illuminate the cooking surface touch .

To turn off the appliance press the symbol again.

Hob²Hood function

It is an automatic function which connects the hob with a hood. Both the hob and the hood have an infrared signal communicator. Speed of the fan is defined automatically on basis of mode setting and temperature of the hottest cookware on the hob. You can also operate the fan using the hob manually. The function can be activated from panel of the hob.

For more information how to use the function refer to the hob user manual.

Activating Maximum Motor Speed

When you touch , the Maximum Motor Speed starts to operate for minutes. After that time, the appliance returns to its previous speed settings.

When the function is turned on, additional touch on does not have any effects.

Filter notification

Filter alarm reminds to change or clean the charcoal filter and clean the grease filter. The filter indicator is turned on for 30 seconds if the grease filter must be cleaned. The filter indicator flashes for 30 seconds if the charcoal filter must be replaced or cleaned.

Refer to cleaning the grease filter in care and cleaning chapter.

Refer to cleaning the charcoal filter or replacing the charcoal filter in care and cleaning chapter.

To reset the function touch for 3 seconds.

To activate or deactivate function:

1. Switch on the control panel. Make sure that the panel is on.
2. To activate function touch for 3 seconds.
   If the function is activated, the filter icon flashes five times.
3. To deactivate function touch for 3 seconds.

If the function is deactivated, the filter icon turns on for 4 seconds.

CARE AND CLEANING

Notes on cleaning

Cleaning Agents

Do not use abrasive detergents and brushes.
Clean the surface of the appliance with a soft cloth with warm water and a mild detergent.
After cooking some parts of appliance can get hot. To avoid stains appliance must be cooled down and dried with clean cloth or paper towels.
Clean stains with a mild detergent.

Keep the hood clean

Clean the appliance and grease filters each month. Clean the interior and grease filters carefully from fat. Fat accumulation or other residue may cause fire. Follow the instructions for cleaning the accessories when filter notification is on. Refer to Filter notification in daily use chapter.
Grease filters can be washed in a dishwasher.
The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.

Charcoal filter

The time of saturation of the charcoal filter varies depending on the type of cooking and the regularity of cleaning the grease filter. The activated charcoal filter is not washable, cannot be regenerated and must be replaced approximately every 4/6 months of opera‐ tion, or more frequently for particularly heavy usage.

Cleaning the grease filter

Filters are mounted with the use of clips and pins on the opposite side.

To clean the filter:

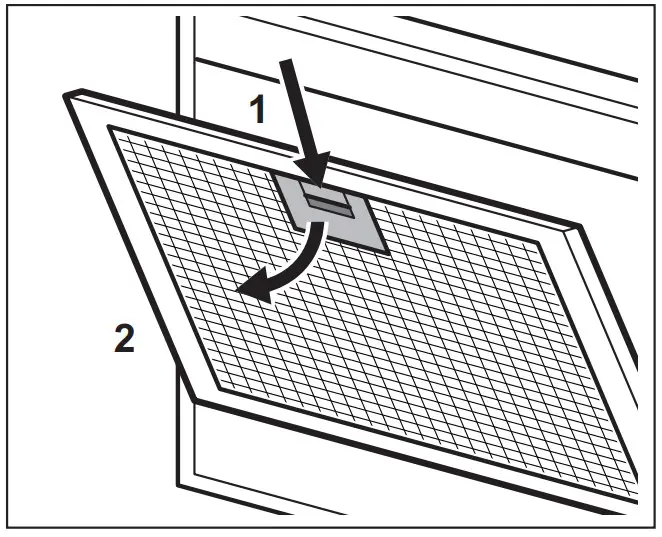

1. Press the handle of the mounting clip on the filter panel underneath the hood (1).

2. Slightly tilt the front of the filter downwards (2), then pull.
   Repeat the first two steps for all filters.
3. Clean the filters using a sponge with non abrasive detergents or in a dishwasher.
   The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.
4. To mount the filters back follow the first two steps in reverse order. Repeat the steps for all filters if applicable

Replacing the charcoal filter – optional

The charcoal filter must be replaced if the filter alarm is on.

Refer to the filter notification in daily use chapter for more information about function.

WARNING!
The charcoal filter is NONwashable! The filter cannot be regenerated!

To replace the charcoal filter:

1. Remove the grease filters from the appliance. Refer to “Cleaning the grease filter” in this chapter.

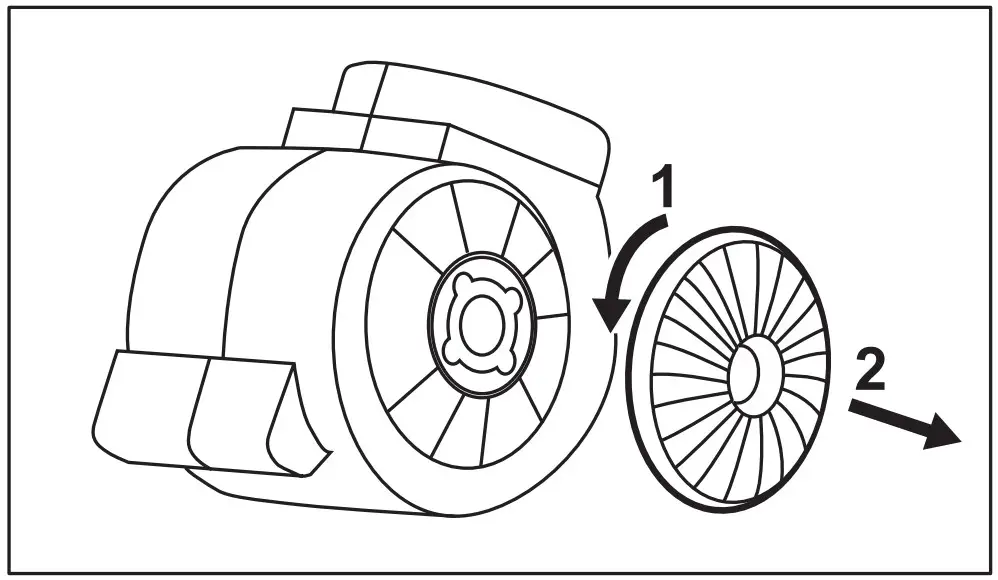

2. Turn the filter counterclockwise (1) and then pull (2).


To mount the filters back follow the steps in reverse order.
In any case, it is necessary to replace the filters at least every four months.

Replacing the lamp

This appliance is supplied with a LED lamp and separate control gear (LED driver).
These parts can be replaced by a technician only. In case of any malfunction refer to “Service” in the “Safety Instructions” chapter

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol . Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
