Savoy House M90070bnb 1-light Wall Sconce Instruction Manual

1-Light Wall Sconce
Instruction Manual
ITEM NO:M90070BNB

M90070BNB 1-Light Wall Sconce

INSTALLATION INSTRUCTIONS

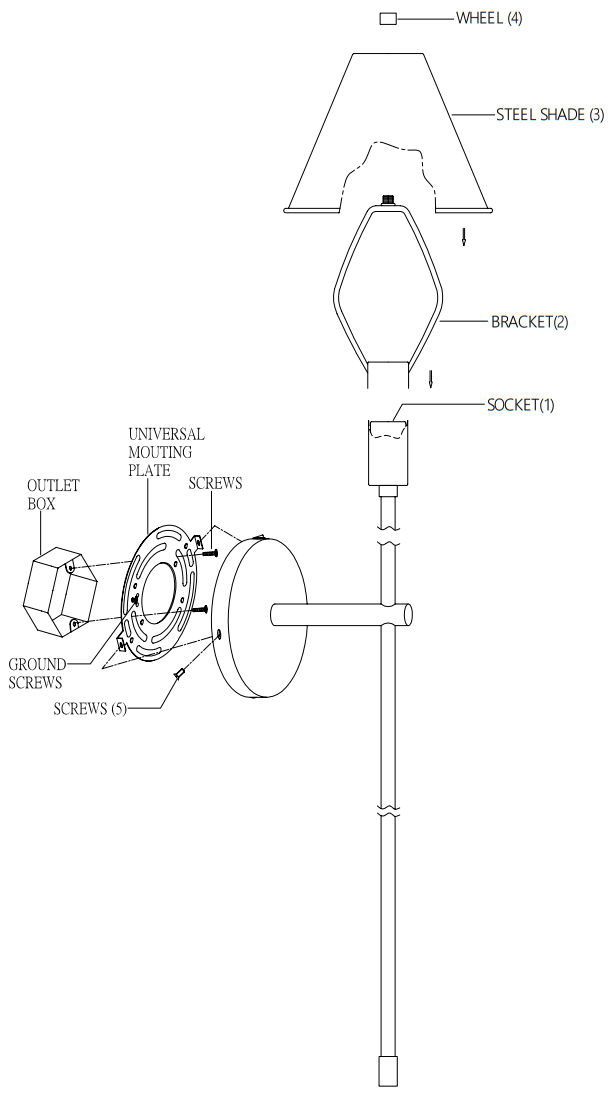

1. Carefully remove the fixture out of the carton, and check that all parts are included referring to the above illustration. Make sure not to misplace any parts that are needed for the installation;
2. Install the bracket (2) into socket (1) into the steel shade (3), then secure them with thumb wheel (4), then secure them with thumb screws (5).
3. The fixture arm is adjustable. If needed, please loosen the thumb screw on the swivels a little and adjust the arms to your desired position, then tighten back the thumb screw.
4. Fixture is ready for lamping and installation.
