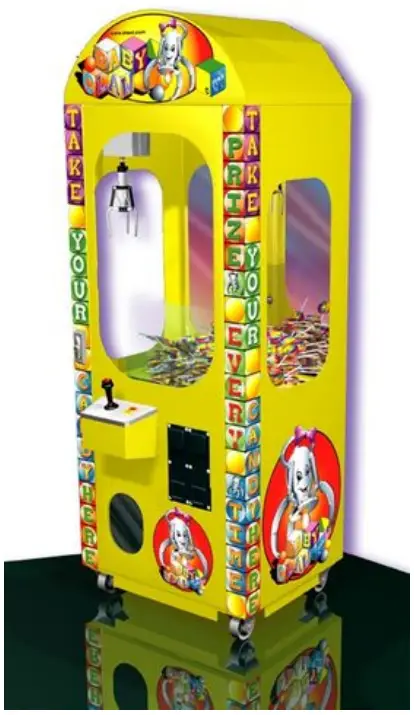

Elaut Baby Claw Machine Owner's Manual

4261.0622

Decal angle Baby Claw

4261.0620

Decal front top Baby Claw

4261.0621

Decal side panel Baby Claw

4251.0105

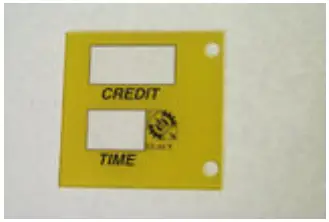

Plexi control intelligrab

4251.0106

Plexi filter intelligrab

4280.0011

Cashbox pvc mini-door

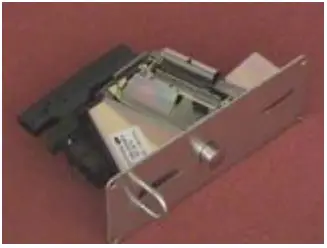

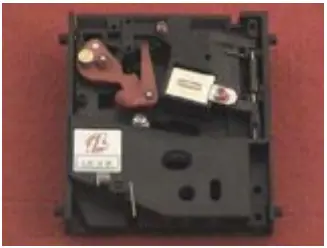

2710.0020

Coin mech WH – 0.5 euro mechanical

2710.0022

Coin mech WH – 1 euro mechanical

2720.0019

Coin mech s10 0.25 usd

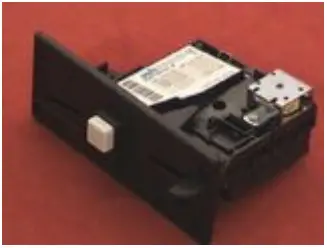

2745.0107

Coin mechanism WH – euro

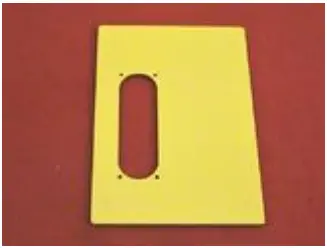

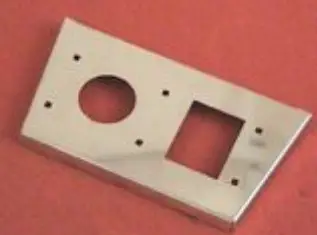

5212.0813

Coverplate WH Baby Claw

2120.1002

Connector block [screwless] 2p

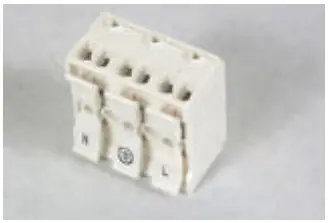

2120.1003

Connector block [screwless] 3p

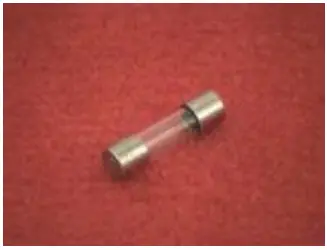

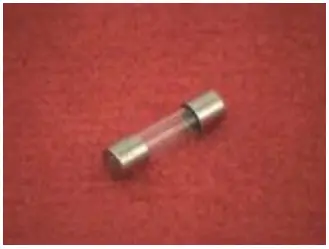

2312.0013

Fuse 5×20 1.25A T

2312.0025

Fuse 5×20 2.5A T

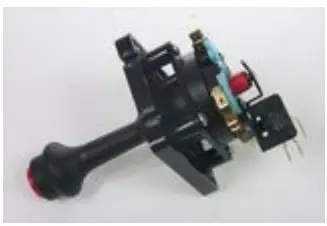

2150.0010

Joy-stick firebutton super

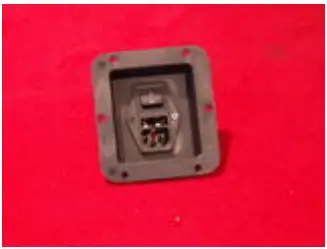

2000.3440

Mains entry complete fuse+switch

2150.0012

Mi.sw. + fixation fire button joystick

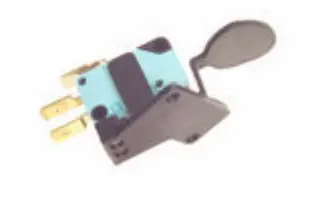

2155.0015

Micro switch pushbutton/joystick

2410.0201

Transfo ring core 80VA 24V 2×115

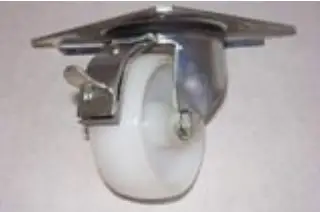

7030.0080

Castor frame turnable 5 holes with brake

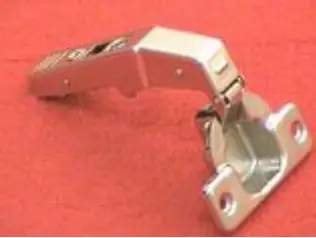

7021.7100

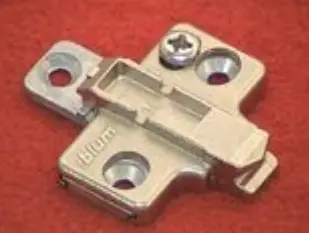

Hinge clip-top cross plate

7020.9550

Hinge clip-top/spring 79T9550

7010.0060

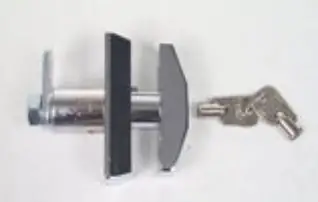

Lock t-handle chrome

5212.0808

Locklip t-lock Baby Claw

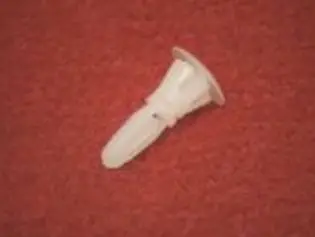

6820.0065

Pcb securing clip crlcbsr 4-01

2450.1120

Spring counter 12V 6 digits

5312.0801

Unit joystick Baby Claw

3500.2113

Bearing forward left

3500.2114

Bearing sidewards right

6890.5016

Bolt with turning knob M5x16

3500.0302

Brace plate/clamp [eurograb]

6820.0003

Cable clamp gantry

3500.0181

Cable holder nylon CH-2-01

3500.0180

Cableholder plastic

3500.0960

Claw adjustment washer

9036.4265

Claw assy complete small hp type s

9036.1265

Claw bottom part hp type ss

9036.2262

Claw upper part hp small

3500.0010

Drive belt 3mm

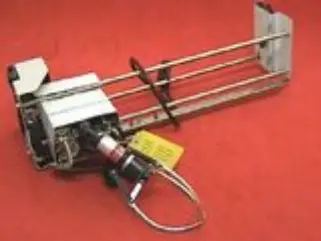

9235.5000

Gantry hp Good Luck

3500.0211

Gear wheel [motor 24V]

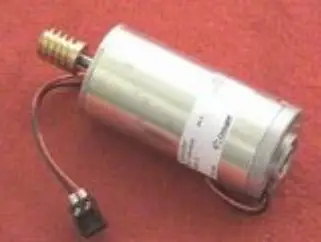

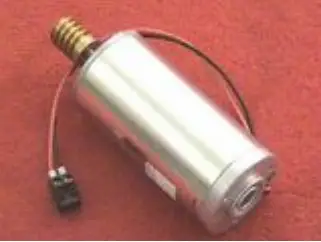

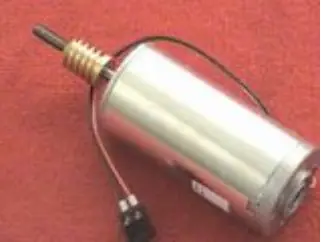

3500.0146

Motor 24V forwards

3500.0147

Motor 24V sidewards

3500.0148

Motor 24V up/down

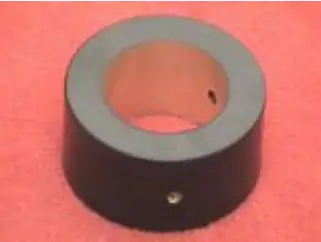

3500.0907

Reinforcement ring grab small

3500.0761

Spring lifter 27.5mm

3500.0269

Stop rod end 20mm black plastic

3500.0241

Stop rod spring 104mm

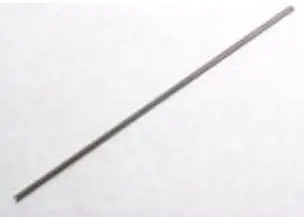

3500.0230

Stop rod stainless steel 140mm

3500.0580

String lead ertalon

3500.0540

String winder

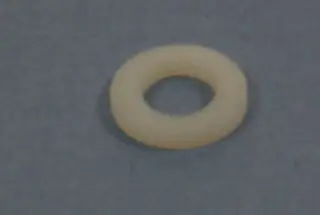

6088.0008

Washer polyethylene 8mm

3500.0030

Wheel big free

3500.0060

Wheel fixed big

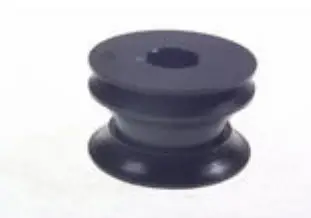

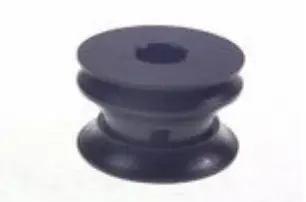

3500.0600

Wheel fixed small ertalon

3500.0190

Wheel free small

9060.2844

IR-detection 8 channels small

9002.0021

Pc board gantry-stop

9002.0031

Pc board grab-stop

9002.2581

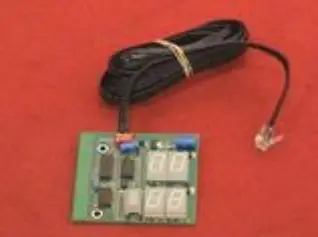

Pcb display intelli controller

9002.2561

Pcb power supply intelli mains

9002.2572

Pcb power supply vendi control

9090.0702

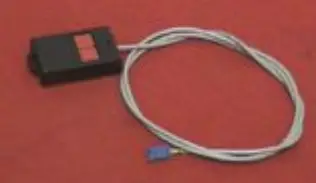

Programmer box vendi

9090.2161

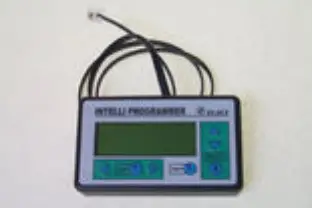

Unit intelli programmer

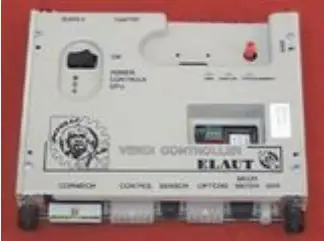

9236.0321

Unit vendi controller

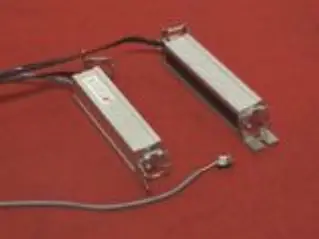

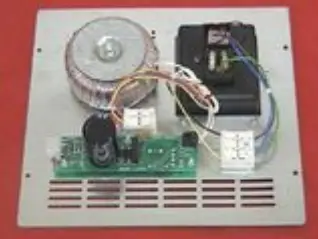

9239.0315

Unit vendi supply 115V 1-pl

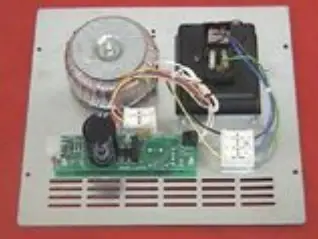

9239.0305

Unit vendi supply 230V 1-pl

9015.0223

Cable central plate – gantry GL

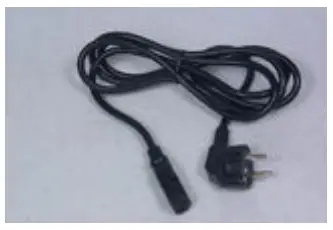

2540.0020

Lead 3×1 3M euro-app plug

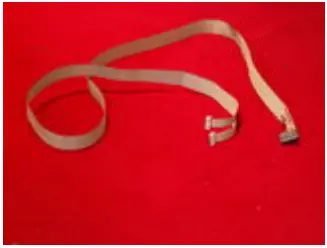

9015.0957

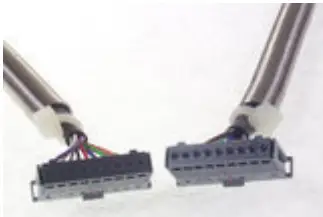

Loom intelli coin

9015.0908

Loom intelli coin 2x NRI/WH

9015.0973

Loom intelli coin 2x S10

9015.0950

Loom intelli gantry

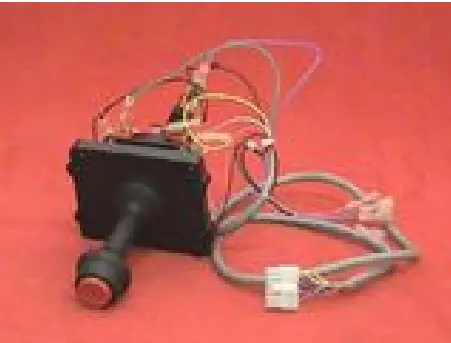

9090.0956

Unit loom intelli joystick
