Z-20211221S07B 26 in.
S07-C 750W

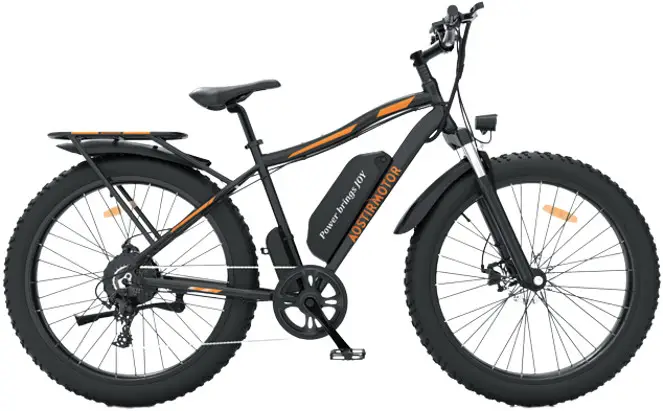

500-Watt Electric Bike Fat Tire P7
Instruction Manual
Display Use & Maintenance
SW-LCD display
OPEN: Mode/M 1.5 seconds long press.
CLOSE: In standby mode, long press Mode/M for 3 seconds
SETTING: After booting, press UP+DOWN for 2.5 seconds (exit in the same way)
The detailed settings are as follows: (on the boot state)
 | ||

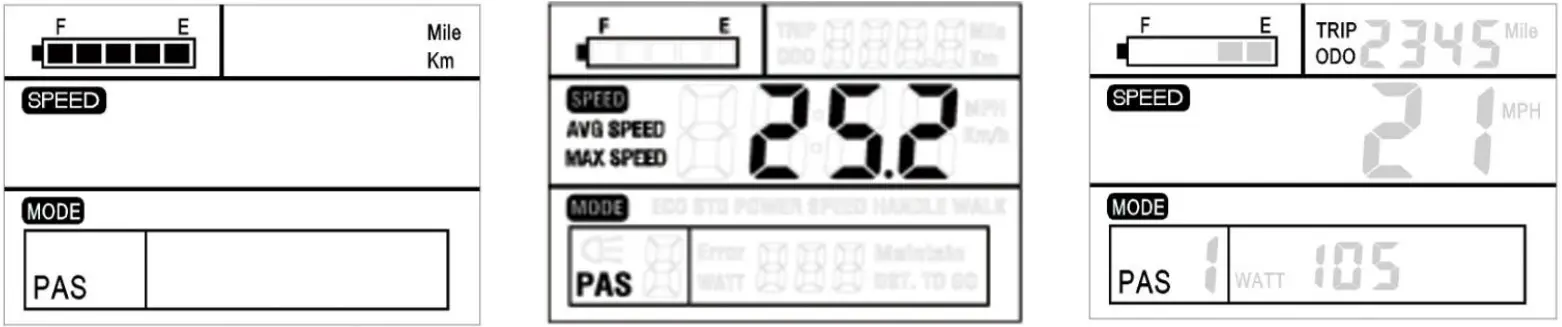

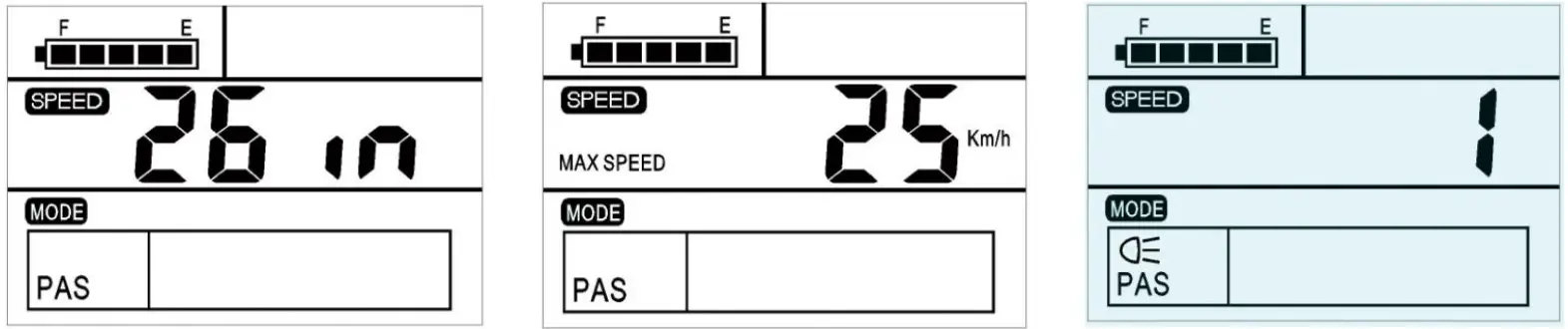

| Wheel Diameter Setting: 1. UP or DOWN 2. 16-28inch ( Default 26inch) 3. Select, Mode Confirm | Speed Setting: 1. UP or DOWN 2. 12-45 KM/H 3. Select, Mode Confirm | Light Setting: 1. UP or DOWN 2. 1-3 (Brightness) 3. Select, Mode Confirm |
 | ||
| MPH/KM Setting: 1. UP or DOWN 2. MPH or KM/H 3. Select, Mode Confirm | SPEED Setting: 1. UP or DOWN For 3 seconds 2. MAX/AVG/NOW 3. Select, Mode Confirm | RANGE Setting: 1. PRESS Mode/M 2. Riding mileage / accumulated total mileage |
 | ||

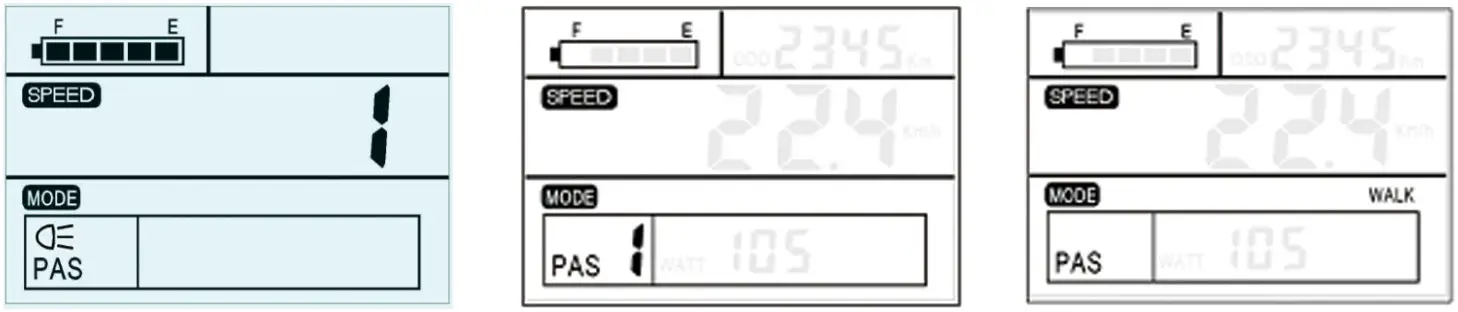

| Front Light Open: 1. Exit Settings 2. UP FOR 3 Seconds 3. Front lamp will work 4.Default: 1 | Power Shift Setting: 1. Exit Settings 2. UP/DOWN 3. 1-5 (Power) 4.Default: 1 | Cruise Mode Setting: 1. Exit Settings 2. PRESS DOWN FOR 3 Seconds 3. Default: 6KM/H 4. Pushing state, non riding |
- Ride your bike in a safe way. Don’t hit or knock the display.
- Keep away from the bad environments when use, such as downpour, large snow-flakes and solarization.
- Try not to use in under-voltage condition.
- The screen will gets dark along with the temperature reduction when temperature below -10°C. The screen will return to normal when the temperature rises again.

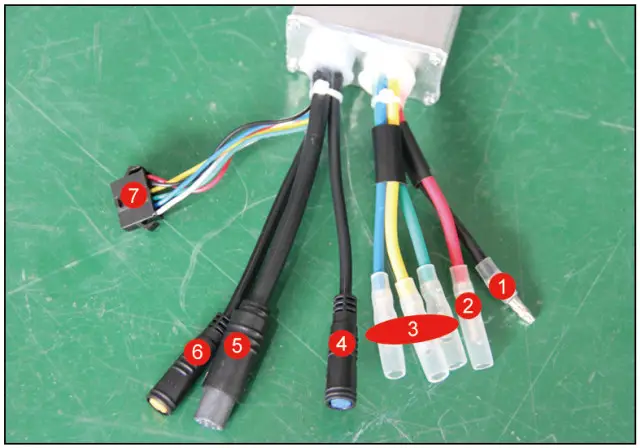

Controller Use & Maintenance
- Battery negative connection line
- Battery positive connection line
- Phase line – EROR 23
- Tail light wire
- Integrated main line
- Power sensor line
- Motor Hall plug wire
- Please be careful not to get water into the controller box
- When the bike does not work:
1)Check the connection of controller cables;
2) Try to restart or Replace the controller;
3)Contact us with email Motor Maintenance

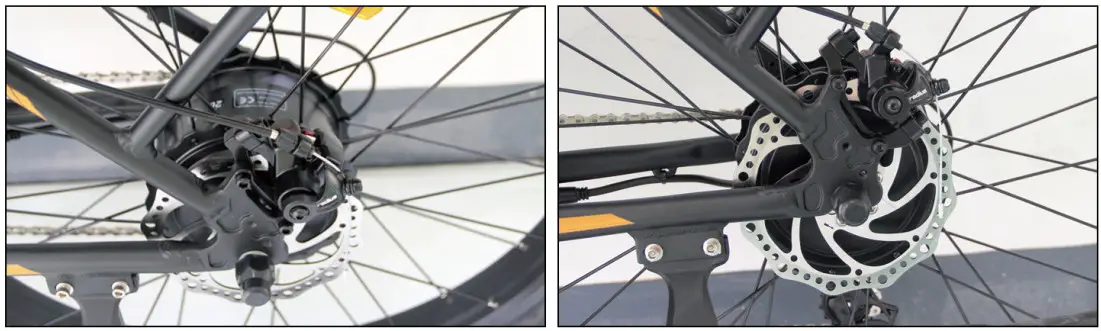

Motor Maintenance
- Please check the integrity of motor blocking piece regularly.
- Please check the integrity of cable before and after riding.
- Please check the integrity of motor shell before and after riding.
- Please do not use the motor in extreme environments, and do not let the motor work in water.
- When you find the motor power is insufficient, please get out of the bike and not force it.
FAQ
• Is there a power usage or battery gauge on the bike? Yes, there is a full screen LCD display. There is also an additional LED battery gauge on the side of the battery pack. 2x the info! • Is there a switch to prevent accidental starting? Yes, there is an on/off button on the battery pack. The brake levers also come standard with a safety power stop switch built in. • How do I lock it up and what can I do to help minimize the chance of it being stolen? AOSTIRMOTOR Bike has some great anti-theft features, including a locking battery rack with keys to keep bike safe, and rear wheel which is bolted down reduce the chances to be stolen. Most standard U-locks and cable locks work fine on our AOSTIRMOTOR Ebike. • Does it work in the rain? The components are all waterproof and work very well in wet conditions, But we do not suggest to use our ebike in a rain day. We suggest that you should keep your bike parked indoors and keep him in a dry situation.
