B0BR96M7XZ LED Solar Motion Light
Instructions
B0BR96M7XZ LED Solar Motion Light
Thank you very much for purchasing HAARAY’s LED solar outdoor light. Please read this “Instructions” carefully before use.

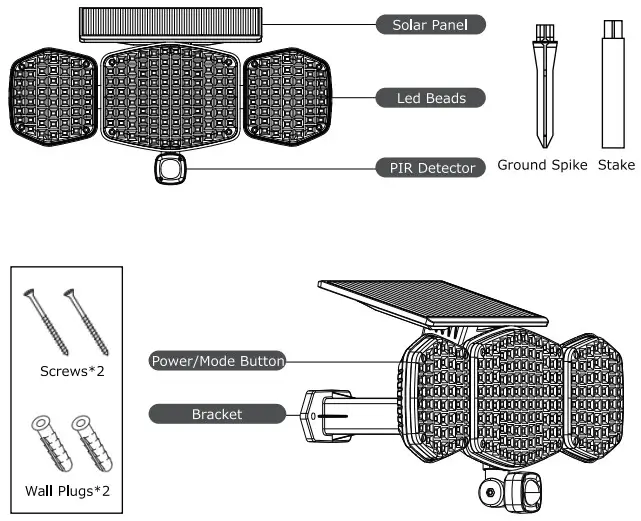

PACKING LIST
INSTALLATION
Wall Mount:
- Step1: Drill out the holes with a drill bit and put the plastic wall plugs into the holes.
- Step2: Secure the bracket to the wall with screws.
- Step3: Buckle the light onto the bracket.

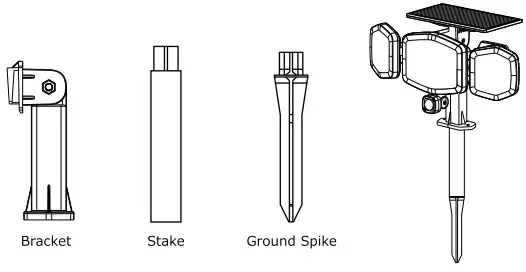

Stick in the Ground:
- Step1: Assemble the bracket, ground spike and stake together.
- Step2: Insert the stake into the ground.
- Step3: Buckle the light onto the bracket.
HOW TO USE
When you receive the product, the default mode of the light is OFF, please select the mode you want through the power/mode button on the back of the light to be able to use it properly.
OFF *Default mode
Mode 1: From night to power runs out. dawn, the light automatically turns on at 50% brightness until the power runs out.
Working State
Mode 2: Turn on the s seconds when rung light when motion is detected, and turn to dim light after 20 people leave.
Working State
Mode 3: Turn on the s when people rang light when motion is detected and turn off after 20 seconds leave.
Working State
WARM TIPS
- Please make sure the spot light is installed under direct sunlight where there is no shade or eave to shelter the solar panel.
- Please put the light under direct sunlight for 1-2 days to charge before the first use.
- When the solar panel is illuminated, the light will be off! Also, when charging the solar panel, the light will not work.
- In winter, it is normal to not get enough energy from the sunlight, so the brightness is usually lower and the working time at night is shorter.
- Please clean the solar panel regularly to ensure the efficiency of charging.
PRODUCT SPECIFICATION
| Solar Motion Light | |||
| Battery Type | 18650 Lithium-ion | ||
| Detection Distance | 16-26ft | ||
| Charging Time | About 8 hours | ||
| Size | 11.2″5.7*4.7in | ||
| Net Weight | 1.5Ib/pcs | ||
| Material | ABS+PC | ||
| Waterproof Rating | IP65 | ||
| Lumen | 1200 | ||
| Mounting Height | 6-8ft | ||
| Ambient temperature | Charge: 0 – 45 C Discharge: -10 – 60 C | ||
| Power Source | Solar Powered | ||
| Battery | |||
| Battery capacity | 2200mAh | ||
| Voltage | 3.7v | ||
| Lifetime | > 500 times | ||
| LED | |||
| Light Color | white | ||
| Color temperature | 6500 – 7000K | ||
| Quantity | 208 | ||
| Lifetime | >50000h | ||
SAFETY PRECAUTIONS
- If you find the battery has bad smell, heat or deformation, please turn the power mode to OFF and stop using it and contact us.
- It can resist ordinary rain and wind, but please do not let the product soak in water.
- Please do not look directly at the LED light when lighting up. There is a risk of eye injury.
- The sensitivity of the sensor cannot be adjusted, and the sensitivity of the sensor may change depending on the environment in which it is used.
FAULT CAUSE ANALYSIS
| Issue | possible cause | Solution |
| The light didn’t turn off | The angle and height of the PIR detector are not within the sensing range. | Try to adjust the angle of the sensor ball so that it is within the height and range of motion sensing. |
| The light stays on during the day | The location is dark. | Please change the Installation to a brighter place than the current location. |
| The light is not working | The switch is OFF. | Press the light mode switch (1, 2 or 3 times). |
| The solar panel is surrounded by other light sources. | Block/change the location of the solar panel. | |
| After purchase, does not charge. | Charging for more than two days in fine weather and more than four days in cloudy weather. Please start using it. | |
| Not used for a longtime. | Please charge it once a month. | |
| Insufficient power. | Change the angle and location of the solar panel. Please make sure the sunlight hits efficiently. | |
| The solar panel is dirty. | Clean the solar panel. | |
| Battery break/inside request. | Please contact the seller. | |
| Others issues | Mode reset, Blinking | Please contact the seller. |
PRECAUTIONS FOR MAINTENANCE
- Do not apply strong impact to the product body such as dropping or striking.
- When not used for a long time, turn OFF the light, and remove the light from its installation location.
