Cable Manager for 2 or 4 Post Racks: CMQ-10

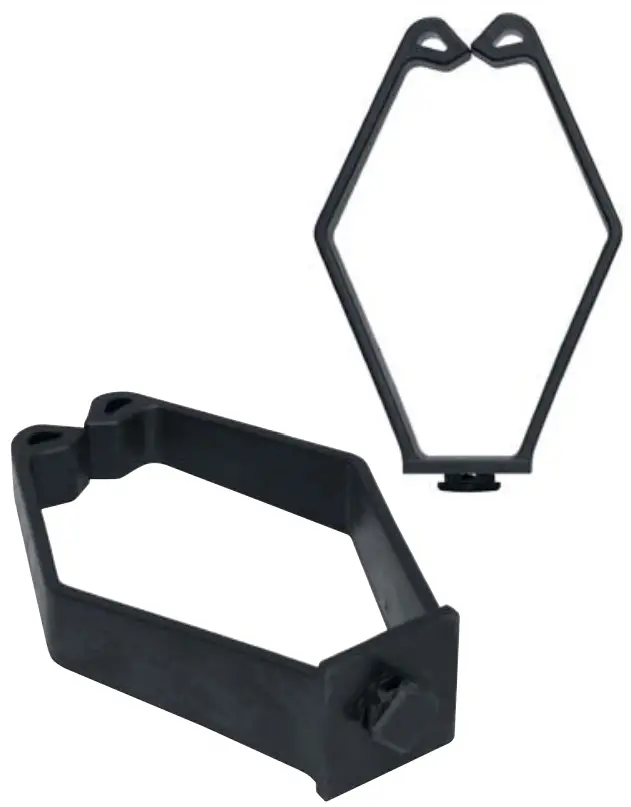

SQM-10 Cable Manager for 2 or 4 Post Racks
Quick-install cable managers are designed to stabilize and secure medium to large cable bundles in Lowell two-post (CR2 and NR2 Series) and four-post (NR4 Series) racks. The plastic square fits in a matching rack hole and with just a quarter-turn (left or right) it’s positioned to secure vertical or horizontal cable runs. Pack of 10.
FEATURES
- Construction: Heavy-duty molded nylon plastic
- Dimensions: 4.71″H x 2.88″W x 1.26″D
- Opening: 3.8″ x 2.6″
- Hardware: None required
- Quantity: 10 pack
- Origin: Made in the USA
A&E SPECIFICATIONS:
The quick-install cable managers shall be Lowell Model CMQ-10, and shall be formed from heavy-duty nylon plastic to stabilize and secure medium to large cable bundles. One shall measure 4.71″H x 2.88″W with an overall cable opening of 3.8″H x 2.6″W. Pack of 10.
INSTALLATION:

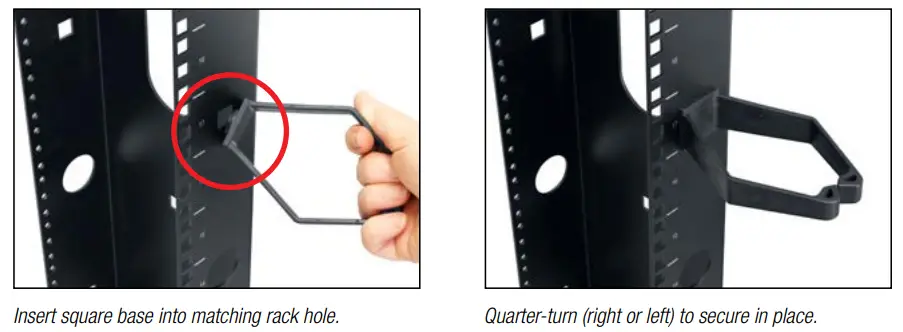

INSTALLATION:Insert the plastic square base into a matching rack hole and give a quarter-turn (left or right) to secure it in place for a vertical or horizontal cable run. No tools are necessary.
MODEL SUMMARY
Model No. CMQ-10
Description: Quick-install cable managers for Lowell 2 or 4 post racks, 10 pk.
Overall Dimensions: 4.71 x 2.88 x 1.26
Opening Dimensions: 3.8 x 2.6

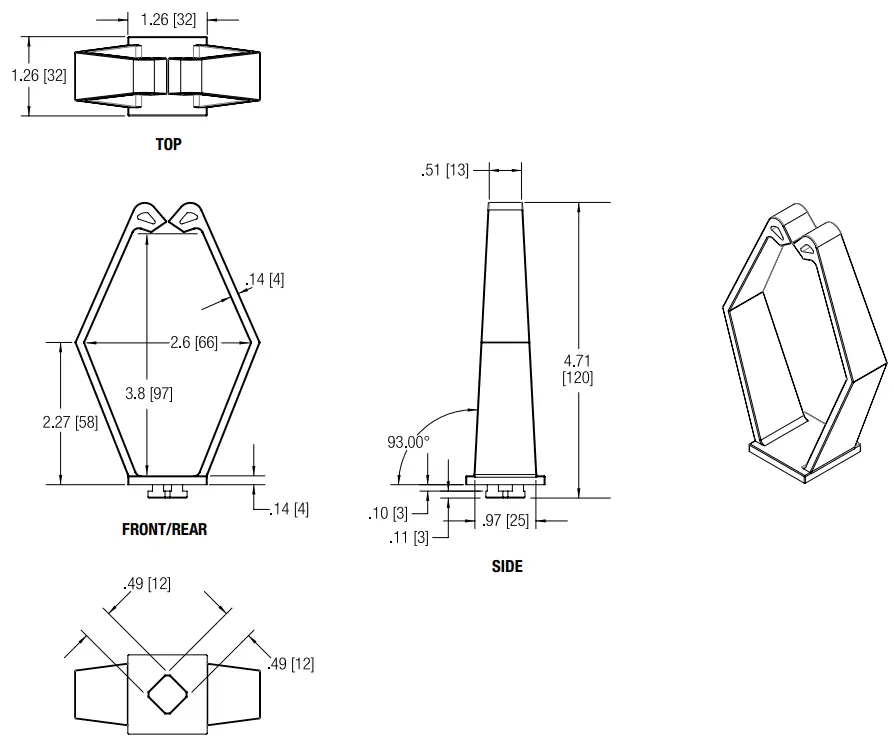

TECHNICAL DRAWINGS
Dimensions are inches and [mm] unless stated otherwise.
Lowell strives to provide accurate information while reserving the right to change specifications and/or improve manufacturing methods without prior notification.
©2022 Lowell Manufacturing Co., 100 Integram Dr., Pacific MO 63069 / tel. 800.325.9660 / www.lowellmfg.com
