Paslode PPN50Xi Anchor Nail Device

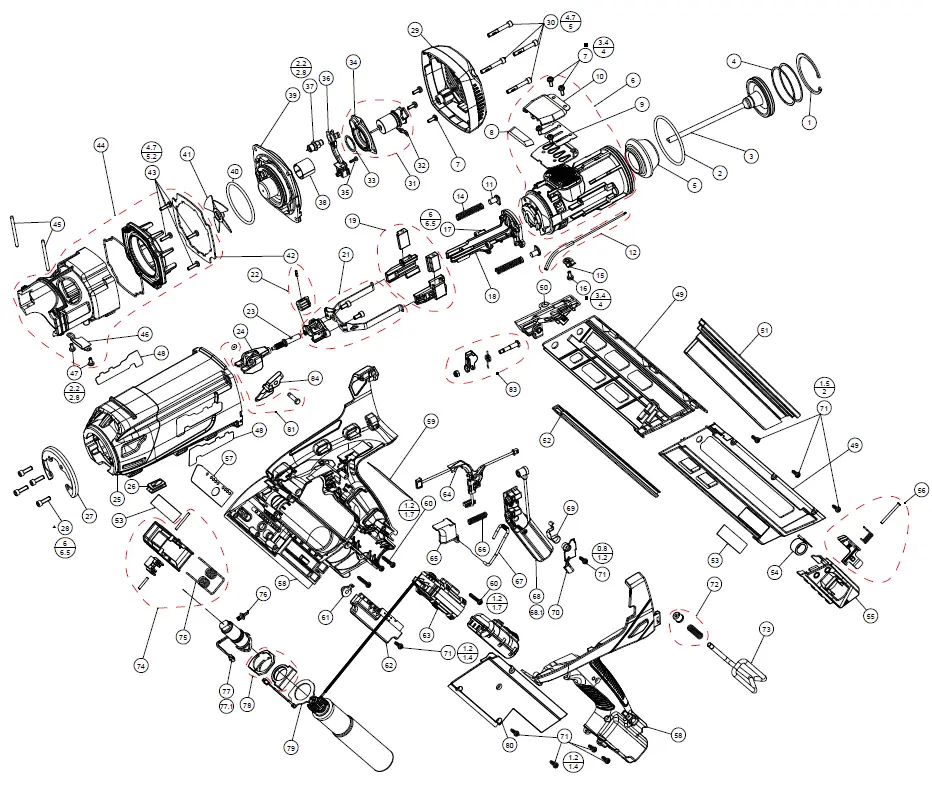

PART LEGEND
| REP | CODE | QUANTITY | DESCRIPTION |
| 1 | 336680 | 1 | RETAINER RING |
| 2 | 013743 | 1 | CYLINDER O’RING |
| 3 | 014386 | 1 | PISTON ASSEMBLY |
| 4 | 336670 | 2 | PISTON RING |
| 5 | 013778 | 1 | BUMPER |
| 6 | 019292 | 1 | CYLINDER ASSEMBLY |
| 7 | 900596 | 5 | SCREW SWAGE FORM 4-11 |
| 8 | 336570 | 1 | MUFFLER |
| 9 | 336560 | 1 | REED VALVE |
| 10 | 336580 | 1 | MUFFLER COVER |
| 11 | 019283 | 1 | COMBUSTION CHAMBER SPRING GUIDE |
| 12 | 013737 | 1 | INJECTION PIPE ASSEMBLY |
| 14 | 019276 | 2 | COMBUSTION CHAMBER SPRING GUIDE |
| 15 | 013738 | 1 | BRACKET FUEL LINE |
| 16 | 900595 | 1 | SCREW SWAGE FORM 4-9 |
| 17 | 019819 | 2 | SCREW TORX 25 M5-12 |
| 18 | 019706 | 1 | NOSE |
| 19 | 019289 | 1 | COMBUSTION CHAMBER BUMPER ASS. |
| 21 | 019402 | 1 | UPPER PROBE ASSEMBLY |
| 22 | 019295 | 1 | KNOB |
| 23 | 019735 | 1 | PROBE AXIS |
| 24 | 019701 | 1 | PROBE |
| 25 | 019702 | 1 | CARTER |
| 26 | 013812 | 1 | ELECTROVALVE HEAT PROTECTION |
| 27 | 013787 | 1 | NOSE PROTECTION |
| 28 | 013813 | 4 | SCREW CHC M5-16 |
| 29 | 019121 | 1 | CAP |
| 30 | 013797 | 4 | SCREW CHC M5-35 |
| 31 | 019077 | 1 | MOTOR ASSEMBLY |
| 32 | 014771 | 1 | FAN MOTOR GROUND WIRE |
| 33 | 321610 | 1 | RETAINING RING |
| 34 | 334310 | 1 | MOTOR MOUNT |
| 35 | 404702 | 1 | SCREW THREAD FORMING 6X3/8 |
| 36 | 013808 | 1 | WIRES GUIDE |
| 37 | 013731 | 1 | SPARK PLUG ASSEMBLY |
| 38 | 321590 | 1 | MOTOR SLEEVE |
| 39 | 013740 | 1 | CYLINDER HEAD |
| 40 | 321650 | 1 | CYLINDER O’RING |
| 41 | 321660 | 1 | FAN BLADE ASSEMBLY |
| 42 | 013750 | 1 | SEAL |
| 43 | 900456 | 4 | SCREW SWAGE FORM 4-15 |
| 44 | 019288 | 1 | COMBUSTION CHAMBER ASSEMBLY |
| 45 | 013781 | 2 | COMBUSTION CHAMBER STOP PIN |
| 46 | 019073 | 1 | COMBUSTION CHAMBER LOCK OUT |
| 47 | 013805 | 2 | SCREW TAP TYPE 4X8 |
| 48 | 015000 | 2 | CARTER LABEL |
| 49 | 019703 | 1 | MAGAZINE ASSEMBLY (LEFT & RIGHT ) |
| 50 | 013741 | 1 | SHEAR BLOCK |
| 51 | 013763 | 1 | NAIL CHANNEL |
| 52 | 019280 | 1 | COVER PLATE MAGAZINE |
| 53 | 019787 | 2 | NAME TOOL LABEL |
| 54 | 013767 | 1 | MAGAZINE SPRING |
| 55 | 019279 | 1 | FOLLOWER ASSEMBLY |
| 56 | 014399 | 1 | FOLLOWER SUB ASSEMBLY |
| 57 | 014999 | 1 | LEVELS LABEL |
| 58 | 019297 | 1 | HANDLES ASSEMBLY (LEFT & RIGHT ) |
| 59 | 019787 | 1 | NAME PLATE LABEL |
| 60 | 013799 | 4 | SCREW ECO-SYN TORX 4X25 |
| 61 | 019089 | 1 | POWER BUTTON |
| 62 | 019091 | 1 | DEL ASSEMBLY |
| 63 | 019273 | 1 | BATTERY TERMINAL ASSEMBLY |
| 64 | 019286 | 1 | WIRES ASSEMBLY |
| 65 | 019119 | 1 | TRIGGER |
| 66 | 013783 | 1 | TRIGGER SPRING |
| 67 | 019084 | 1 | COMBUSTION CHAMBER LOCK BAR |
| 68 | 019096 | 1 | RED S-MEFI |
| 68-1 | 019097 | 1 | BLACK S-MEFI |
| 69 | 013734 | 1 | CONTACT LEVEL |
| 70 | 013785 | 1 | CONTACTOR PLATE |
| 71 | 013798 | 9 | SCREW ECO-SYN TORX 4X12 |
| 72 | 019290 | 1 | HOOK SPRING ASSEMBLY |
| 73 | 019284 | 1 | HOOK |
| 74 | 019293 | 1 | LOCK MAGAZINE SYSTEM |
| 75 | 019285 | 1 | SPRING LOCK MAGAZINE SYSTEM |
| 76 | 013739 | 1 | ELECTROVALVE PLUG CONNECTION |
| 77 | 019116 | 1 | RED ELECTROVALVE ASSEMBLY |
| 77-1 | 019117 | 1 | BLACK ELECTROVALVE ASSEMBLY |
| 78 | 019088 | 1 | EJECT BUTTON ASSEMBLY |
| 79 | 019282 | 1 | ANTENNA |
| 80 | 019281 | 1 | HANDLE COVER |
| 81 | 019298 | 1 | PROBE PIN AXIS |
| 83 | 014407 | 1 | GUIDE ASSEMBLY |
| 84 | 501241 | 1 | PROBE LATCH |

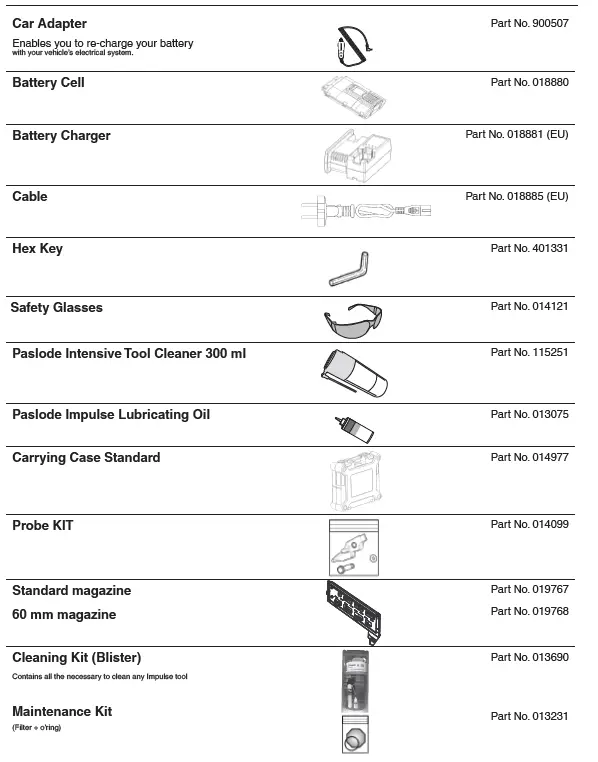

ACCESSORIES
