Givenergy App User Guide

GivEnergy App User Guide

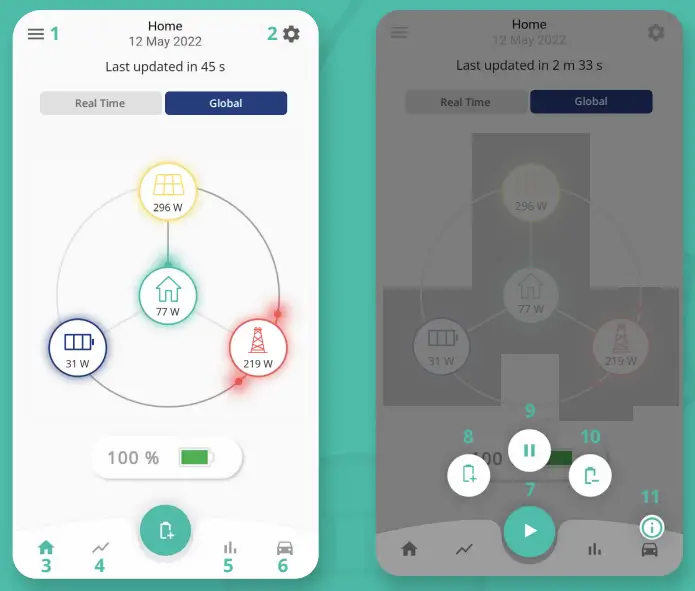

App Buttons

1. Menu
   Account and preferences
2. Settings
   Your battery settings
3. Home
   Return to home screen
4. Power Graph
   Power overview
5. Energy Graph
   Energy overview
6. EV Charger
   EV charger overview and settings
7. Play
   Resumes battery normal function
8. Battery Charge
   Force charges the battery at full power
9. Battery Pause
   Force the battery to pause
10. Battery Discharge
    Force discharge the battery at full power
11. Information
    Your in-app reminder of button features

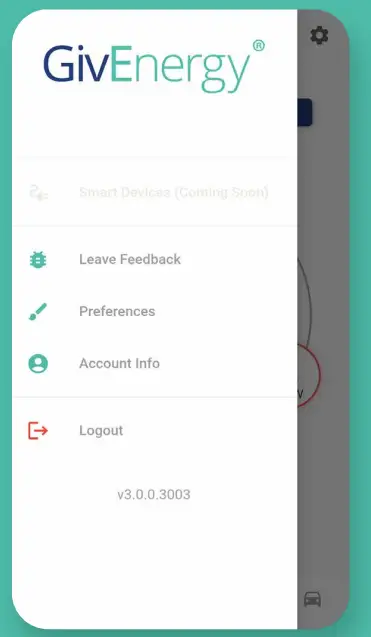

General Menu

Menu Overview
Account settings and preferences

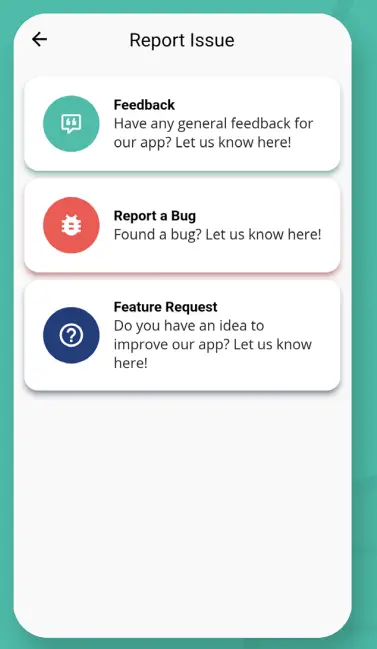

Feedback
Leave feedback, report an issue, or suggest a new feature

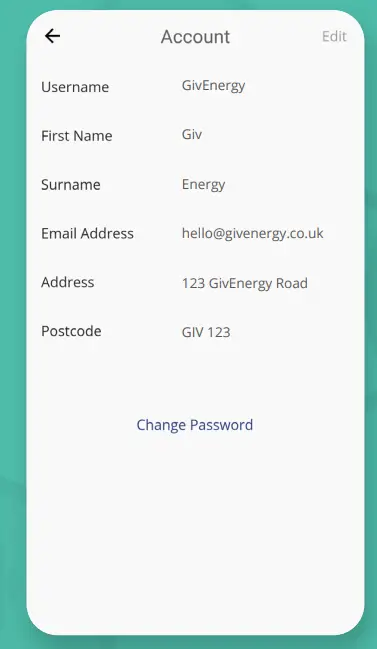

Account
View and edit your account details and password

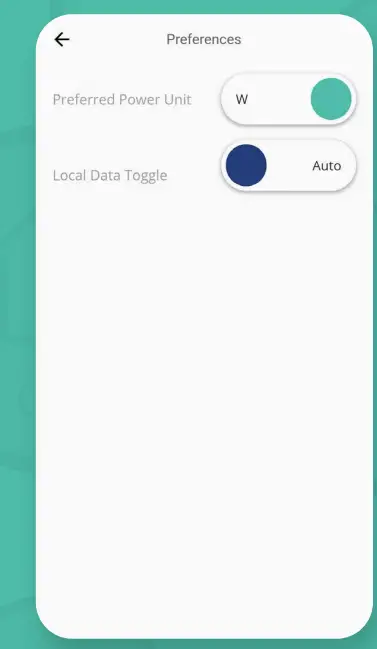

Preferences
Switch between watts and kilowatts. Allowing auto discovery for local connection or allowing IP address to be added.

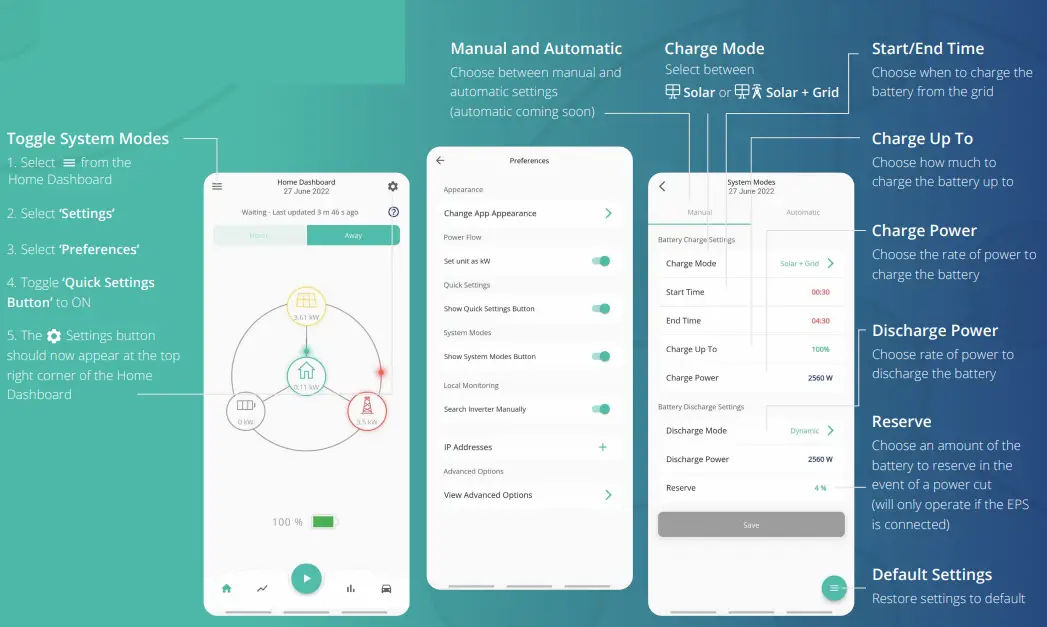

Battery Settings

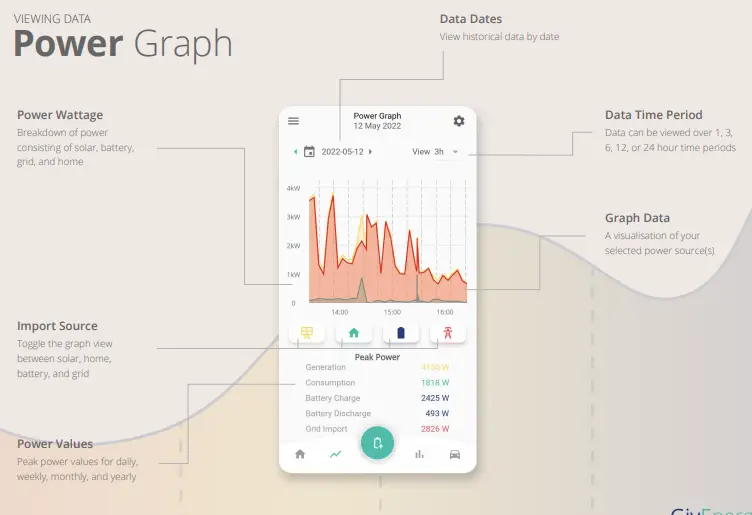

Power Graph

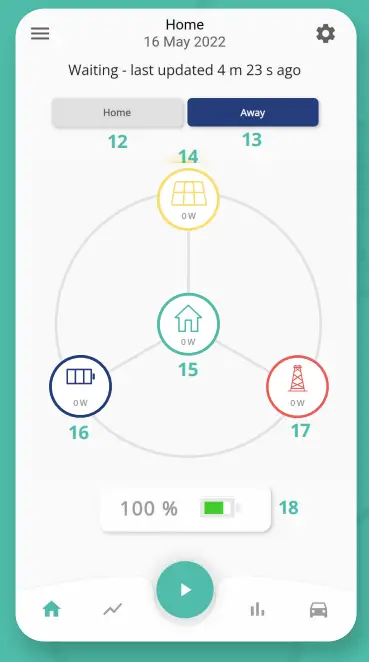

GivEnergy Dashboard

1. Home
   Local connection (data refreshes every 10 to 15 seconds)
2. Away
   Server connection (data refreshes every 5 minutes)
3. Solar
   Shows current solar power (tap on the icon to view the solar energy today)
4. House
   Shows consumed load power (tap the icon to view the consumed energy today
5. Battery
   Shows current battery power (tap on the icon to view battery charge and discharge today.
6. Grid
   Shows current grid power (tap on the icon to view import and export energy today)
7. Battery
   Shows indepth statistics around the battery percentage and power.

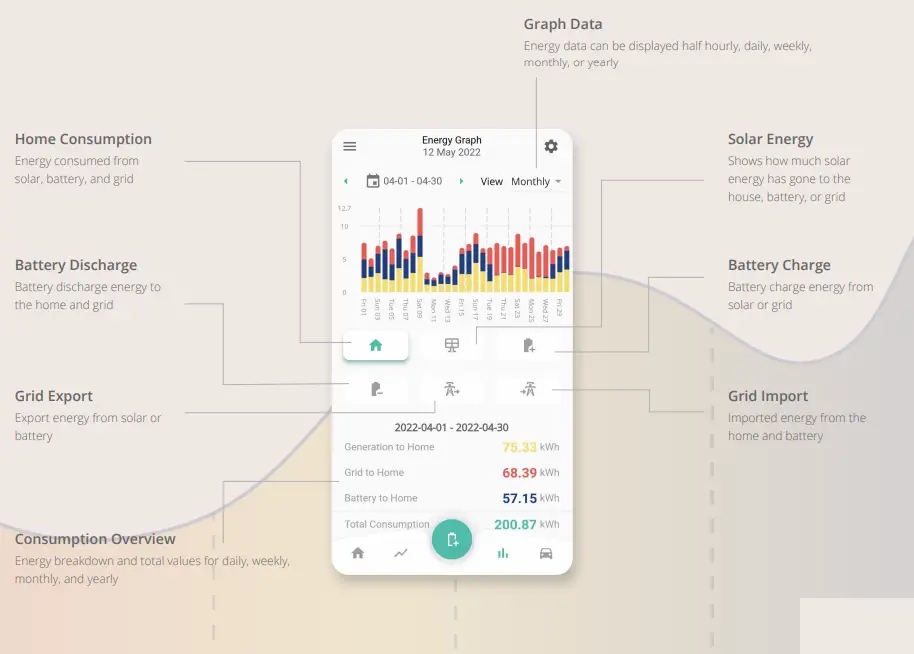

Energy Graph

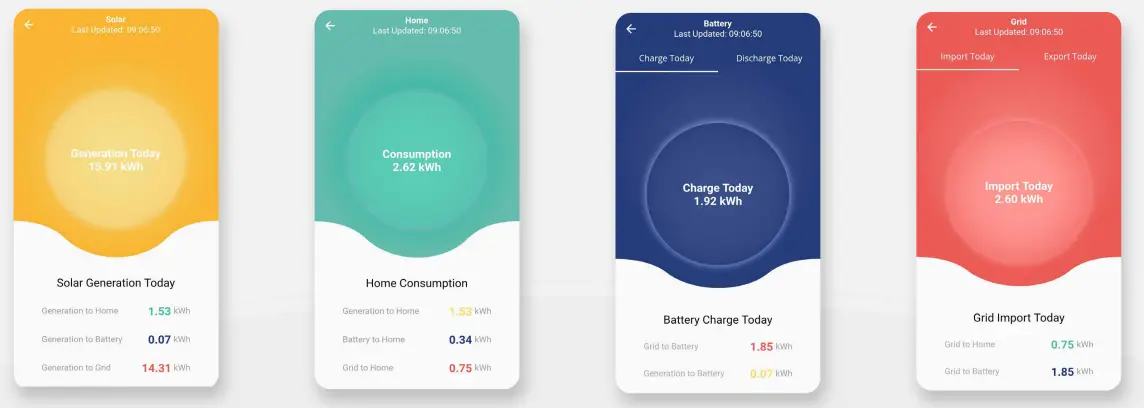

Energy Consumption

Consumption Overviews
View your daily consumption total figures for different inputs

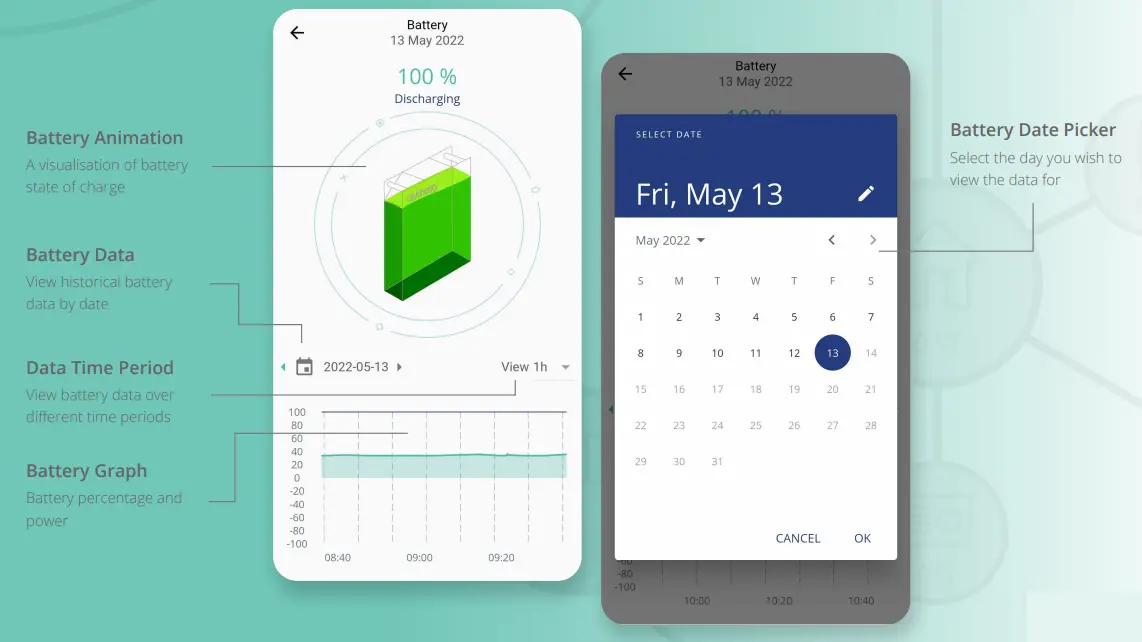

Battery Dashboard

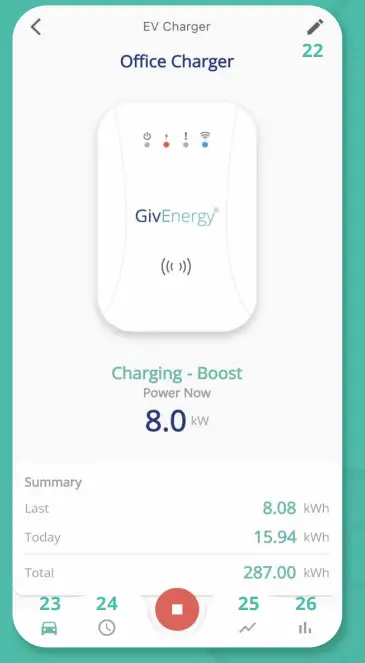

Dashboard

1. Edit Charger Name
   Change the name of your EV Charger
2.  EV Charger
   EV Charger dashboard
3.   Modes, Settings, and Schedule
   Alter your EV Charger mode and charge times
4. EV Power Graph
   View your EV Charger power data
5. EV Energy Graph
   View your EV Charger energy input data

Modes and Schedule

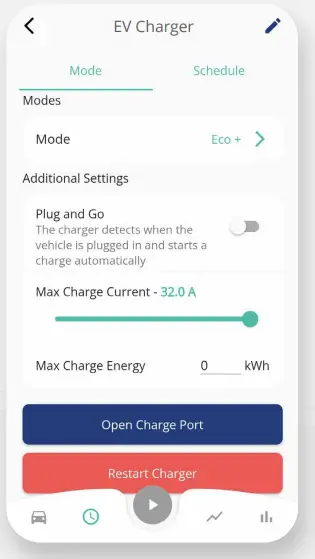

EV Charger Modes

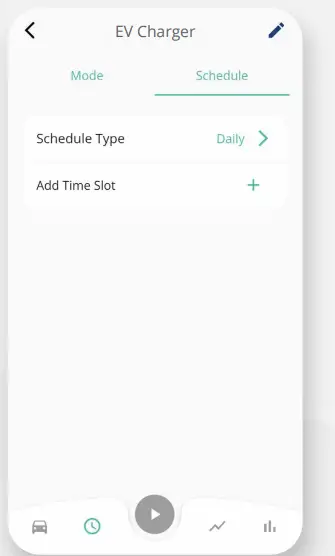

EV Charger Schedule

Eco
The vehicle will charge from excess solar only at a minimum of 6A (1.4kW)
Eco +
The vehicle will charge at a minimum of 6A (1.4kW) from a combination of excess solar and grid power. If excess solar exceeds 6A (1.4kW), this will be diverted into the EV.
 Boost
The vehicle will charge from a combination of solar and grid up to the “Max Current” limit Slider (A)
Inverter Control
The vehicle will charge based upon instruction that it has been given by the GivEnergy Inverter.

Graph Data

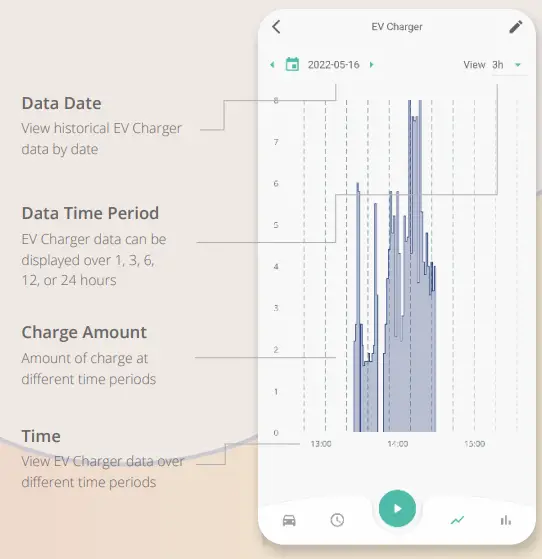

EV Charger Power Data

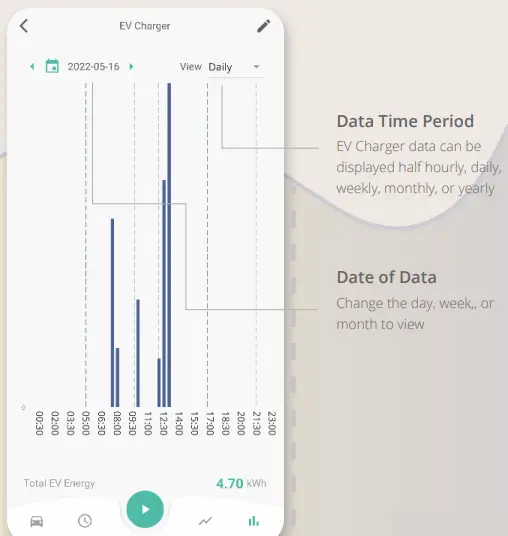

EV Charger Energy Data
