WALTHER HLC1r Headlamp Instruction

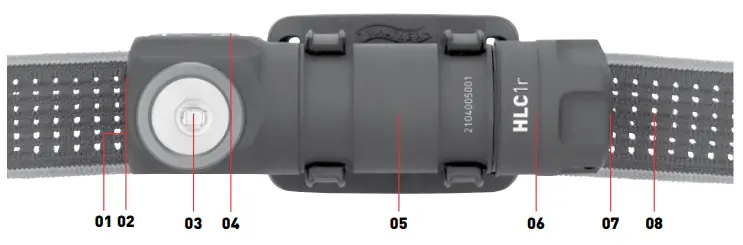

Overview
- Mode Switch
- USB Port
- White LED
- Red LED
- Battery compartment
- Screw cap
- Power Switch
- Head Strap
Technical data
| MODE | White LED Red LED Turbo | High | Medium | Low High | Low | Beacon |
| MAIN LED / AUX LED | Luminus SST40 / Red LED |
| COLOUR TEMPERATURE | 5.000 k |
| BATTERY | 18350 Li-Ion 3,7 V / CR123 Lithium 3,0 V / 16340 Li-Ion 3,7 V |
| MAX. BEAM RANGE | 100 m |
| PROTECTION LEVEL | IPX6 / 1,5 m |
| LENGTH | 91 mm |
| DIAMETER (HEAD/HOUSING) | 29 / 27 mm |
| WEIGHT | 115 g |
| USB PORT | Typ C |
WHITE LIGHT
 | MODE |  |  | |
| 1 x 18350 | Turbo | 500 | 1h | |
| High | 150 | 2h | ||
| Medium | 40 | 6h | ||
| Low | 5 | 38h | ||
| Beacon | 500 | 90h | ||
| RED LIG | ||||
| MODE |  | | ||
| High | 25 | 1h | ||
| Low | 1 | 45h | ||
| MODE | | |
| 1 x CR123 | Turbo | 350 | 1,5h |
| High | 110 | 2,5h | |
| Medium | 30 | 8h | |
| Low | 5 | 72h | |
| Beacon | 350 | 95h | |
| MODE | | | |
| High | 25 | 1,2h | |
| Low | 1 | 60h | |
| MODE | | |
| 1 x 16340 | Turbo | 450 | 0,5h |
| High | 140 | 1,5h | |
| Medium | 35 | 4h | |
| Low | 5 | 37h | |
| Beacon | 450 | 65h | |
| MODE | | | |
| High | 25 | 1h | |
| Low | 1 | 30h | |
These are measurement values that were determined in a laboratory and are subject to natural tolerances that depend on various other conditions (e.g. temperature, battery type).

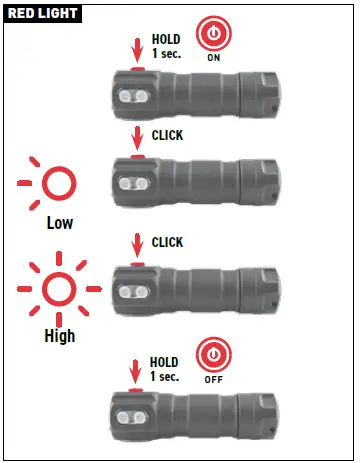

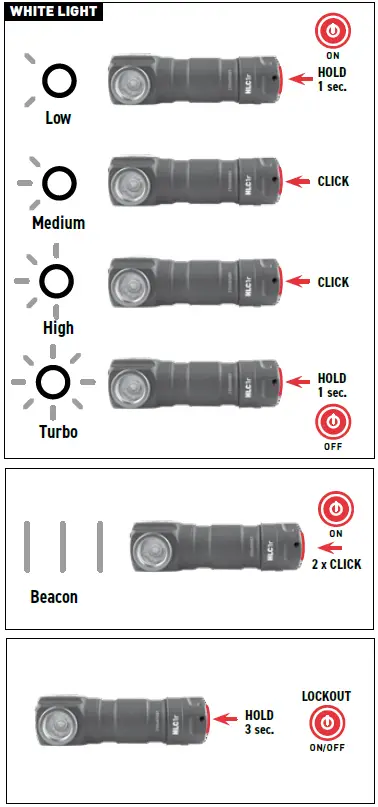

Operation
Starting with previously used brightness level

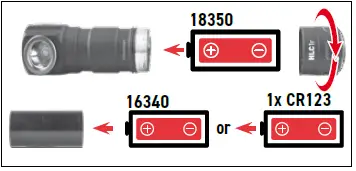

Changing the batteries
Charging

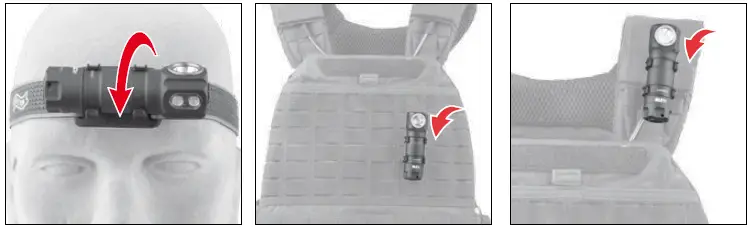

Headstrap
We reserve the right to make color and design changes and technical improvements. No responsibility is accepted for printing errors or incorrect information.
UMAREX GMBH & CO. KG
Donnerfeld 2 ∙ 59757 Arnsberg ∙ Germany
[email protected]
www.umarex.de
