Q-RM9012 Remote Paging Microphone with Power Supply
User Manual
Q-RM9012 Remote Paging Microphone with Power Supply
Low-cost solution for paging to a maximum of 12 speaker zones with a user-friendly remote microphone.

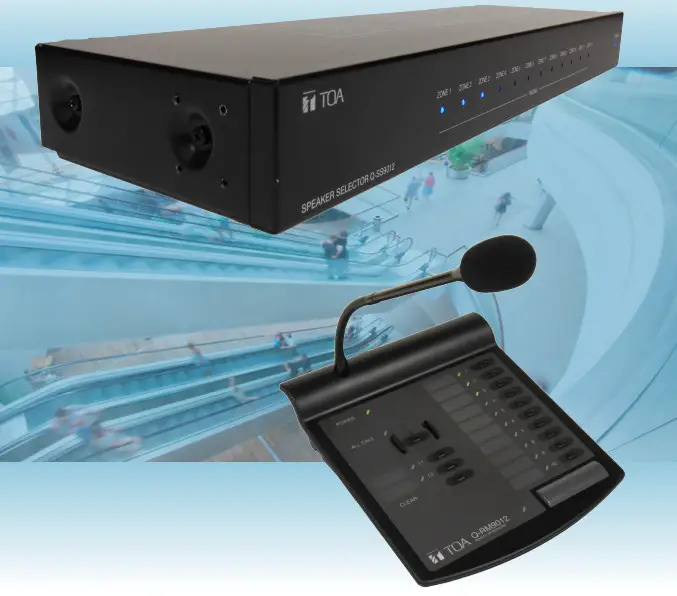

The cost-effective Multi-Zone Paging System is achieved with TOA’s zone selectable remote paging microphone and speaker line selector.
TOA’s multi zone paging system allows paging up to12 zones, utilizing a single channel amplifier by activating the speaker line selector from the desktop remote microphone.
No More Multi Channel Amplifier for Multi-Zone Paging System
The Q-SS9012 Multi-Zone Speaker Selector has 2 amplifier inputs and 12 individual relay switches to select the amplifier connected to each 12 speaker line/zone. This allows up to 12 zones for paging and BGM distribution with a dual channel amplifier or simple paging system with only a one channel amplifier.
TOA’s new concept offers a real cost effective multi-zone paging system.
REMOTE PAGING MICROPHONE
FEATURES
- Announcement to the selected zones out of a maximum of 12 zones
- Paging zones may be selected individually or in groups
- An All-call Button for selecting all zones
- A Clear Button for clearing all zone selections
- LED indicator for each selector

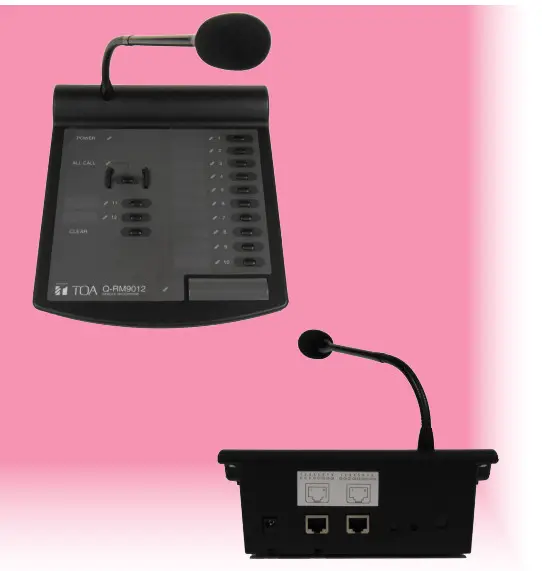

- Unidirectional electret condenser microphone with balanced audio output
- All connections to amp/speaker selector via shielded CAT5 cable
- AD-246 Power Supply not included
MULTI-ZONE SPEAKER SELECTOR
FEATURES
- 12 contact inputs and 12 speaker outputs. Power amp input is split into 12 zones with activation via contact closure
- Can facilitate paging over BGM by switching between BGM output (amp input 2) and Page output (amp input 1)
- LED indicator for each selector
- 19” rack-mountable (using optional MB-15B)
- AD-246 Power Supply not included
| Specifications | Q-RM9012PS Remote Paging Microphone |
| Power Source | 24 V DC from AC adaptor AD-246 or equivalent |
| Power Consumption | 80mA or less |
| Audio Output | 0 dB, 600 Ohms, transformer balanced, RJ45 connector |
| Distortion | 1% or less |
| Frequency Response | 100 – 20,000Hz |
| S/N Ratio | 60dB or more |
| Microphone | Unidirectional electret condenser microphone |
| Control Output | 12 channels, open collector output, withstand voltage: 27V DC, control current: max. 50 mA, (2) RJ45 connectors |
| Number of Keys | 12 zone selection keys, All call key, Cancel key, Talk key |
| Volume Control | Microphone volume control |
| Operating Temperature | -10C to + 40C (14F to 104F) |
| Finish | ABS resin, Black |
| Dimensions | 190 W x 76.5 H X 215 D mm (Gooseneck microphone excluded) |
| Weight | 750g |
| Optional Adaptor | AC Adaptor: AD-246 |
| Specifications | Q-SS9012PS Multi-Zone Speaker Selector |
| Power Source | 24 V DC from AC adaptor AD-246 or equivalent |
| Power Consumption | 400mA or less |
| Power Handling | 250W or less (70V/100V line) per channel (IN1, IN2) |
| Control Input | 12 channels, dry (no voltage) contact closures, open voltage: 3.3V DC, short-circut current: under 1 mA, removable terminal block (24 pins) |
| Speaker Terminal | Removable Terminal Block (2 pins, IN1, IN2, Zone1 – 12) |
| Control Terminal | Removable Terminal Block (24 pins_ |
| Operating Temperature | -10C to +40C (14F to 104F) |
| Finish | Case: Surface-treated steel plate, Black |
| Dimensions | 420 W x 44 H x 123 D mm |
| Weight | 1.6kg |
| Accessory | Removable Terminal plug (2pins) Removable Terminal Plug (12 pins) Removable Terminal Plug (14 pins) |
| Optional adaptor | AC adaptor: AD-246 |
| Options | Rack mount bracket: MB-15B, Wall mount bracket: YC-850 |
